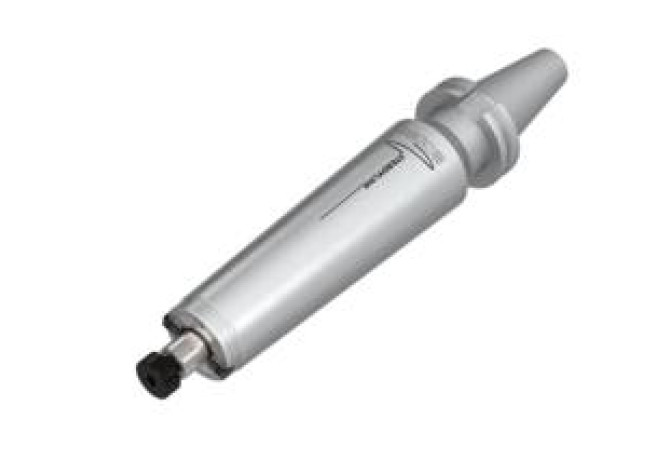

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric E25025556075900

E25025556075900

E25025556075900 E25025556075900 E25025556075900 E25025556075900

E25025556075900

Seco
Артикул: 02675794
В наличии
В корзину
Описание
Характеристики
BD Body diameter
59.69 mm
BLQ Balance quality code
PB
CCFWS Connection code form
02
CCSWS Connection code style
0
CCTWS Connection code type
FDA
CCUWS Connection code unit base
3
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0750
DCINTF Interference cutting diameter
44.45 mm
DCONWS Diameter
19.05 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
3/14/2020
DIN
SKG04003795
FamilyProducts
E25025556075900
HAND Cutting direction
N - Neutral
ID Technical product number
02675794
Interface codes
J6 / J61
ISO
SKG37C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric

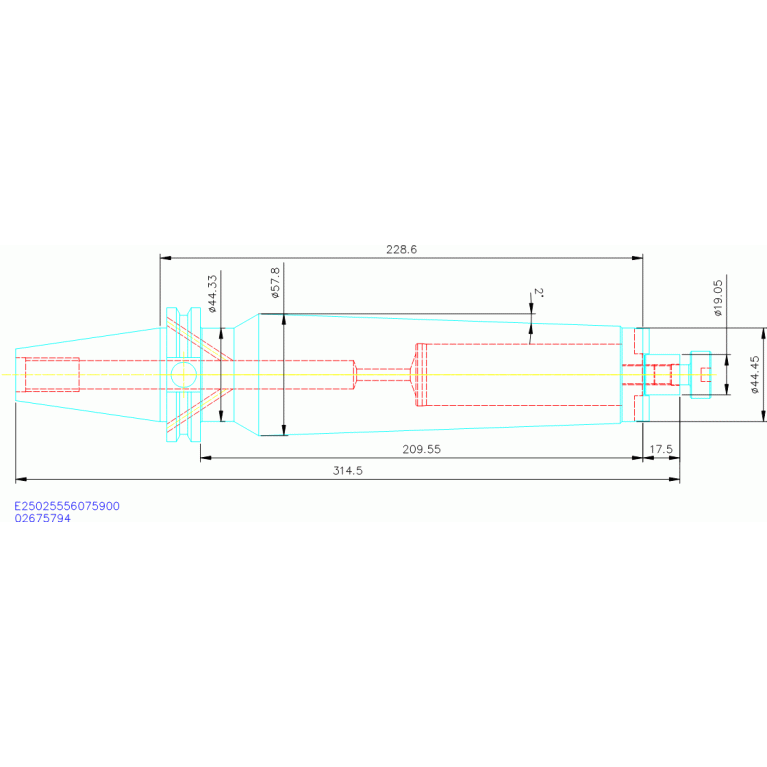

LB Body length 1
209.55 mm
LF Functional length
228.6 mm
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
FDA Milling arbor mounting
LOC-01 CCUWS Connection code unit base
3 Inch with coolant
LOC-01 CZCWS Connection size code
0750
LOC-01 DCONWS Diameter
19.05 mm
LOC-01 ISO
FDA02R7500****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA07500230
LOC-02 DCONWS Diameter
19.05 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SO-FDA075022N0
LOC-03 CCFMS Connection code form
37
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 ISO
SKG37C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04003795
LSCX Clamping length maximum
17.526 mm
Name Identifying order number
E25025556075900
OAL Overall length
314.5 mm
RPMX Rotational speed maximum
8000 1/min
TA Taper angle
1.9 Degree
WT Weight of item
4.58 kg
