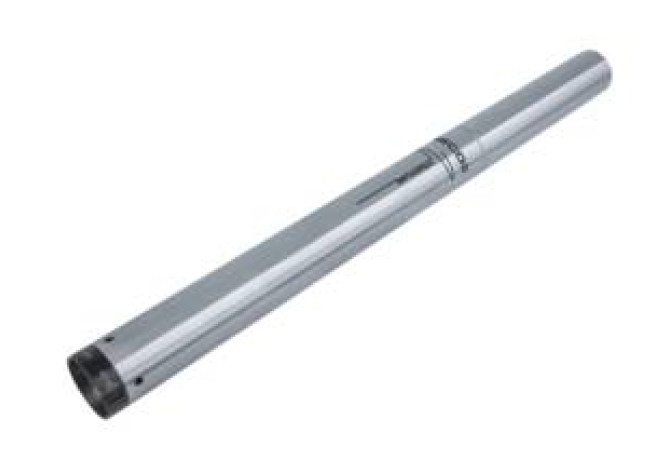

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric DA32-18.50-GL50

DA32-18.50-GL50

DA32-18.50-GL50 DA32-18.50-GL50 DA32-18.50-GL50 DA32-18.50-GL50

DA32-18.50-GL50

Seco
Артикул: 02807938
В наличии
В корзину
Описание
Характеристики

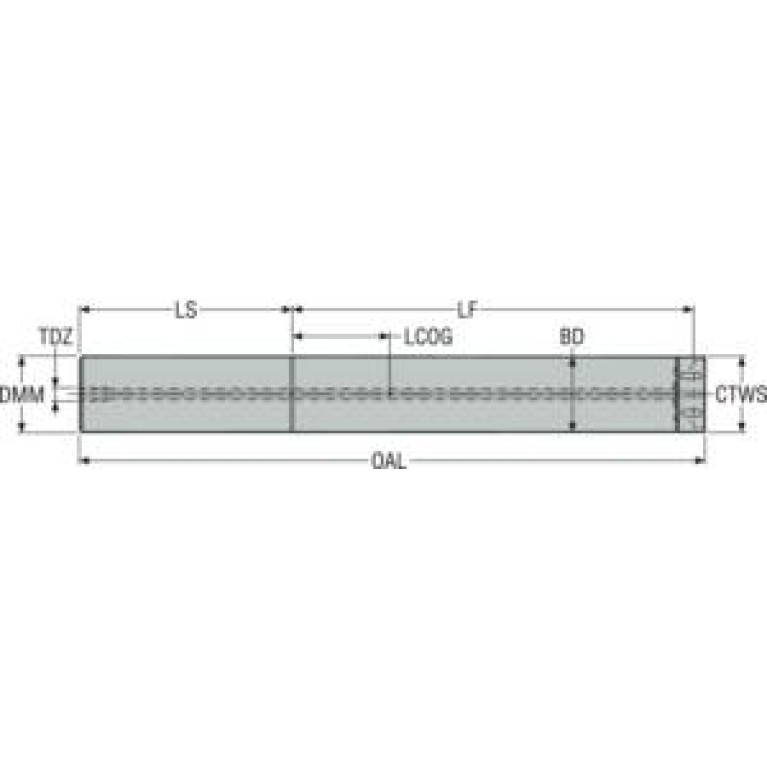

BD Body diameter
50 mm
BLQ Balance quality code
2
CCFWS Connection code form
01
CCTWS Connection code type
SGL
COMPC Company code
SO - SECO Tools
CZCWS Connection size code
0500
DCONWS Diameter
50.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL20000125
FamilyProducts
DA32-18.50-GL50
HAND Cutting direction
N - Neutral
ID Technical product number
02807938
Interface codes
J6 / J61
ISO
ZYL01S2000h$06
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
469.9 mm
LB Length 2
469.5 mm
LF Functional length
469.9 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCTWS Connection code type
SGL
LOC-01 CZCWS Connection size code
0500
LOC-01 DCONWS Diameter
50.8 mm
LOC-01 ISO
SGL01C0500$$$$
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-02 DCONWS Diameter
50.8 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SO-GLX050001M1
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
2000
LOC-03 DCONMS Diameter
51 mm
LOC-03 ISO
ZYL01S2000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL20000125
LS Shank length
203.2 mm
Name Identifying order number
DA32-18.50-GL50

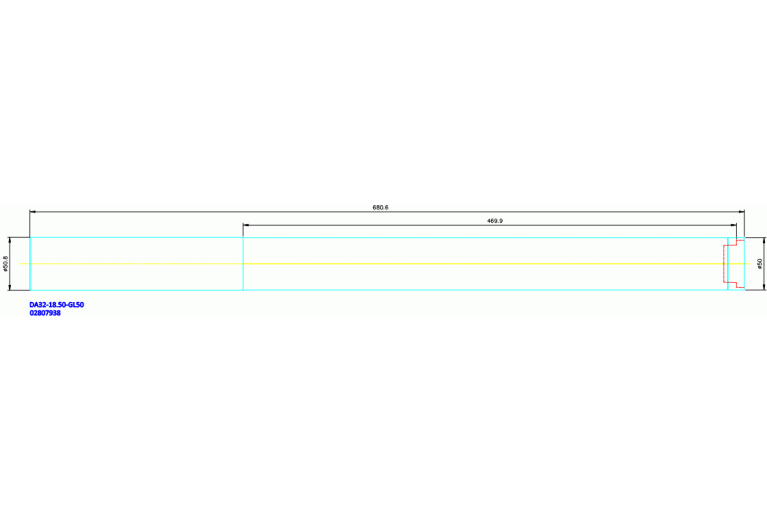

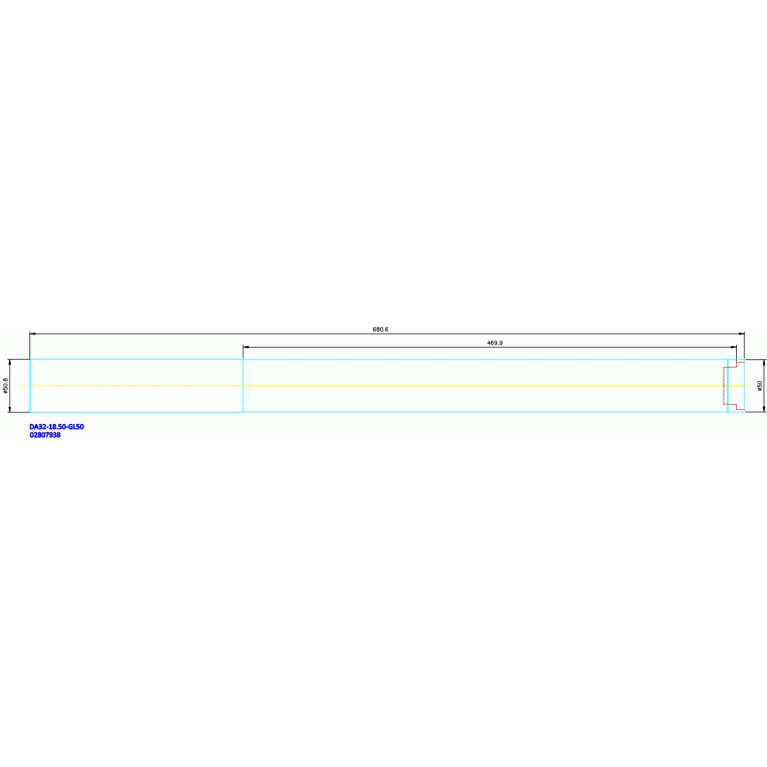

OAL Overall length
680.5 mm
RPMX Rotational speed maximum
0 1/min
THSZWS Connection thread nominal size workpiece side
G 1/4
WT Weight of item
11.117 kg
