Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric CAT50 HYDRO 3/4X3.228

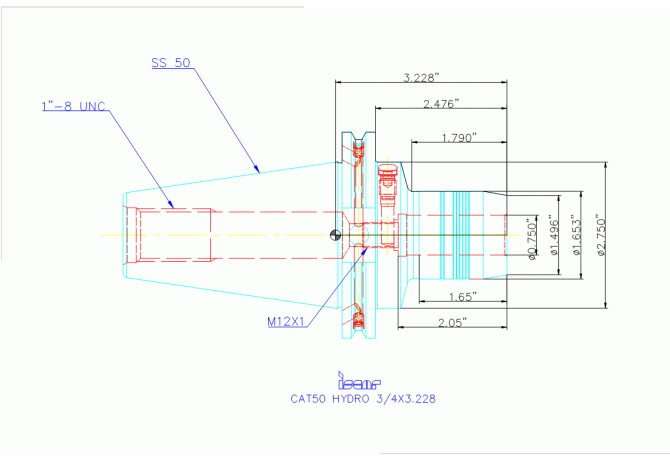

CAT50 HYDRO 3/4X3.228

Артикул: 4559617

В наличии

В корзину

Описание

Характеристики

BD Body diameter

41.9862 mm

BD Body diameter 2

69.85 mm

CCFWS Connection code form

CCONWS Connection count workpiece side

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0750

DCINTF Interference cutting diameter

37.9984 mm

DCONWS Diameter

19.05 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/21/2017

DIN

SKG05003795

FamilyProducts

Hydraulic chucks with coolant holes and Caterpillar form ADB tapered shanks. Mos

HAND Cutting direction

N - Neutral

ID Technical product number

4559617

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

45.466 mm

LB Length 2

62.8904 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

3 Inch with coolant

LOC-01 CZCWS Connection size code

0750

LOC-01 DCONWS Diameter

19.05 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL07500135

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05003795

LPR Protruding length

81.9912 mm

LSCN Clamping length minimum

41.91 mm

LSCX Clamping length maximum

52.07 mm

Name Identifying order number

CAT50 HYDRO 3/4X3.228

RPMX Rotational speed maximum

12000 1/min

THSZMS Connection thread nominal size machine side

1"-8 UNC

THSZWS Connection thread nominal size workpiece side

M12X1

WT Weight of item

192.024 kg
