Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric CAT50 ER16X5.906

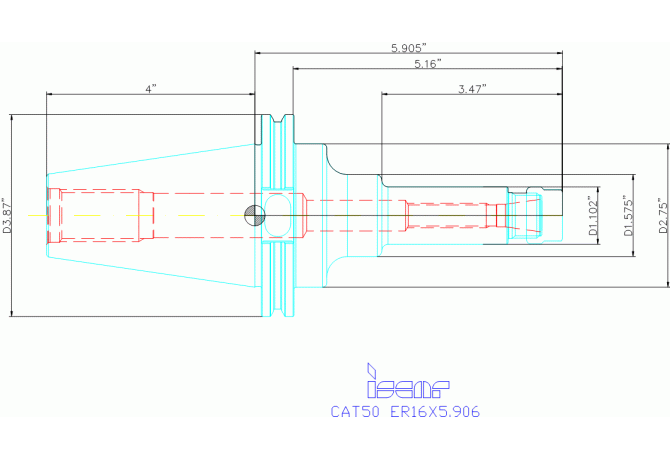

CAT50 ER16X5.906

Артикул: 4501500

В наличии

В корзину

Описание

Характеристики

BD Body diameter 2

69.9008 mm

BLQ Balance quality code

G6.3

CCFWS Connection code form

CCONWS Connection count workpiece side

CCSWS Connection code style

CCTWS Connection code type

SZD

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0160

DCONWS Diameter

0.5588 mm

DCONXWS Connection diameter max

10.0584 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/21/2017

DIN

SKG05003195

DLN Diameter lock nut

27.9908 mm

FamilyProducts

DIN 6499 ER collet chucks with Caterpillar form ADB tapered shanks

HAND Cutting direction

R - Right

ID Technical product number

4501500

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LAM Actuation method

0 - manual clamping

LB Body length 1

88.646 mm

LB Length 2

130.9624 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SZD Collet adapter DIN / ISO

LOC-01 CCUWS Connection code unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Connection size code

0160

LOC-01 DCONWS Diameter

0.5588 mm

LOC-01 DCONXWS Connection diameter max

10.0584 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZD01600295

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03 DCONMS Diameter

50 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05003195

LPR Protruding length

150.0124 mm

Name Identifying order number

CAT50 ER16X5.906

RPMX Rotational speed maximum

12000 1/min

THSZMS Connection thread nominal size machine side

1-8

THSZWS Connection thread nominal size workpiece side

M12

WT Weight of item

192.278 kg
