Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric CAT40 SRKIN 1-1/4 X4.000

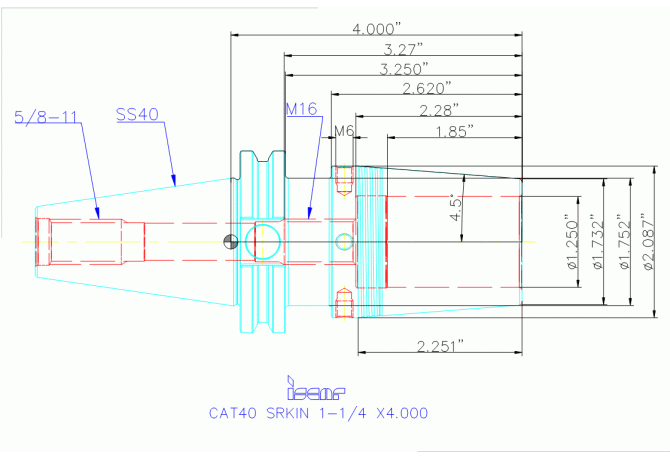

CAT40 SRKIN 1-1/4 X4.000

Артикул: 4503967

В наличии

В корзину

Описание

Характеристики

BD Body diameter

53.0098 mm

BD Body diameter 2

44.5008 mm

BLQ Balance quality code

G2.5

CCFWS Connection code form

CCONWS Connection count workpiece side

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

1250

DCINTF Interference cutting diameter

43.9928 mm

DCONWS Diameter

31.75 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/21/2017

DIN

SKG04003195

FamilyProducts

SHRINKIN thermal chucks with integral Caterpillar tapered shanks, for solid carb

HAND Cutting direction

N - Neutral

ID Technical product number

4503967

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LAM Actuation method

0 - manual clamping

LB Body length 1

66.548 mm

LB Length 2

82.55 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

3 Inch with coolant

LOC-01 CZCWS Connection size code

1250

LOC-01 DCONWS Diameter

31.75 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL12500135

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04003195

LPR Protruding length

101.6 mm

LSCN Clamping length minimum

46.99 mm

LSCX Clamping length maximum

57.912 mm

Name Identifying order number

CAT40 SRKIN 1-1/4 X4.000

RPMX Rotational speed maximum

25000 1/min

TA Taper angle

4.5 Degree

THSZMS Connection thread nominal size machine side

5/8-11

THSZWS Connection thread nominal size workpiece side

M16

WT Weight of item

87.884 kg
