Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric CAT40 SEM 3/4X1.375

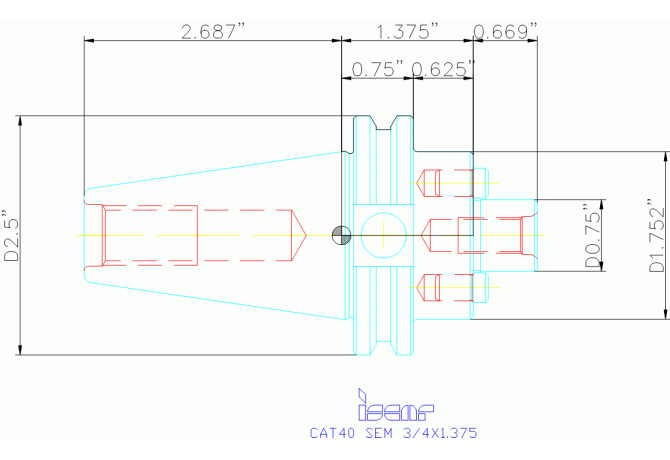

CAT40 SEM 3/4X1.375

Артикул: 4501474

В наличии

В корзину

Описание

Характеристики

BD Body diameter 2

44.5008 mm

BLQ Balance quality code

G2.5

CCFWS Connection code form

CCONWS Connection count workpiece side

CCSWS Connection code style

CCTWS Connection code type

FDA

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

2 - With Coolant exit, radial

CZCWS Connection size code

0750

DCONWS Diameter

19.05 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/21/2017

DIN

SKG04003195

FamilyProducts

ISO 3937 Shell mill holders with Caterpillar form ADB tapered shanks.

HAND Cutting direction

N - Neutral

ID Technical product number

4501474

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

15.875 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

FDA Milling arbor mounting

LOC-01 CCUWS Connection code unit base

3 Inch with coolant

LOC-01 CZCWS Connection size code

0750

LOC-01 DCONWS Diameter

19.05 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

FDA07500235

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04003195

LPR Protruding length

34.925 mm

LSCN Clamping length minimum

16.9926 mm

LSCX Clamping length maximum

16.9926 mm

Name Identifying order number

CAT40 SEM 3/4X1.375

RPMX Rotational speed maximum

20000 1/min

THSZMS Connection thread nominal size machine side

5/8-11

WT Weight of item

55.372 kg
