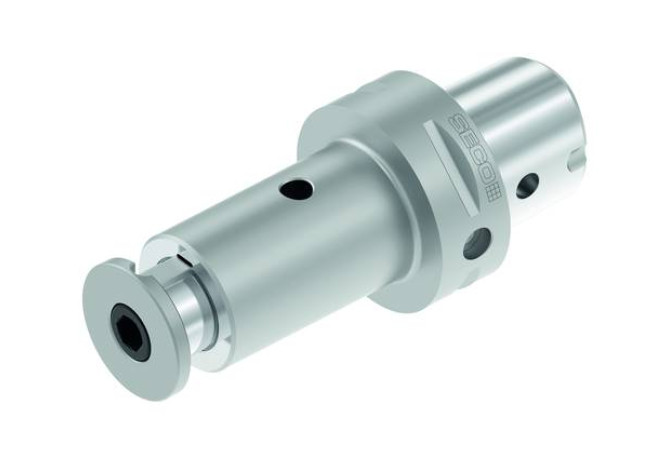

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric C8-391.5657-125475

C8-391.5657-125475

C8-391.5657-125475 C8-391.5657-125475 C8-391.5657-125475 C8-391.5657-125475

C8-391.5657-125475

Seco
Артикул: 02610400
В наличии
В корзину
Описание
Характеристики

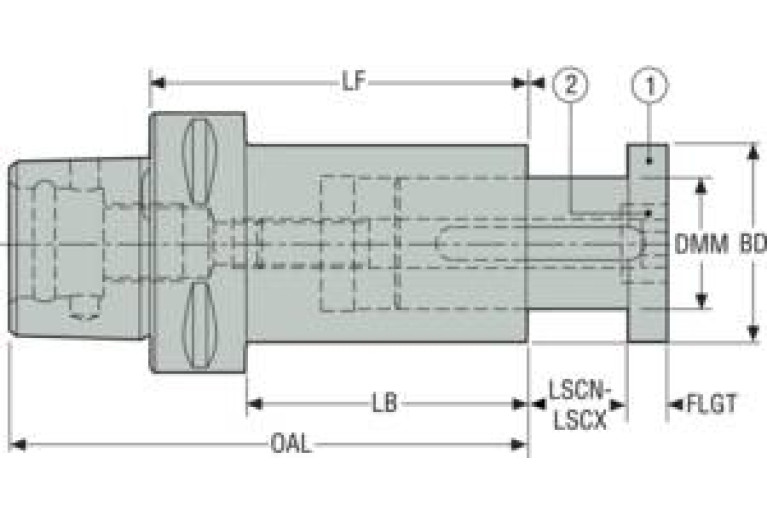

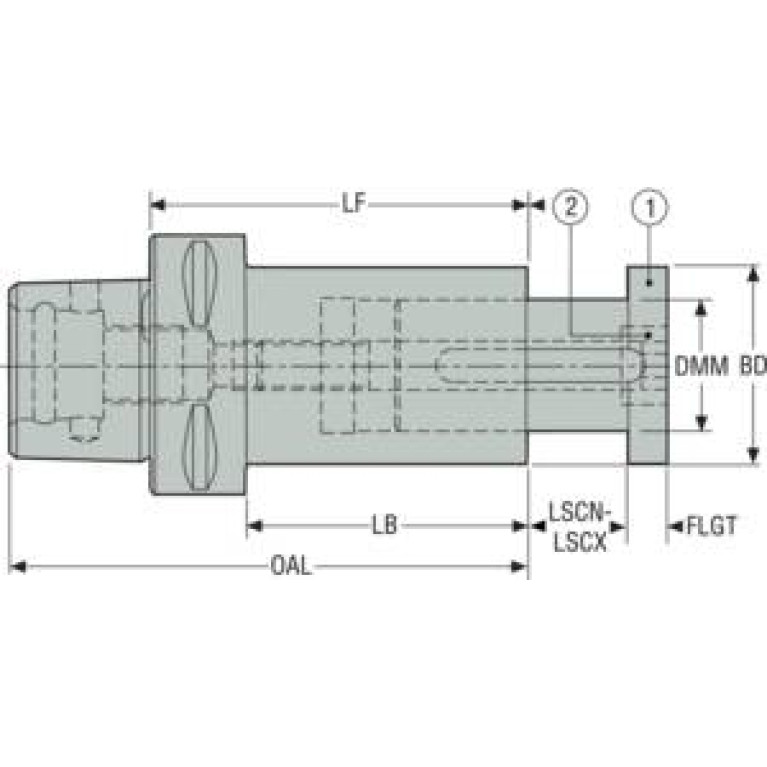

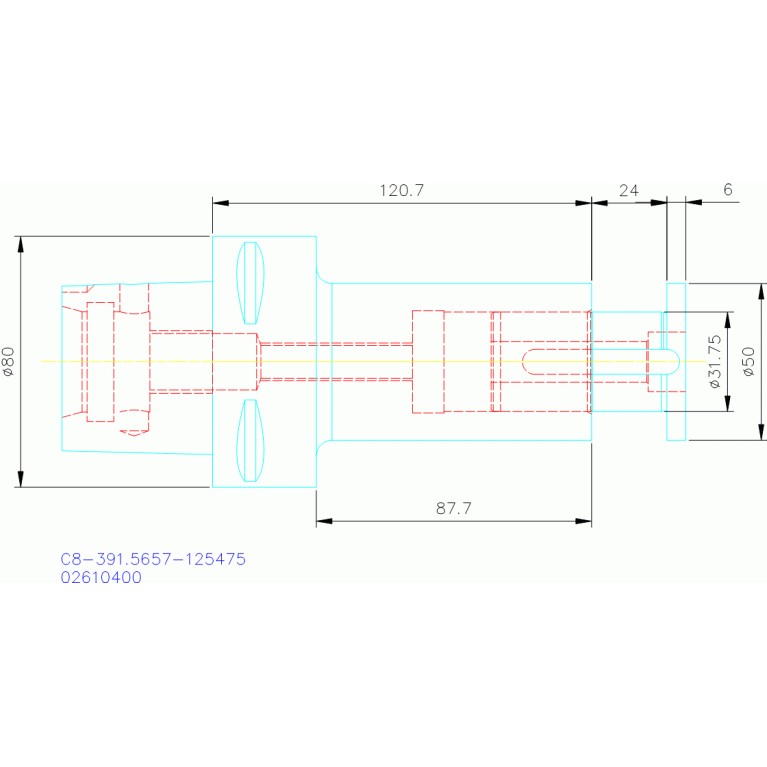

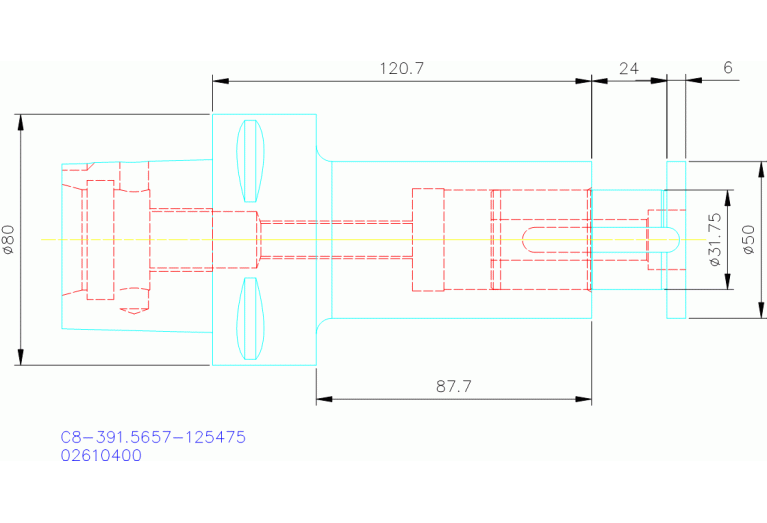

BD Body diameter
50.038 mm
BLQ Balance quality code
PB
CCFWS Connection code form
01
CCSWS Connection code style
0
CCTWS Connection code type
FDA
CCUWS Connection code unit base
2
COMPC Company code
SO - SECO Tools
CZCWS Connection size code
1250
DCONWS Diameter
31.75 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
3/14/2020
DIN
CCS08000185
FamilyProducts
C8-391.5657-125475
HAND Cutting direction
N - Neutral
ID Technical product number
02610400
Interface codes
J6 / J61
ISO
CCS01C0800$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
87.63 mm
LF Functional length
120.65 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
FDA Milling arbor mounting
LOC-01 CCUWS Connection code unit base
2 Inch
LOC-01 CZCWS Connection size code
1250
LOC-01 DCONWS Diameter
31.75 mm
LOC-01 ISO
FDA01S1250****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA12500120
LOC-02 DCONWS Diameter
31.75 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SO-FDA125001N0
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0800
LOC-03 ISO
CCS01C0800$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS08000185
LSCN Clamping length minimum
0 mm
LSCX Clamping length maximum
16.002 mm
Name Identifying order number
C8-391.5657-125475
OAH Overall height
16.002 mm
OAL Overall length
168.65 mm
WT Weight of item
3.2 kg
