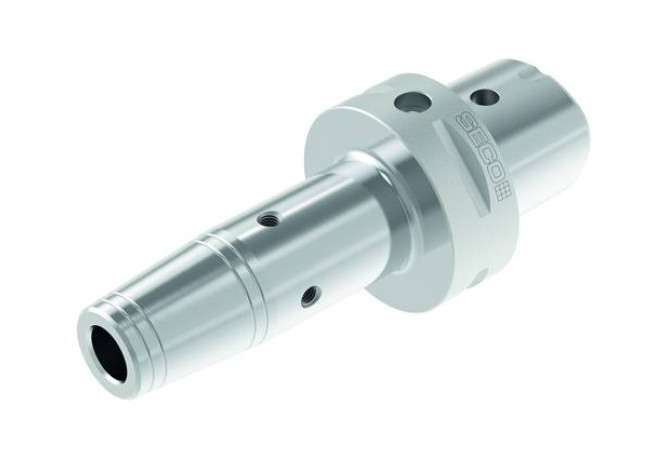

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric C8-391.5603-18090

C8-391.5603-18090

C8-391.5603-18090 C8-391.5603-18090 C8-391.5603-18090 C8-391.5603-18090

C8-391.5603-18090

Seco
Артикул: 02753187
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
2 - Axial adjustment possible
BD Body diameter
42 mm
BLQ Balance quality code
G6.3
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
0
COMPC Company code
SO - SECO Tools
CZCWS Connection size code
0180
DCINTF Interference cutting diameter
33 mm
DCONWS Diameter
18 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
3/14/2020
DIN
CCS08000185
FamilyProducts
C8-391.5603-18090
HAND Cutting direction
N - Neutral
ID Technical product number
02753187
Interface codes
J6 / J61
ISO
CCS01C0800$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
60 mm
LF Functional length
51 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0180
LOC-01 DCONWS Diameter
18 mm
LOC-01 ISO
ZYL01G1800****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01800105
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0800
LOC-03 ISO
CCS01C0800$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS08000185
LPR Protruding length
90 mm
LSCX Clamping length maximum
39 mm
Name Identifying order number
C8-391.5603-18090
OAL Overall length
138 mm
TA Taper angle
4.5 Degree
WT Weight of item
2.17 kg
