Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric C8-391.0401-46A65

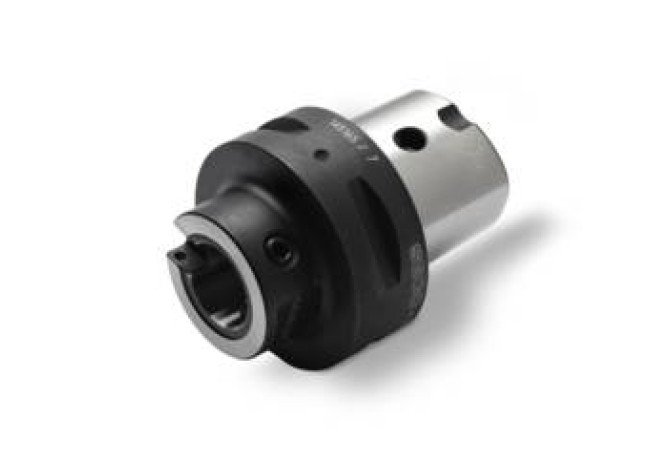

C8-391.0401-46A65

C8-391.0401-46A65 C8-391.0401-46A65 C8-391.0401-46A65 C8-391.0401-46A65

C8-391.0401-46A65

Seco
Артикул: 02693862
В наличии
В корзину
Описание
Характеристики
BD Body diameter
120 mm
BLQ Balance quality code
PB
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
GMS
CCUWS Connection code unit base
1
COMPC Company code
SO - SECO Tools
CZCWS Connection size code
1200
DCONWS Diameter
46 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
3/14/2020
DIN
CCS08000185
FamilyProducts
C8-391.0401-46A65
HAND Cutting direction
N - Neutral
ID Technical product number
02693862
Interface codes
J6 / J61
ISO
CCS01C0800$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
35 mm
LF Functional length
65 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
GMS Graflex modular connection SECO
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
1200
LOC-01 DCONWS Diameter
46 mm
LOC-01 ISO
GMS01H1200$$$$
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
GMS12000115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0800
LOC-03 ISO
CCS01C0800$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS08000185
Name Identifying order number
C8-391.0401-46A65
OAL Overall length
113 mm
TA Taper angle
45 Degree
WT Weight of item
3.44 kg
