Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric C8-391.02-32 060B

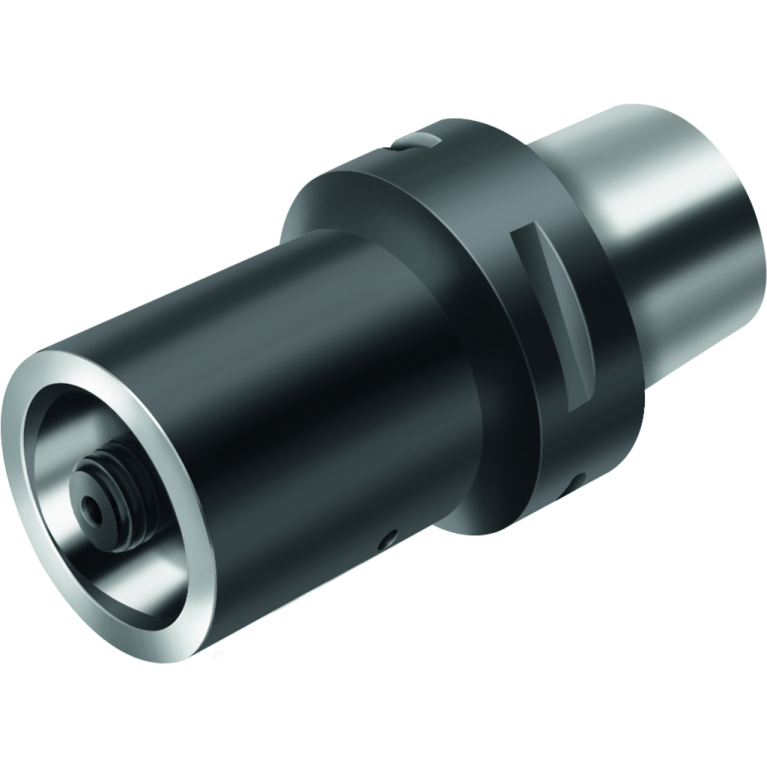

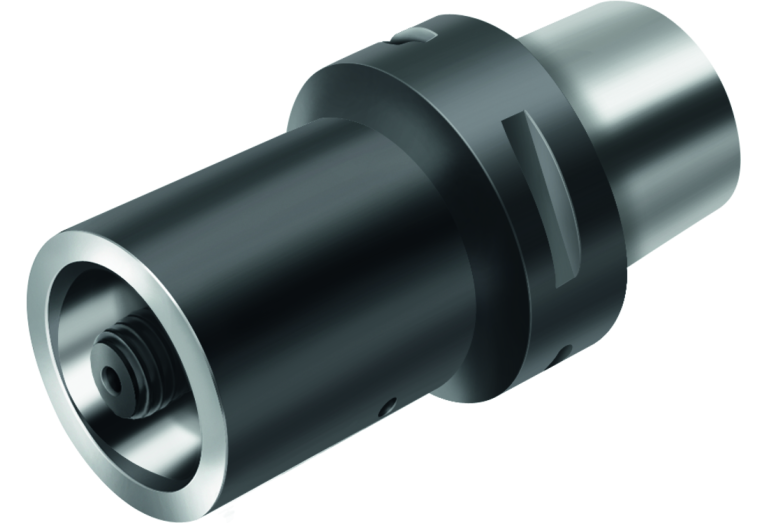

C8-391.02-32 060B

C8-391.02-32 060B C8-391.02-32 060B C8-391.02-32 060B

C8-391.02-32 060B

Walter
Артикул: 6426468
В наличии
В корзину
Описание
Характеристики
BD Body diameter
32 mm
CCFWS Form
03
CCSWS Style
5
CCTWS Type
CCS
CCUWS Unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0320
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS08000195
FamilyProducts
Reduction adaptor C.-391.02
ID Technical product number
6426468
Interface codes
J6 / J61
ISO
CCS01C0800$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
20.7 mm
LF Functional length
60 mm
LOC-01 CCFWS Form
03
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
CCS Coromant Capto System SANDVIK
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
0320
LOC-01 ISO
CCS03C0320****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CCS03200395
LOC-02 CCFWS Form
03
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
CCS Coromant Capto System SANDVIK
LOC-02 CCUWS Unit base
9 non-dimensional size with coolant
LOC-02 CZCWS Size code
0320
LOC-02 ISO
CCS01C0320****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
CCS03200195
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0800
LOC-03 DCONMS Diameter
80 mm
LOC-03 ISO
CCS01C0800$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS08000195
LPR Protruding length
60 mm
LS Shank length
48 mm
Name Identifying order number
C8-391.02-32 060B
OAL Overall length
108 mm
RPMX Rotational speed maximum
14000 1/min
STDNO Standard
ISO26623-2
WT Weight of item
1.9 kg
