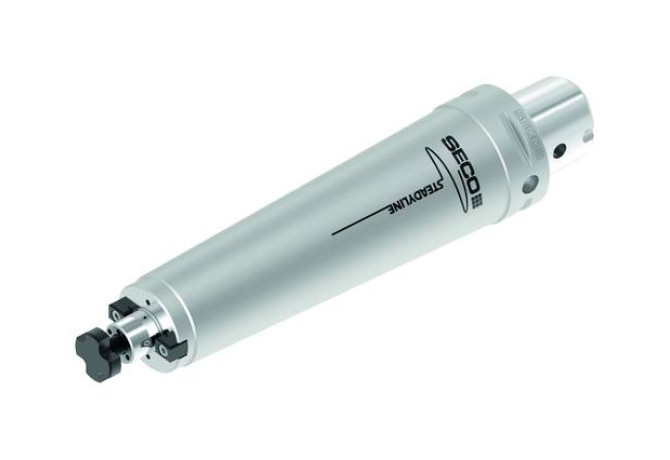

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric C6-391.5556-075900

C6-391.5556-075900

C6-391.5556-075900 C6-391.5556-075900 C6-391.5556-075900 C6-391.5556-075900

C6-391.5556-075900

Seco
Артикул: 02753488
В наличии
В корзину
Описание
Характеристики

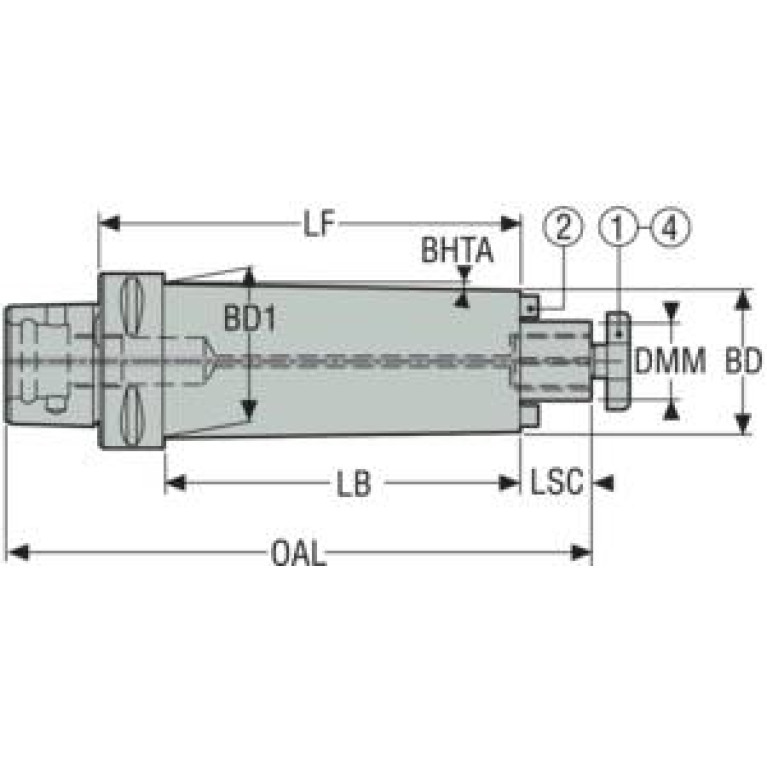

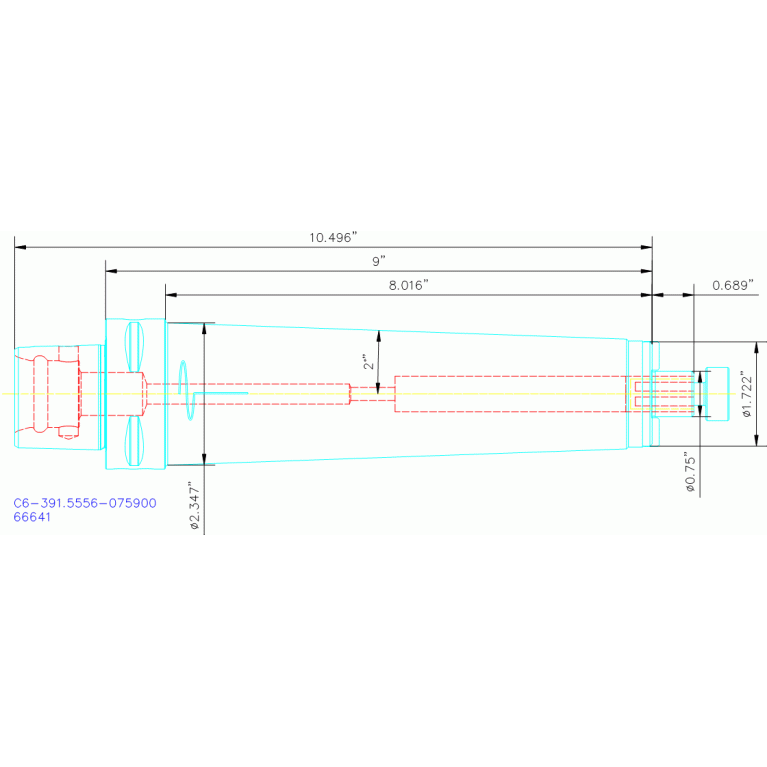

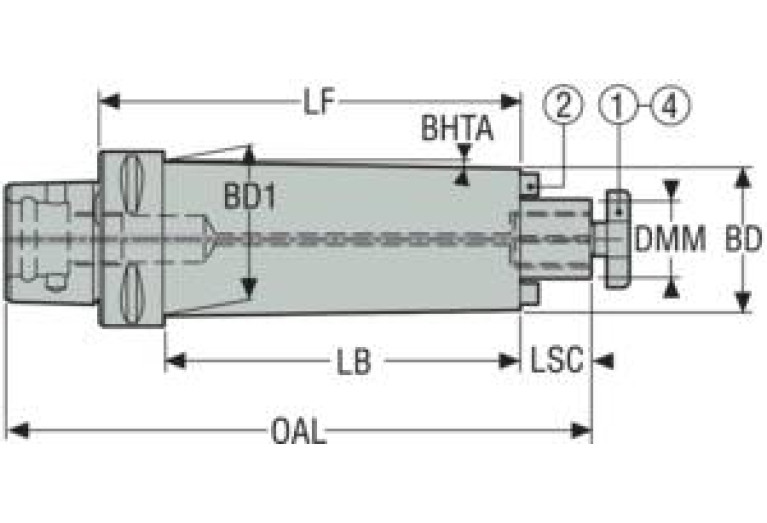

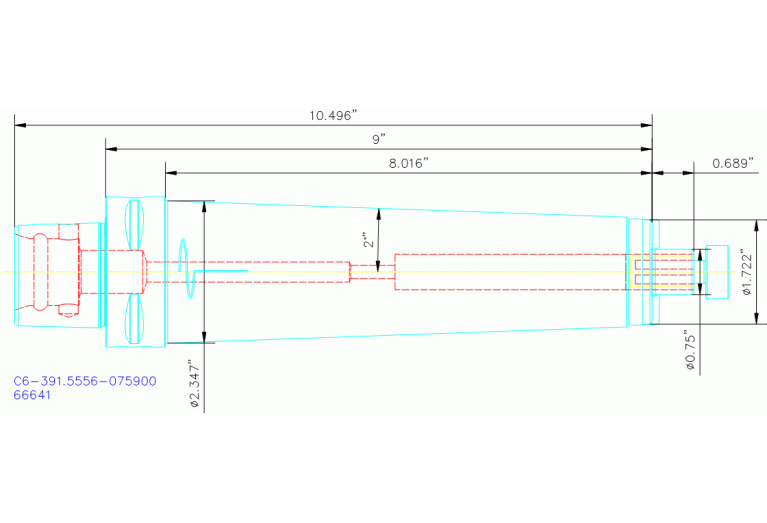

BD Body diameter
59.69 mm
BLQ Balance quality code
PB
CCFWS Connection code form
02
CCSWS Connection code style
0
CCTWS Connection code type
FDA
CCUWS Connection code unit base
2
COMPC Company code
SO - SECO Tools
CZCWS Connection size code
0750
DCINTF Interference cutting diameter
44.45 mm
DCONWS Diameter
19.05 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
3/14/2020
DIN
CCS06300185
FamilyProducts
C6-391.5556-075900
HAND Cutting direction
N - Neutral
ID Technical product number
02753488
Interface codes
J6 / J61
ISO
CCS01C0630$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
203.6 mm
LF Functional length
228.6 mm
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
FDA Milling arbor mounting
LOC-01 CCUWS Connection code unit base
2 Inch
LOC-01 CZCWS Connection size code
0750
LOC-01 DCONWS Diameter
19.05 mm
LOC-01 ISO
FDA02R7500****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA07500220
LOC-02 DCONWS Diameter
19.05 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SO-FDA075022N0
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0630
LOC-03 ISO
CCS01C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS06300185
LSCX Clamping length maximum
17.5 mm
Name Identifying order number
C6-391.5556-075900
OAL Overall length
284.1 mm
RPMX Rotational speed maximum
8000 1/min
TA Taper angle
2 Degree
WT Weight of item
4.534 kg
