Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric C5-390B.140-40040

C5-390B.140-40040

C5-390B.140-40040 C5-390B.140-40040 C5-390B.140-40040 C5-390B.140-40040

C5-390B.140-40040

Seco
Артикул: 02924112
В наличии
В корзину
Описание
Характеристики

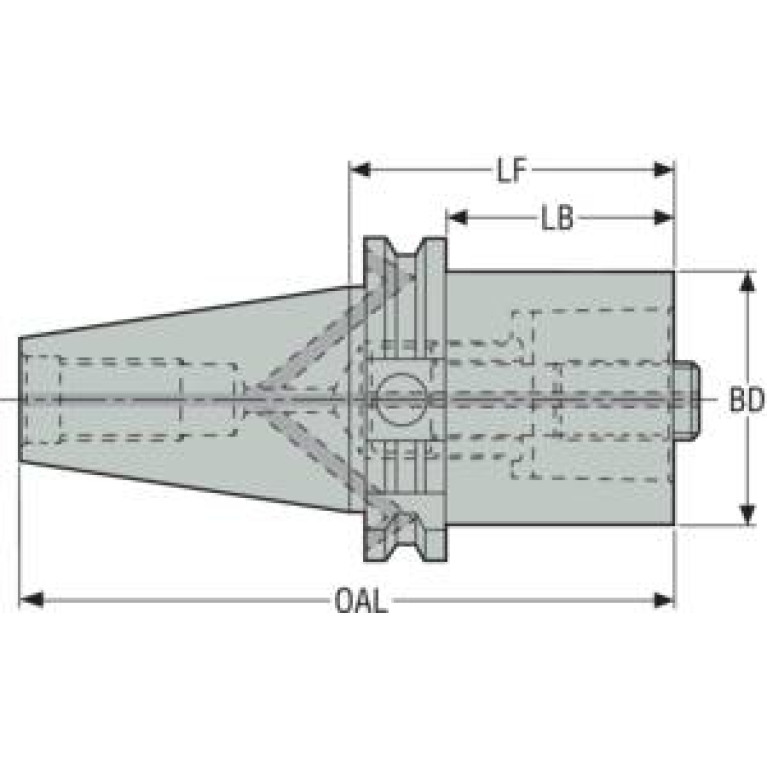

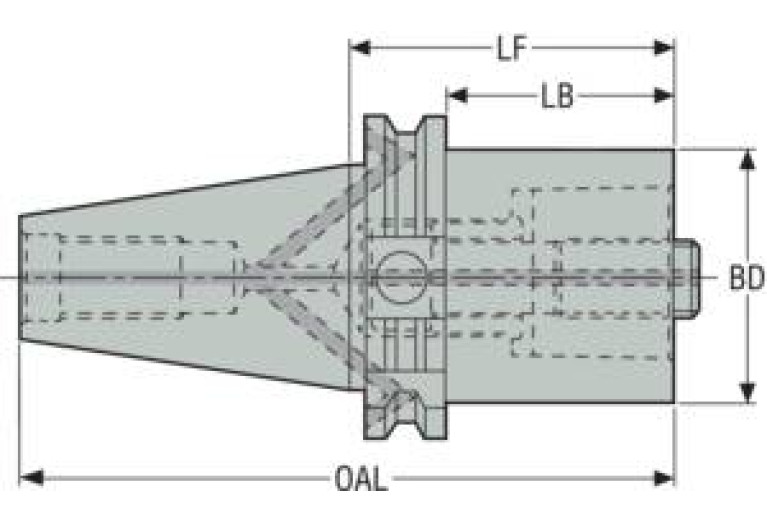

BD Body diameter
50 mm
BLQ Balance quality code
G6.3
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
CCS
CCUWS Connection code unit base
9
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0500
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
SKG04001795
FamilyProducts
C5-390B.140-40040
HAND Cutting direction
N - Neutral
ID Technical product number
02924112
Interface codes
J6 / J61
ISO
SKG17C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
20.9 mm
LF Functional length
40 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
CCS Coromant Capto System SANDVIK
LOC-01 CCUWS Connection code unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Connection size code
0500
LOC-01 ISO
CCS01C0500$$$$
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CCS05000195
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SO-CCS005001M0
LOC-03 CCFMS Connection code form
17
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 ISO
SKG17C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04001795
Name Identifying order number
C5-390B.140-40040
OAL Overall length
108.4 mm
WT Weight of item
0.9 kg
