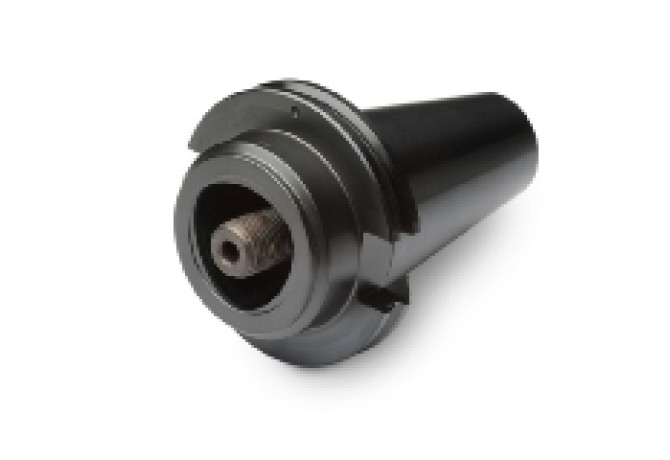

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric C4-A390B.45-50060

C4-A390B.45-50060

Артикул: 02925934

В наличии

В корзину

Описание

Характеристики

BD Body diameter

40 mm

CCSWS Connection code style

CCTWS Connection code type

CCS

CCUWS Connection code unit base

COMPC Company code

SO - SECO Tools

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

FamilyProducts

C4-A390B.45-50060

HAND Cutting direction

N - Neutral

ID Technical product number

02925934

Interface codes

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

40.9 mm

LF Functional length

60 mm

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

CCS Coromant Capto System SANDVIK

LOC-01 CCUWS Connection code unit base

8 non-dimensional size

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

C4-A390B.45-50060

OAL Overall length

161.7 mm

WT Weight of item

2.83 kg
