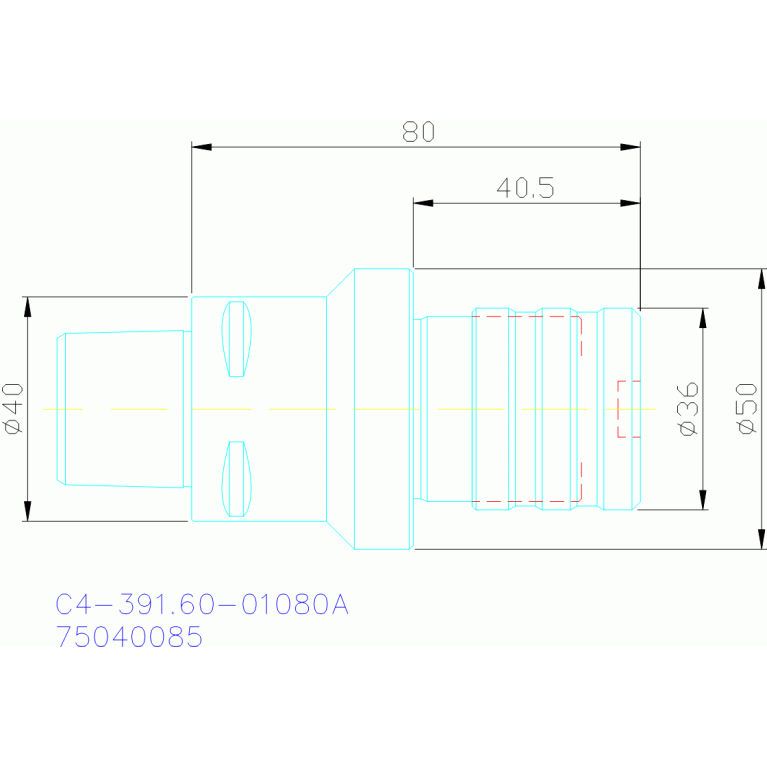

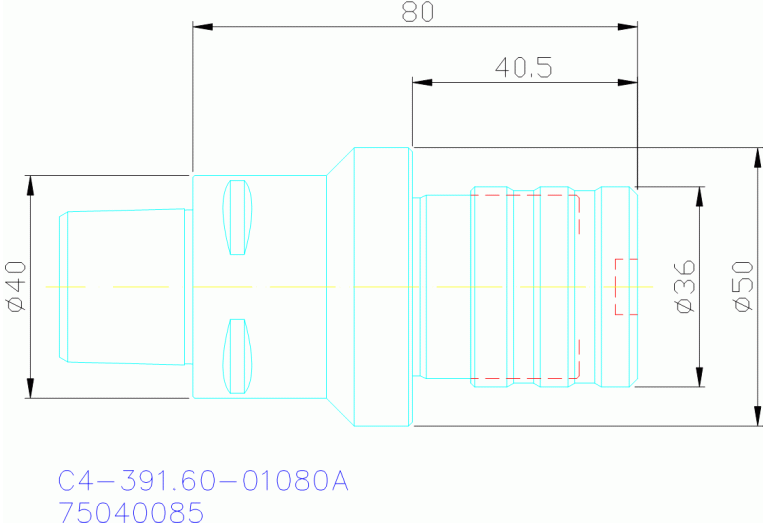

C4-391.60-01080A

C4-391.60-01080A C4-391.60-01080A C4-391.60-01080A C4-391.60-01080A

C4-391.60-01080A

Seco
Артикул: 75040085
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
2 - Axial adjustment possible
BD Body diameter
36 mm
BD Body diameter 2
50 mm
CCFWS Connection code form
00
CCSWS Connection code style
5
CCTWS Connection code type
SWB
CCUWS Connection code unit base
0
COMPC Company code
SO - SECO Tools
CZCWS Connection size code
0190
DCONWS Diameter
19 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/7/2017
DIN
CCS04000185
FamilyProducts
C4-391.60-01080A
HAND Cutting direction
N - Neutral
ID Technical product number
75040085
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
40.5 mm
LF Functional length
80 mm
LOC-01 CCFWS Connection code form
00
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SWB Quick change adapter BILZ
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0190
LOC-01 DCONWS Diameter
19 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SWB01900005
LOC-02 DCONWS Diameter
19 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SO-SWB002000M0
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS04000185
Name Identifying order number
C4-391.60-01080A
OAL Overall length
104 mm
WT Weight of item
0.68 kg
