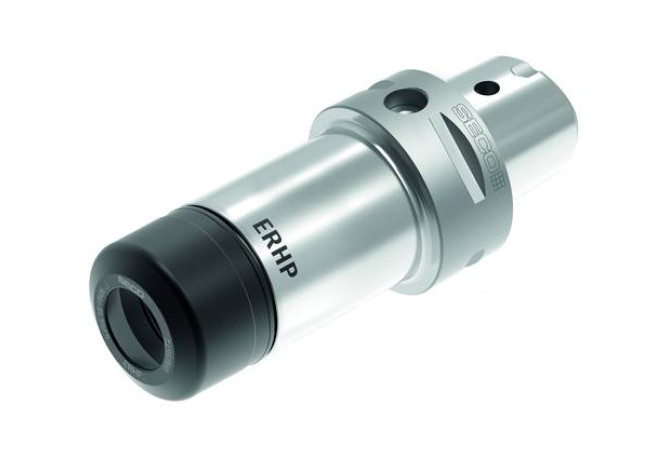

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric C4-391.5672-16060

C4-391.5672-16060

C4-391.5672-16060 C4-391.5672-16060 C4-391.5672-16060 C4-391.5672-16060

C4-391.5672-16060

Seco
Артикул: 02827274
В наличии
В корзину
Описание
Характеристики

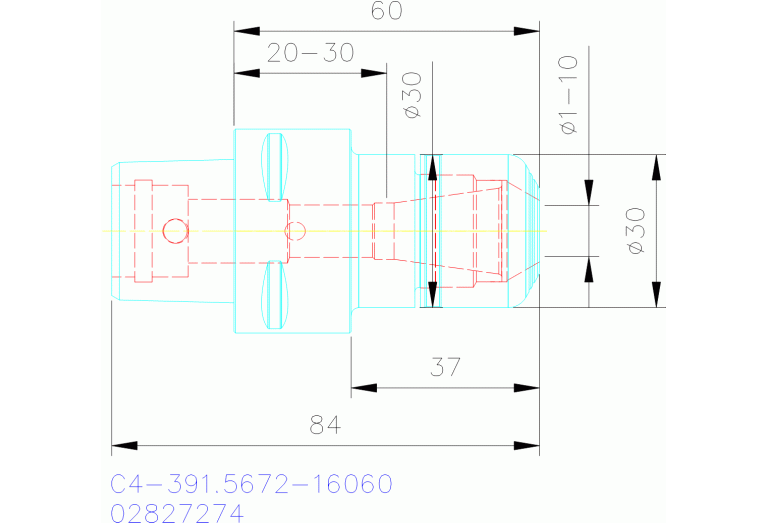

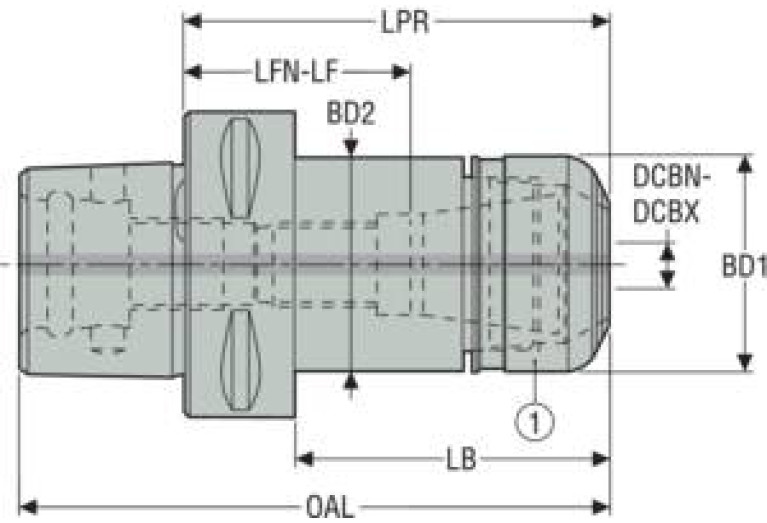

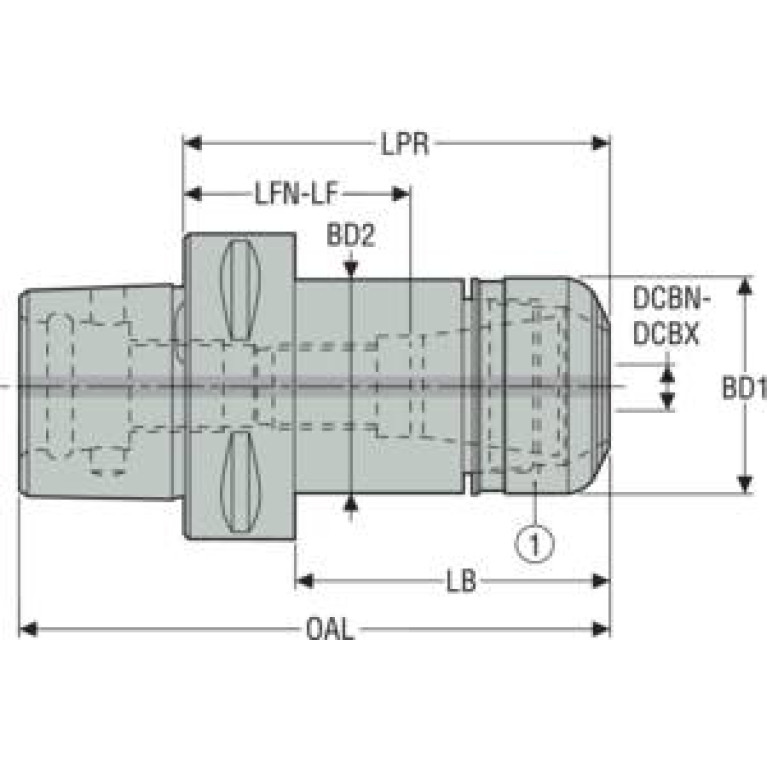

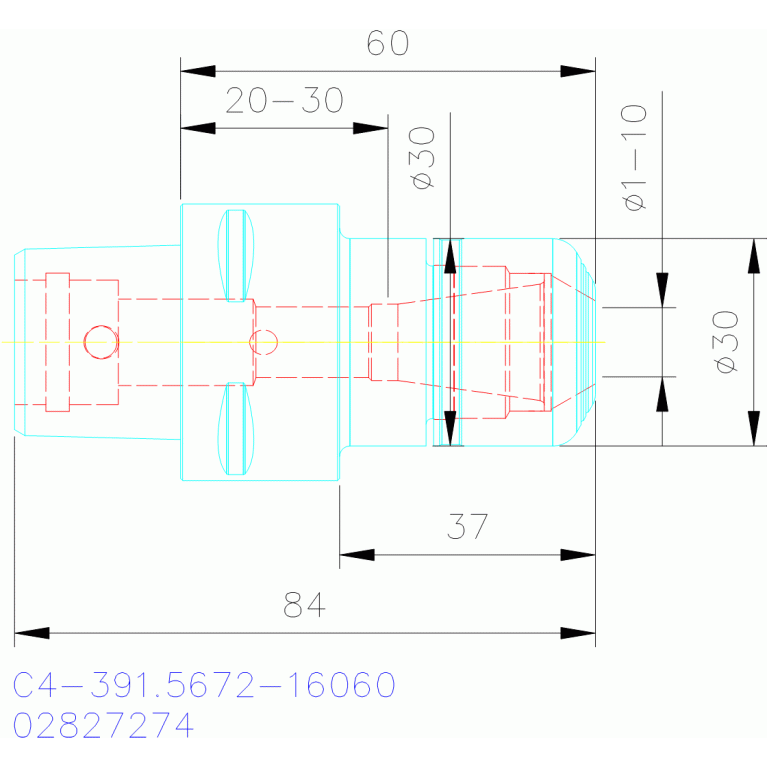

BD Body diameter
30 mm
BD Body diameter 2
30 mm
BLQ Balance quality code
G6.3
CCFWS Connection code form
14
CCSWS Connection code style
5
CCTWS Connection code type
SZD
CCUWS Connection code unit base
8
COMPC Company code
SO - SECO Tools
CZCWS Connection size code
0160
DCONWS Diameter
0.5 mm
DCONXWS Connection diameter max
10 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
CCS04000185
FamilyProducts
C4-391.5672-16060
HAND Cutting direction
N - Neutral
ID Technical product number
02827274
Interface codes
J6 / J61
ISO
CCS01C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
37 mm
LF Functional length
30 mm
LOC-01 CCFWS Connection code form
14
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Connection code unit base
8 non-dimensional size
LOC-01 CZCWS Connection size code
0160
LOC-01 DCONWS Diameter
0.5 mm
LOC-01 DCONXWS Connection diameter max
10 mm
LOC-01 ISO
SZD14C0160$$$$
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD01601485
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0400
LOC-03 ISO
CCS01C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS04000185
LPR Protruding length
60 mm
Name Identifying order number
C4-391.5672-16060
OAL Overall length
84 mm
WT Weight of item
0.42 kg
