Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric C4-390.00-50030

C4-390.00-50030

C4-390.00-50030 C4-390.00-50030 C4-390.00-50030 C4-390.00-50030

C4-390.00-50030

Seco
Артикул: 75039850
В наличии
В корзину
Описание
Характеристики

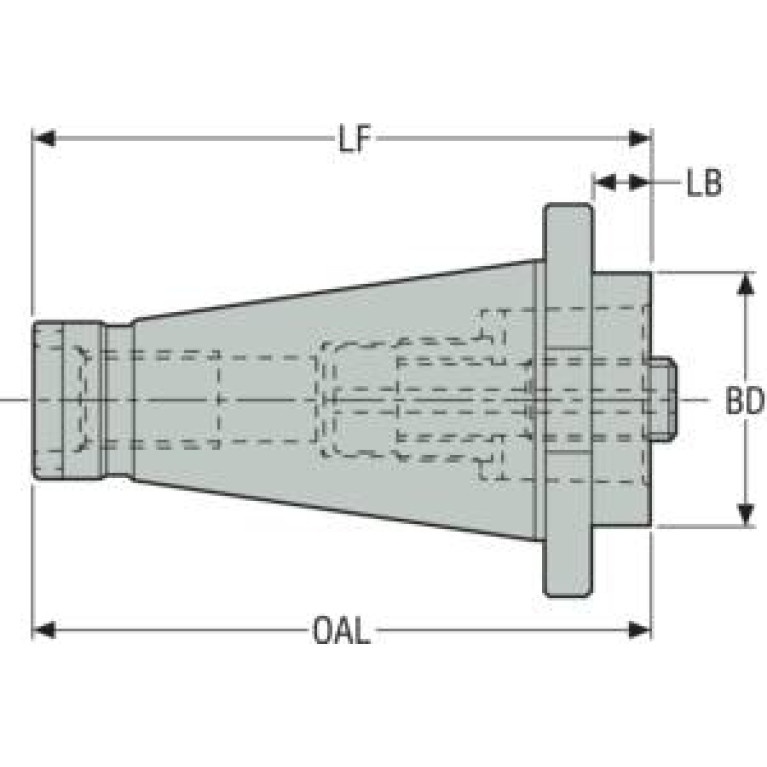

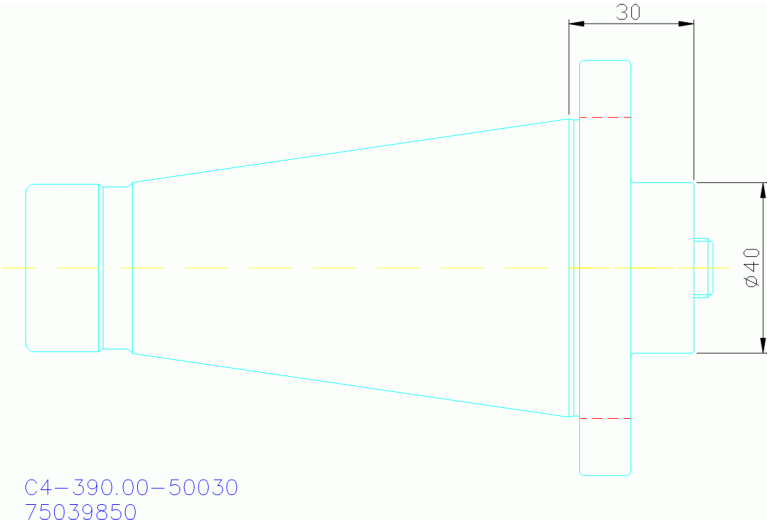

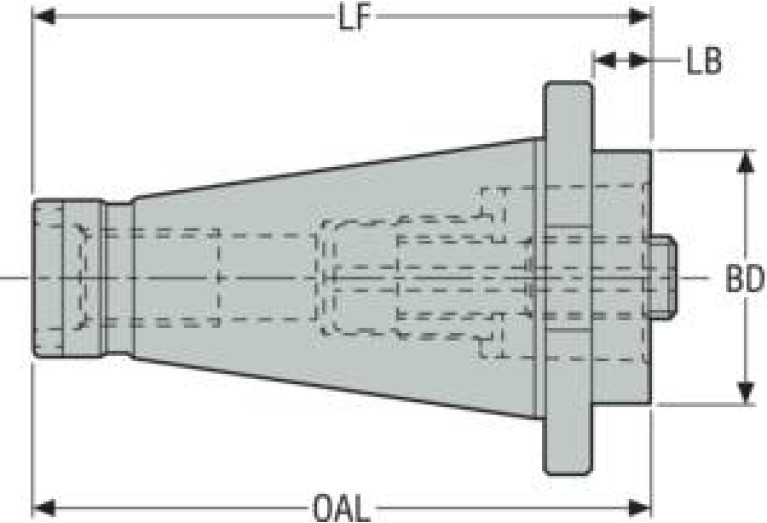

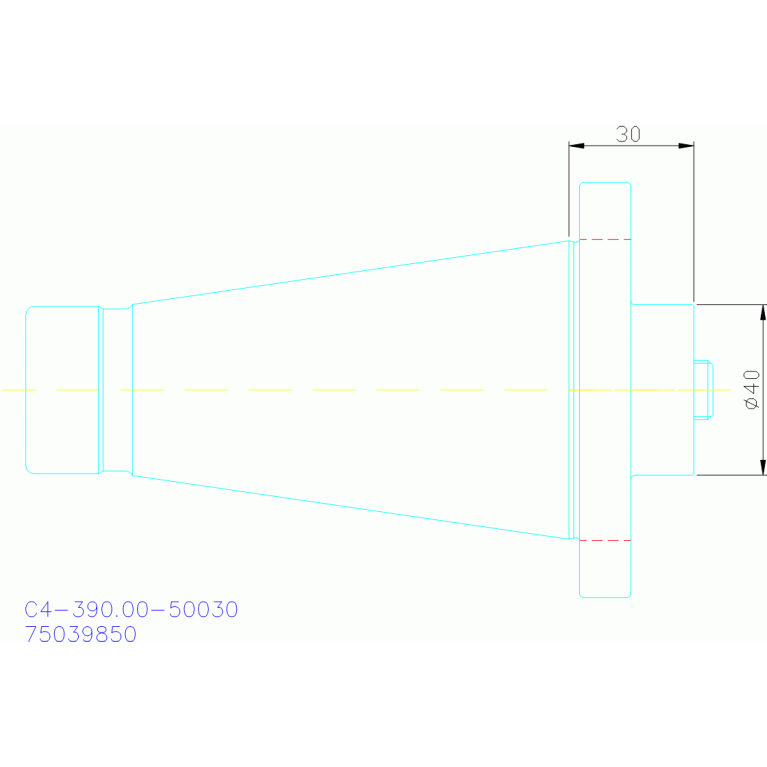

BD Body diameter
40 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
CCS
CCUWS Connection code unit base
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0400
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
SKG05002185
FamilyProducts
C4-390.00-50030
HAND Cutting direction
N - Neutral
ID Technical product number
75039850
Interface codes
J6 / J61
ISO
SKG21C0500$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
14.8 mm
LF Functional length
30 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
CCS Coromant Capto System SANDVIK
LOC-01 CCUWS Connection code unit base
8 non-dimensional size
LOC-01 CZCWS Connection size code
0400
LOC-01 ISO
CCS01C0400$$$$
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CCS04000185
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SO-CCS004001M0
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0500
LOC-03 ISO
SKG21C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05002185
Name Identifying order number
C4-390.00-50030
OAL Overall length
156.8 mm
WT Weight of item
2.5 kg
