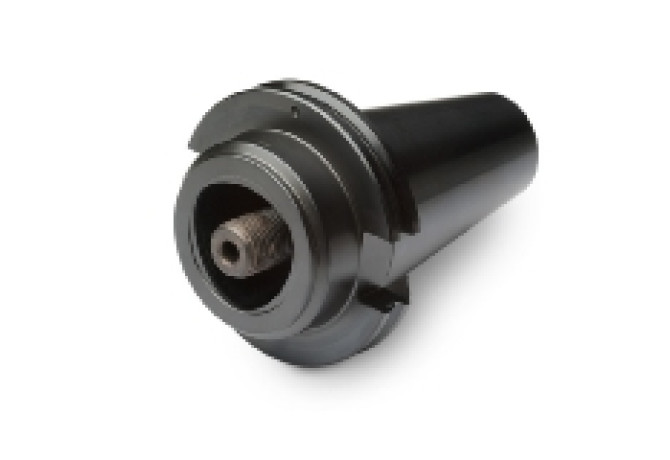

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric C3-A390B.45-40060

C3-A390B.45-40060

Артикул: 02925929

В наличии

В корзину

Описание

Характеристики

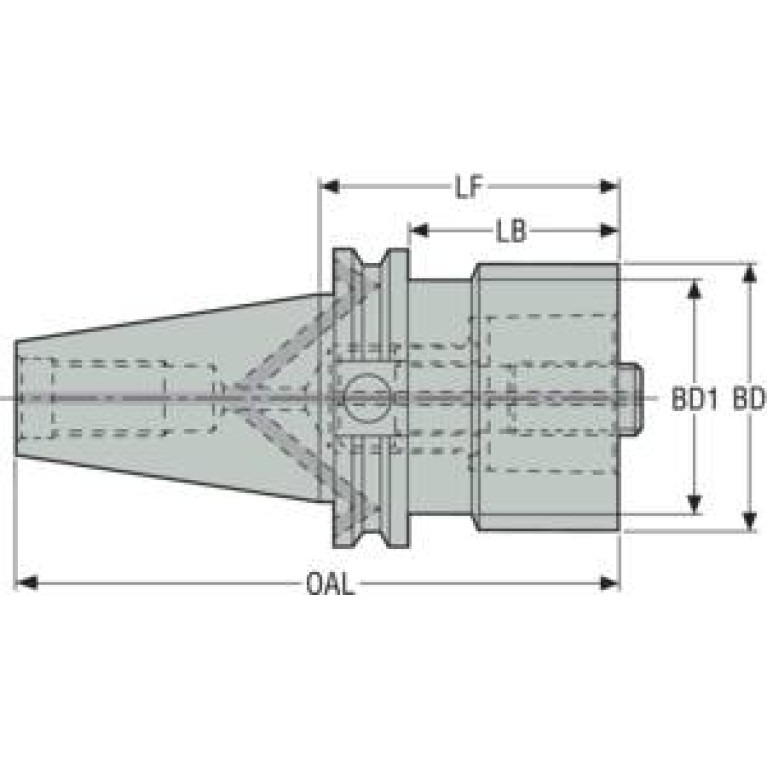

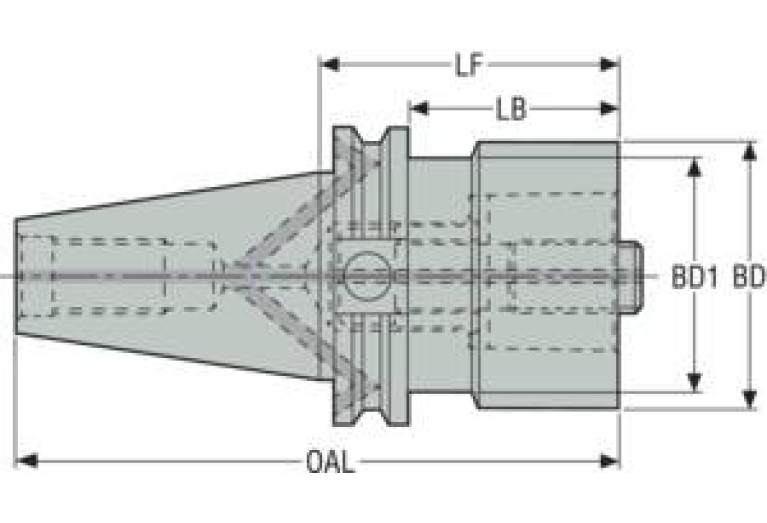

BD Body diameter

32 mm

BLQ Balance quality code

G6.3

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

CCS

CCUWS Connection code unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0320

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

SKG04002795

FamilyProducts

C3-A390B.45-40060

HAND Cutting direction

N - Neutral

ID Technical product number

02925929

Interface codes

J6 / J61

ISO

SKG27C0400$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

40.9 mm

LF Functional length

60 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

CCS Coromant Capto System SANDVIK

LOC-01 CCUWS Connection code unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Connection size code

0320

LOC-01 ISO

CCS01C0320$$$$

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CCS03200195

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 ISO

SKG27C0400$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04002795

Name Identifying order number

C3-A390B.45-40060

OAL Overall length

128.4 mm

WT Weight of item

1 kg
