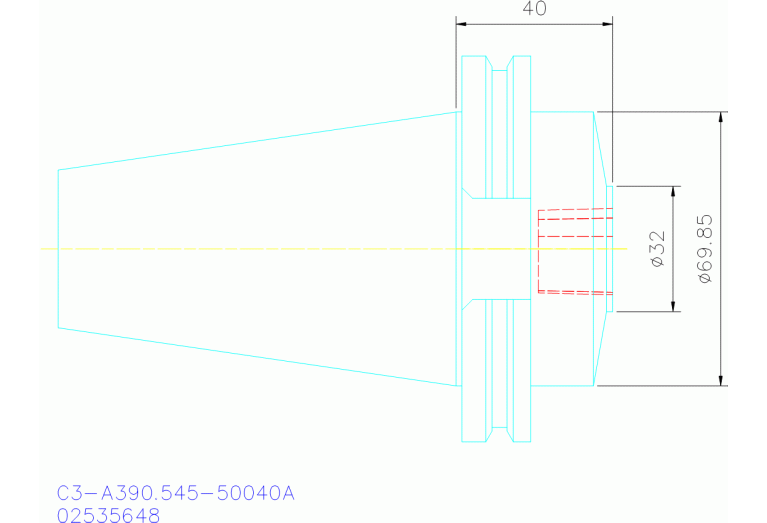

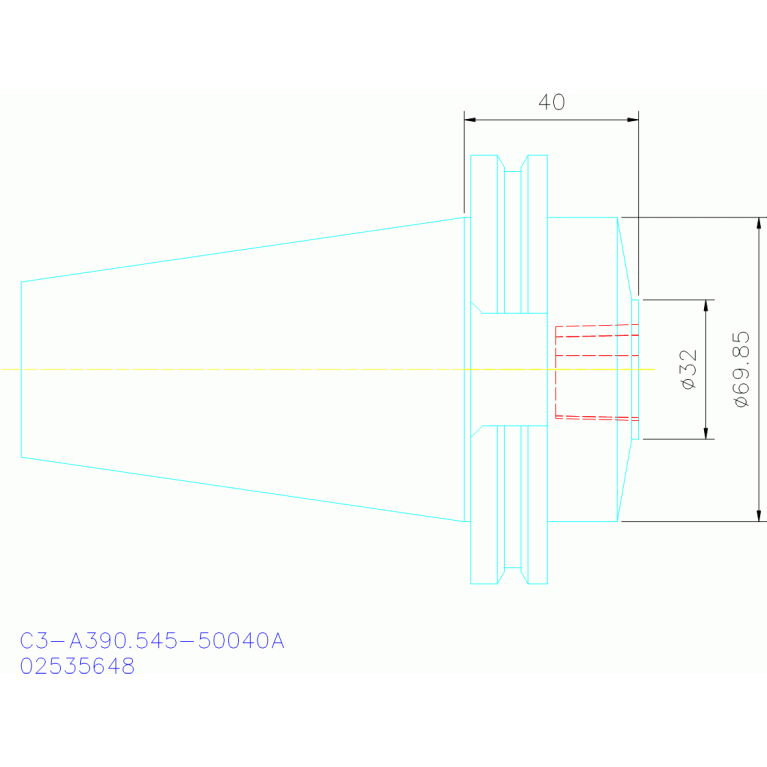

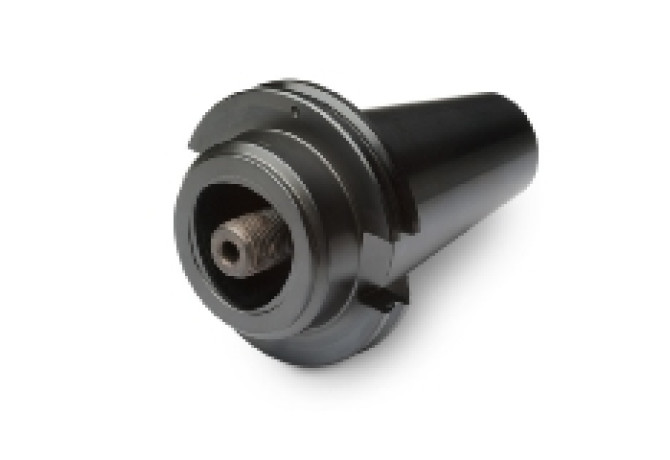

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric C3-A390.545-50040A

C3-A390.545-50040A

C3-A390.545-50040A C3-A390.545-50040A C3-A390.545-50040A C3-A390.545-50040A

C3-A390.545-50040A

Seco
Артикул: 02535648
В наличии
В корзину
Описание
Характеристики

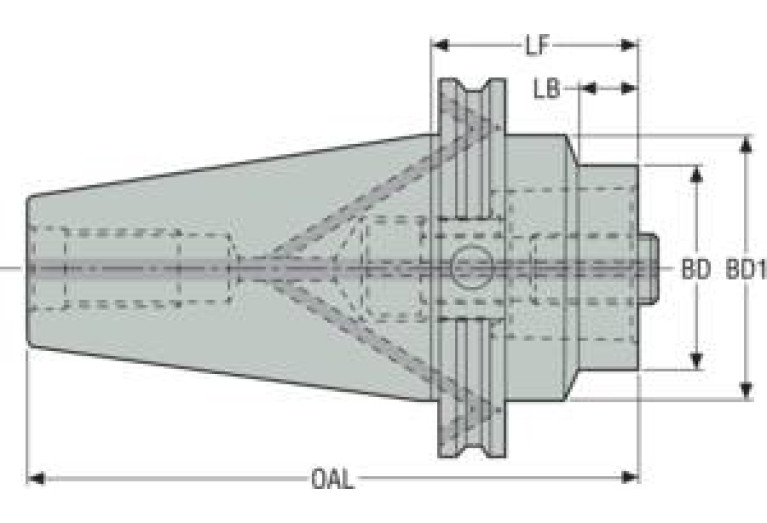

BD Body diameter
69.85 mm
BLQ Balance quality code
G6.3
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
CCS
CCUWS Connection code unit base
9
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0320
DCINTF Interference cutting diameter
32 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
SKG05003795
FamilyProducts
C3-A390.545-50040A
HAND Cutting direction
N - Neutral
ID Technical product number
02535648
Interface codes
J6 / J61
ISO
SKG37C0500$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
1.524 mm
LF Functional length
40 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
CCS Coromant Capto System SANDVIK
LOC-01 CCUWS Connection code unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Connection size code
0320
LOC-01 ISO
CCS01C0320$$$$
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CCS03200195
LOC-03 CCFMS Connection code form
37
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03 ISO
SKG37C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05003795
Name Identifying order number
C3-A390.545-50040A
OAL Overall length
141.732 mm
WT Weight of item
3.15 kg
