Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric C3-391.27-16056

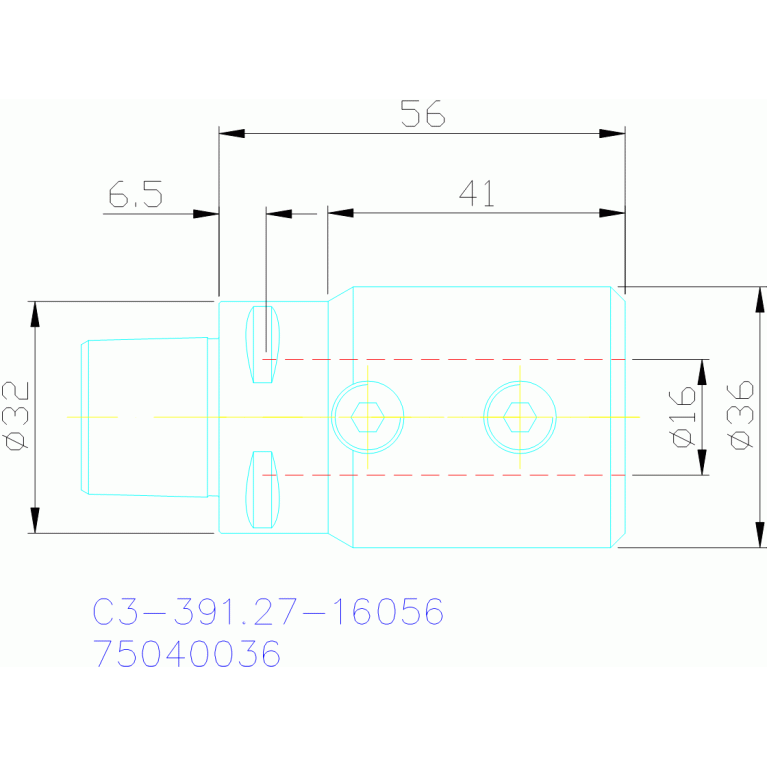

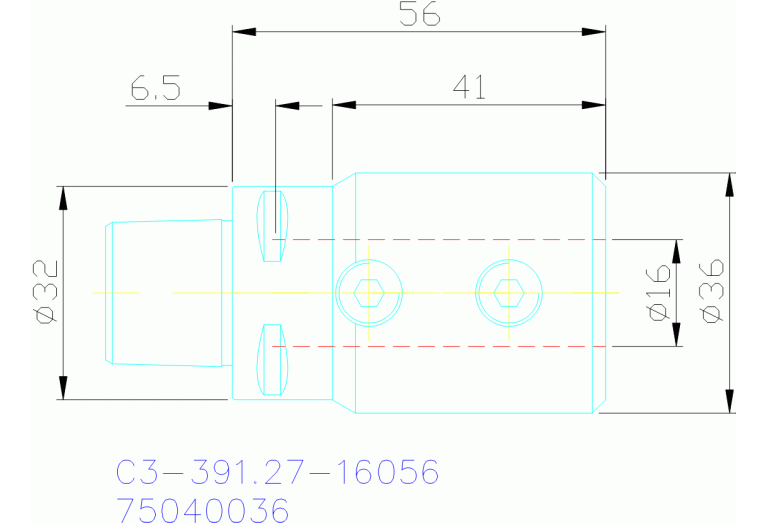

C3-391.27-16056

C3-391.27-16056 C3-391.27-16056 C3-391.27-16056 C3-391.27-16056

C3-391.27-16056

Seco
Артикул: 75040036
В наличии
В корзину
Описание
Характеристики
BD Body diameter
36 mm
BLQ Balance quality code
PB
CCFWS Connection code form
10
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
0
COMPC Company code
SO - SECO Tools
CZCWS Connection size code
0160
DCONWS Diameter
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
CCS03200185
FamilyProducts
C3-391.27-16056
HAND Cutting direction
N - Neutral
ID Technical product number
75040036
Interface codes
J6 / J61
ISO
CCS01C0320$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
41 mm
LOC-01 CCFWS Connection code form
10
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0160
LOC-01 DCONWS Diameter
16 mm
LOC-01 ISO
ZYL10G1600****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01601005
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0320
LOC-03 ISO
CCS01C0320$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS03200185
LPR Protruding length
56 mm
LSCX Clamping length maximum
49.5 mm
Name Identifying order number
C3-391.27-16056
OAL Overall length
75 mm
TA Taper angle
60 Degree
WT Weight of item
0.357 kg
