Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric C3-390.55-30060

C3-390.55-30060

C3-390.55-30060 C3-390.55-30060 C3-390.55-30060 C3-390.55-30060

C3-390.55-30060

Seco
Артикул: 75039808
В наличии
В корзину
Описание
Характеристики

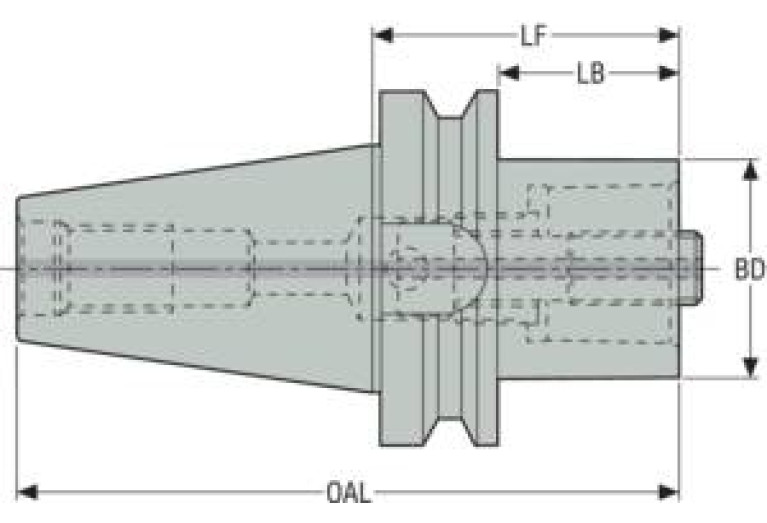

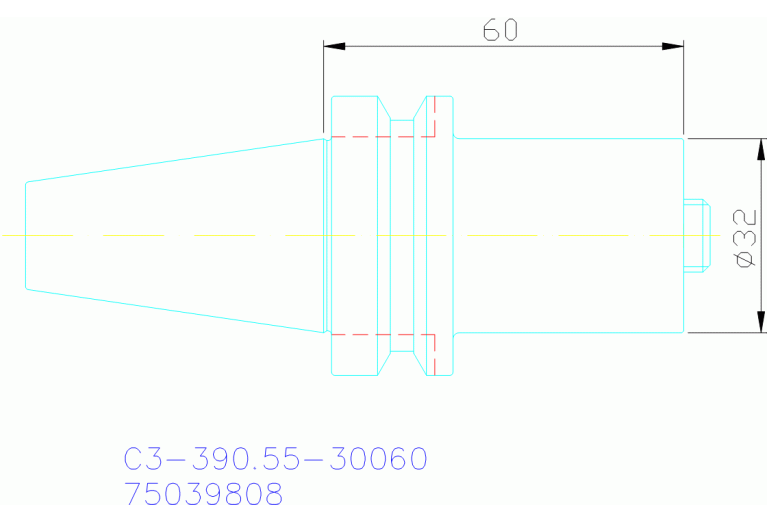

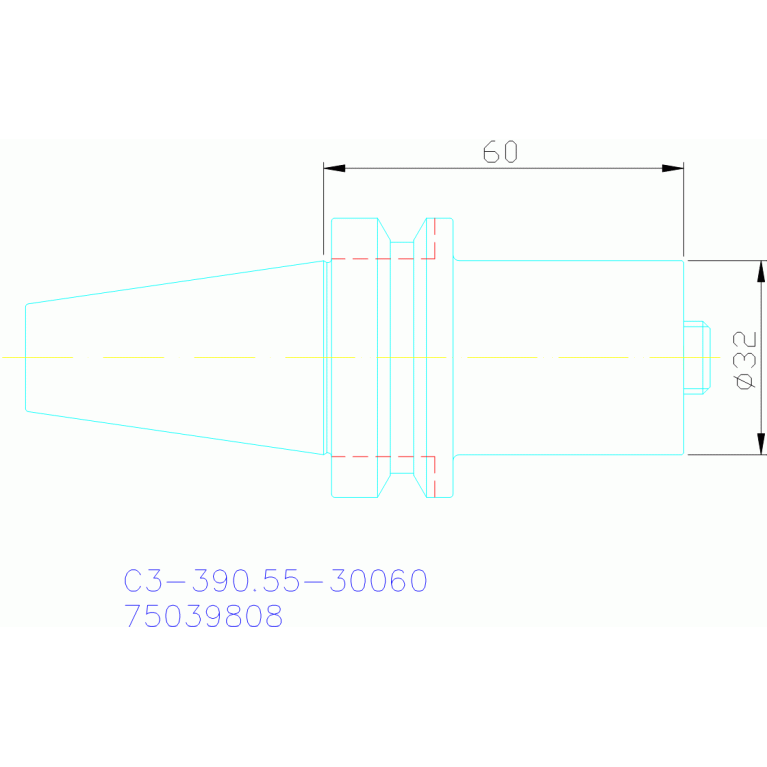

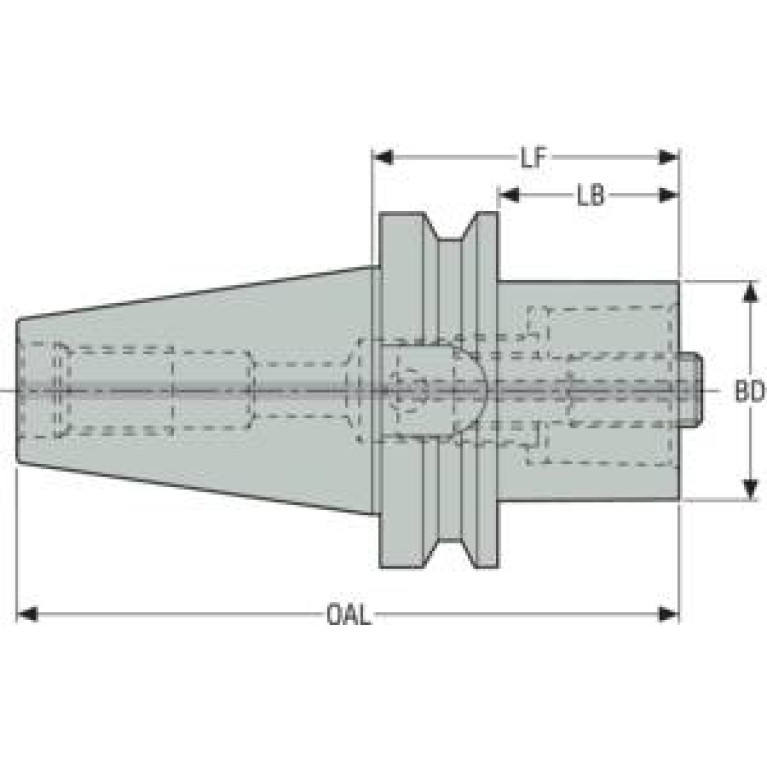

BD Body diameter
32 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
CCS
CCUWS Connection code unit base
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0320
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
SKG03005185
FamilyProducts
C3-390.55-30060
HAND Cutting direction
N - Neutral
ID Technical product number
75039808
Interface codes
J6 / J61
ISO
SKG51C0300$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
38 mm
LF Functional length
60 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
CCS Coromant Capto System SANDVIK
LOC-01 CCUWS Connection code unit base
8 non-dimensional size
LOC-01 CZCWS Connection size code
0320
LOC-01 ISO
CCS01C0320$$$$
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CCS03200185
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SO-CCS003001M0
LOC-03 CCFMS Connection code form
51
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0300
LOC-03 ISO
SKG51C0300$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG03005185
Name Identifying order number
C3-390.55-30060
OAL Overall length
108.4 mm
WT Weight of item
0.7 kg
