Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric BT40 SRK 12X85

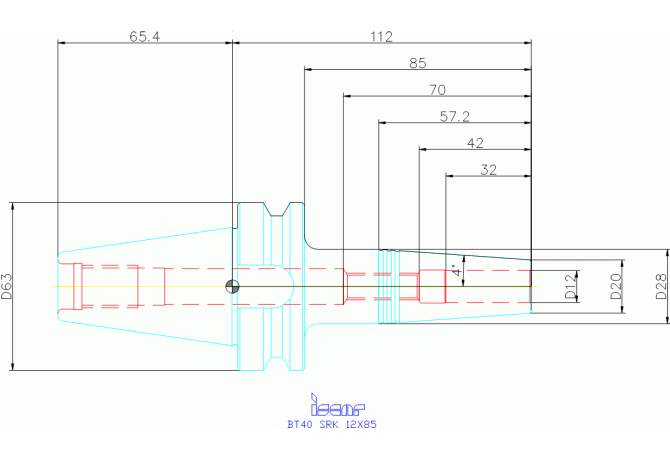

BT40 SRK 12X85

BT40 SRK 12X85 BT40 SRK 12X85

BT40 SRK 12X85

Iscar
Артикул: 4504588
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
2 - Axial adjustment possible
ADJHT Adujstment height property
0
BD Body diameter
28 mm
BLQ Balance quality code
G2.5
CCFWS Connection code form
01
CCONWS Connection count workpiece side
1
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0120
DCINTF Interference cutting diameter
20 mm
DCONWS Diameter
12 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
10/5/2016
DIN
SKG04005795
FamilyProducts
Thermal shrink chuck with BT MAS taper shank
HAND Cutting direction
N - Neutral
ID Technical product number
4504588
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LAM Actuation method
0 - manual clamping
LB Body length 1
85 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0120
LOC-01 DCONWS Diameter
12 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01200115
LOC-03 CCFMS Connection code form
57
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04005795
LPR Protruding length
112 mm
LSCN Clamping length minimum
32 mm
LSCX Clamping length maximum
42 mm
Name Identifying order number
BT40 SRK 12X85
RPMX Rotational speed maximum
25000 1/min
TA Taper angle
4 Degree
THSZMS Connection thread nominal size machine side
M16
WT Weight of item
1.22 kg
