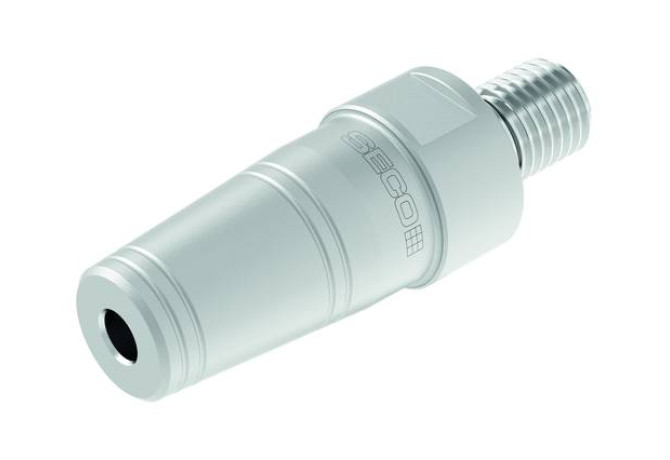

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric BS01656031070

BS01656031070

BS01656031070 BS01656031070 BS01656031070 BS01656031070

BS01656031070

Seco
Артикул: 02753125
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
2 - Axial adjustment possible
BD Body diameter
24 mm
BD Body diameter 2
32 mm
BLQ Balance quality code
PB
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
0
COMPC Company code
SO - SECO Tools
CZCWS Connection size code
0100
DCONWS Diameter
10 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
FamilyProducts
BS01656031070
HAND Cutting direction
N - Neutral
ID Technical product number
02753125
Interface codes
/ J61
ISO
SCM01C0160$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
54 mm
LF Functional length
39 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0100
LOC-01 DCONWS Diameter
10 mm
LOC-01 ISO
ZYL01G1000****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01000105
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SCM
LOC-03 CZCMS Connection size code
0300
LOC-03 ISO
SCM01C0160$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LPR Protruding length
70 mm
LSCX Clamping length maximum
31 mm
Name Identifying order number
BS01656031070
OAL Overall length
92.75 mm
TA Taper angle
4.5 Degree
WT Weight of item
0.332 kg
