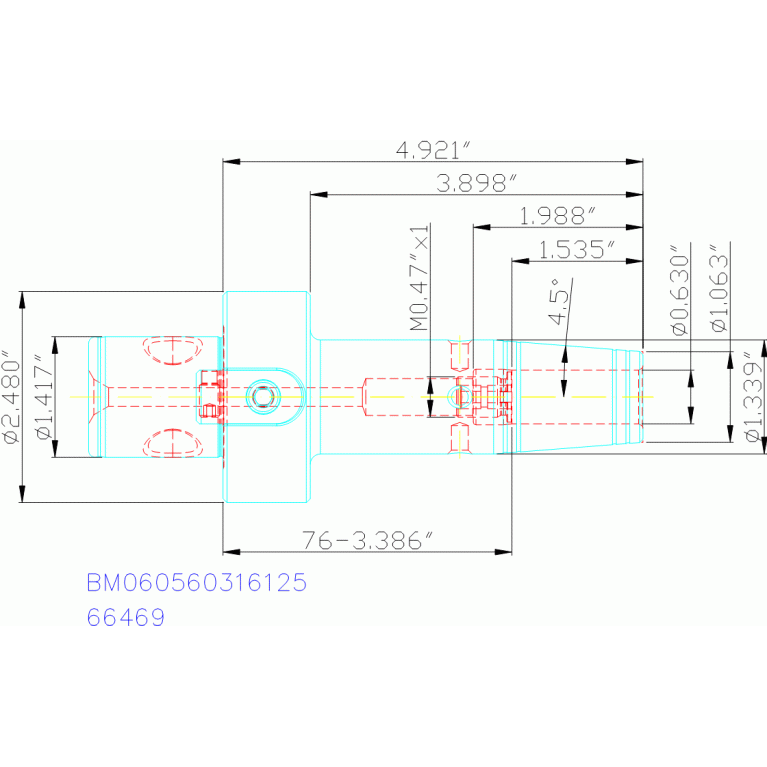

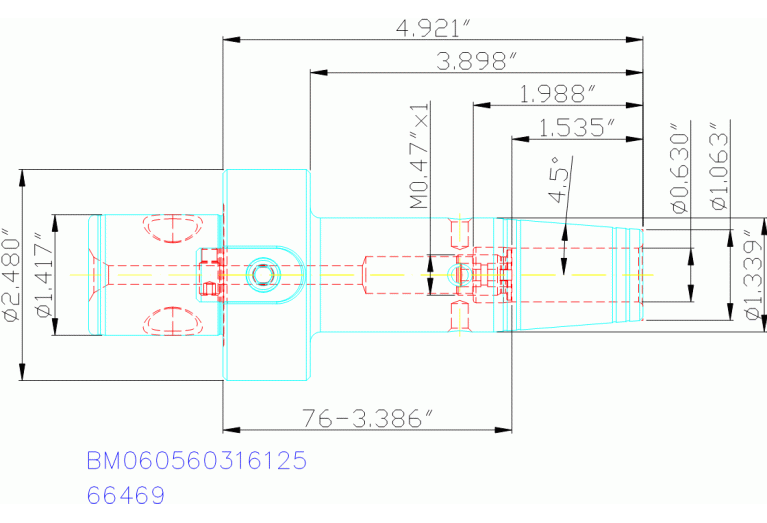

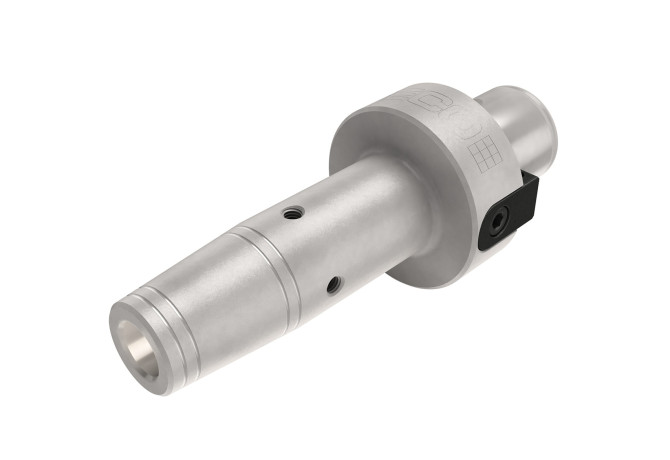

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric BM060560316125

BM060560316125

Артикул: 02753133

В наличии

В корзину

Описание

Характеристики

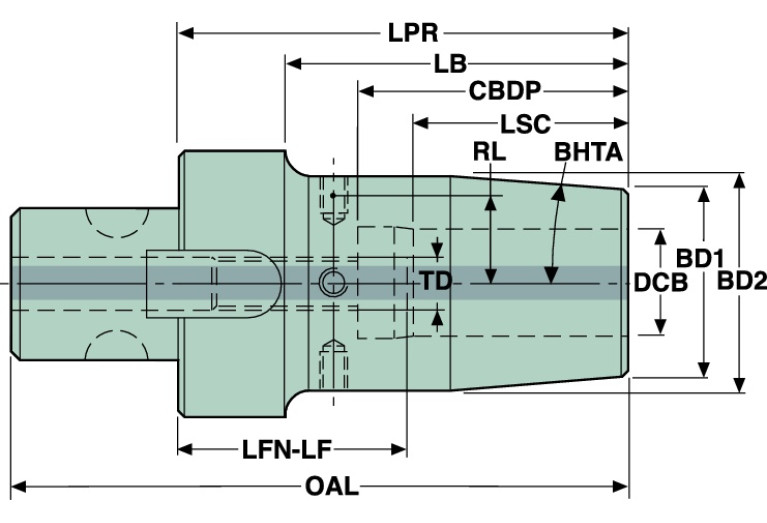

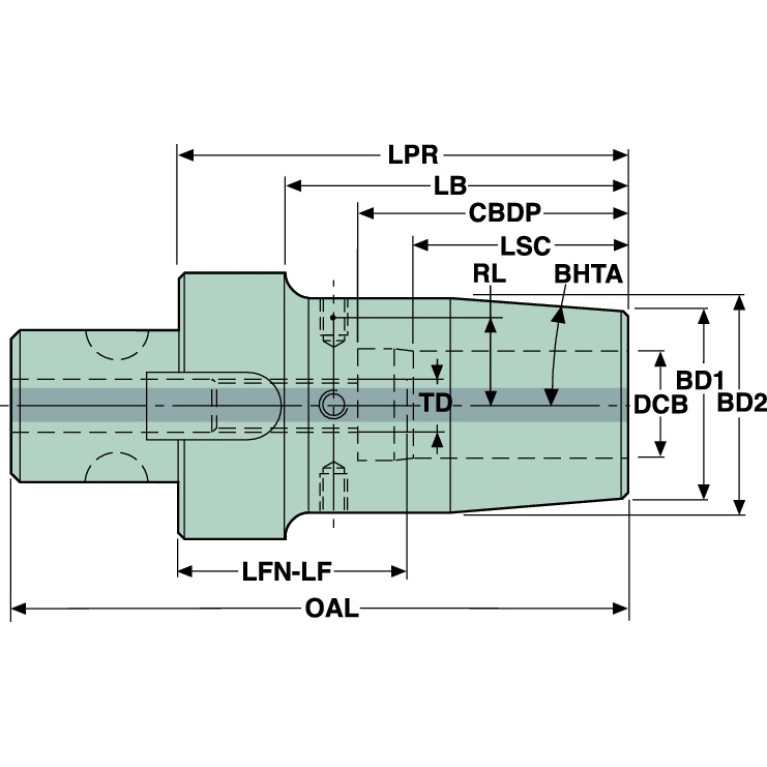

BD Body diameter

34 mm

BLQ Balance quality code

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

COMPC Company code

SO - SECO Tools

CZCWS Connection size code

0160

DCINTF Interference cutting diameter

27 mm

DCONWS Diameter

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/7/2017

FamilyProducts

BM060560316125

HAND Cutting direction

N - Neutral

ID Technical product number

02753133

Interface codes

/ J61

ISO

GMS01C0630$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

99 mm

LF Functional length

86 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CZCWS Connection size code

0160

LOC-01 DCONWS Diameter

16 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

GMS Graflex modular connection SECO

LOC-03 CZCMS Connection size code

0060

LOC-03 ISO

GMS01C0630$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LPR Protruding length

125 mm

LSCX Clamping length maximum

39 mm

Name Identifying order number

BM060560316125

OAL Overall length

165 mm

TA Taper angle

4.5 Degree

THSZWS Connection thread nominal size workpiece side

M12x1

WT Weight of item

1.5 kg
