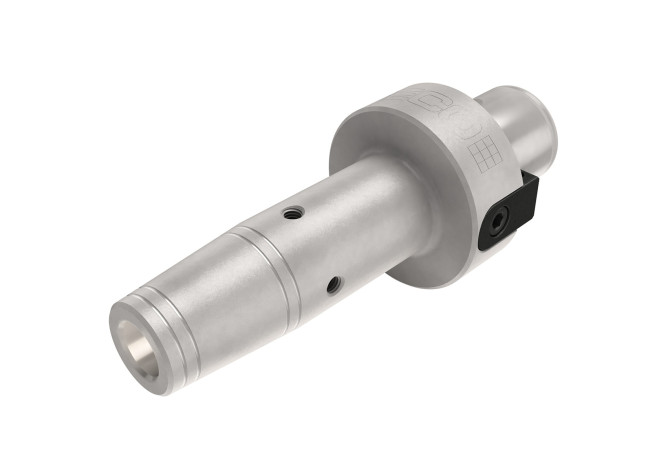

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric BM050560310110

BM050560310110

Артикул: 02753131

В наличии

В корзину

Описание

Характеристики

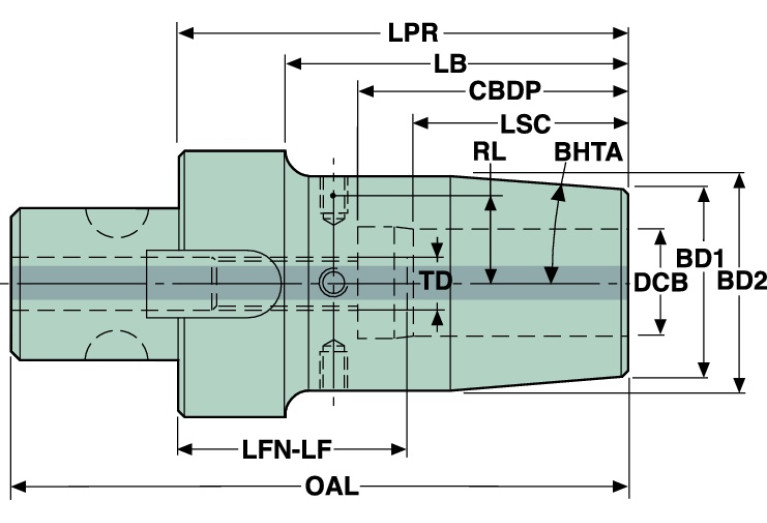

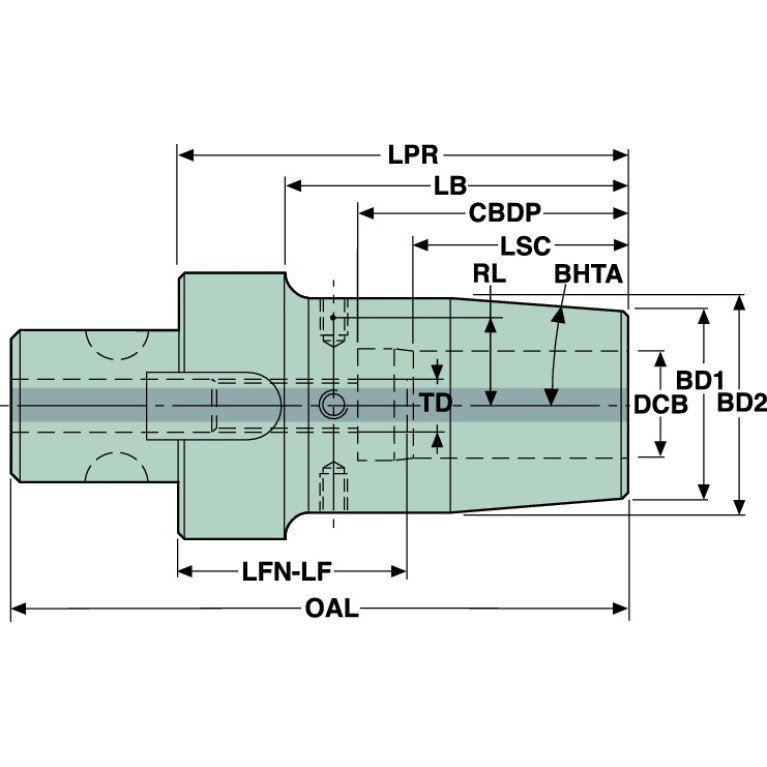

BD Body diameter

32 mm

BD Body diameter 2

32 mm

BLQ Balance quality code

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

COMPC Company code

SO - SECO Tools

CZCWS Connection size code

0100

DCINTF Interference cutting diameter

24 mm

DCONWS Diameter

10 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/7/2017

FamilyProducts

BM050560310110

HAND Cutting direction

N - Neutral

ID Technical product number

02753131

Interface codes

/ J61

ISO

GMS01C0500$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

90 mm

LF Functional length

79 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CZCWS Connection size code

0100

LOC-01 DCONWS Diameter

10 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

GMS Graflex modular connection SECO

LOC-03 CZCMS Connection size code

0050

LOC-03 ISO

GMS01C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LPR Protruding length

110 mm

LSCX Clamping length maximum

31 mm

Name Identifying order number

BM050560310110

OAL Overall length

140 mm

TA Taper angle

4.5 Degree

THSZWS Connection thread nominal size workpiece side

M8x1

WT Weight of item

0.88 kg
