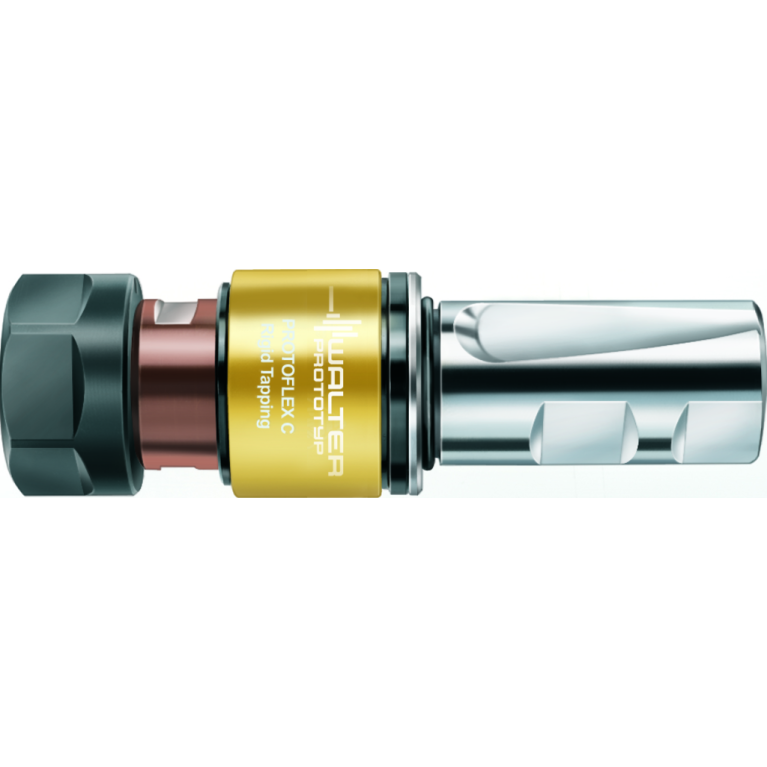

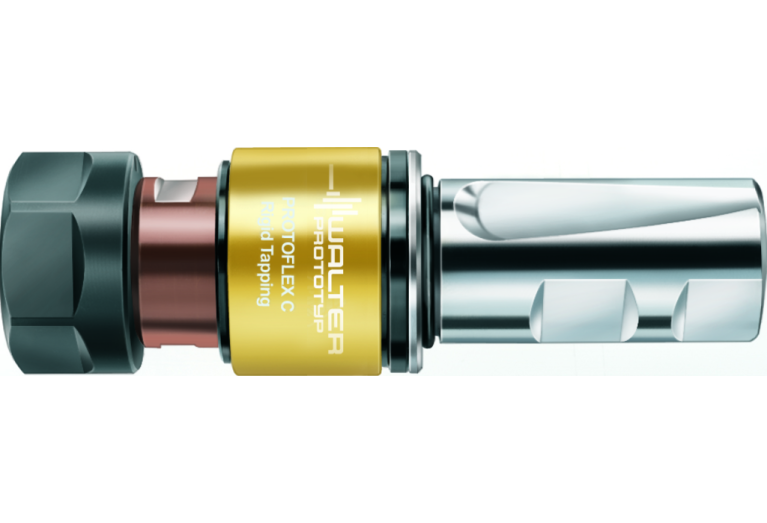

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric AB035-W25-ER20-069

AB035-W25-ER20-069

AB035-W25-ER20-069 AB035-W25-ER20-069 AB035-W25-ER20-069

AB035-W25-ER20-069

Walter
Артикул: 7209472
В наличии
В корзину
Описание
Характеристики

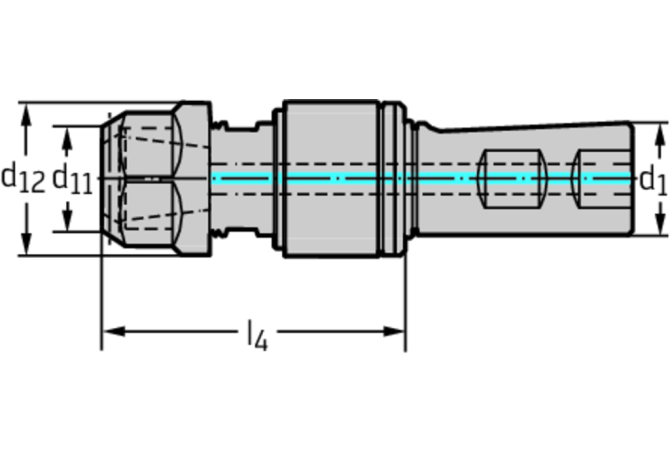

BD Body diameter 2
34.6 mm
CCFWS Form
02
CCSWS Style
5
CCTWS Type
SZD
CCUWS Unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0200
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL02501815
DLN Diameter lock nut
33.7 mm
FamilyProducts
Synchronous thread cutting adaptor AB035-W
HAN Adjustment nut height
24 mm
ID Technical product number
7209472
Interface codes
J6 / J61
ISO
ZYL18G2500h$06
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Length 2
40.1 mm
LF Functional length
106.5 mm
LOC-01 CCFWS Form
02
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
0200
LOC-01 ISO
SZD02C0200****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD02000295
LOC-03 CCFMS Form
18
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL18G2500h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501815
LPR Protruding length
68.7 mm
LS Shank length
50.8 mm
LSCX Clamping length maximum
50.8 mm
Name Identifying order number
AB035-W25-ER20-069
OAL Overall length
119.5 mm
RPMX Rotational speed maximum
8000 1/min
TCDCON ISO-tolerance class connection bore diameter
h6
TCDCONMS ISO-tolerance class shank diameter
h6
WT Weight of item
0.757 kg
