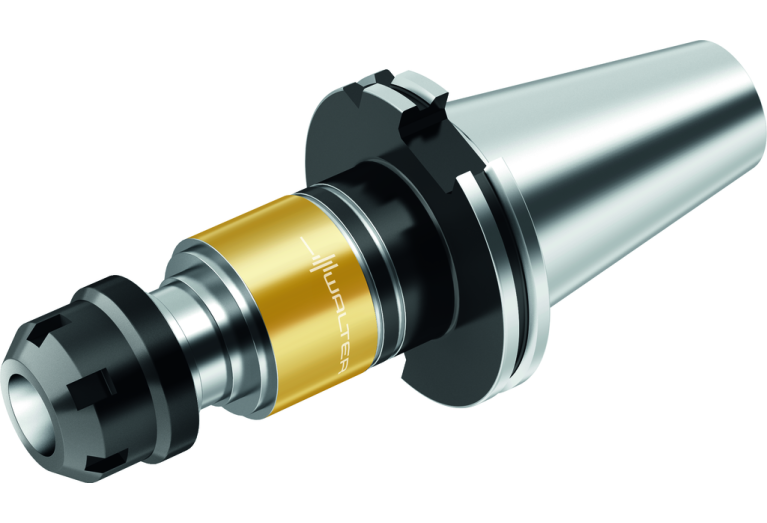

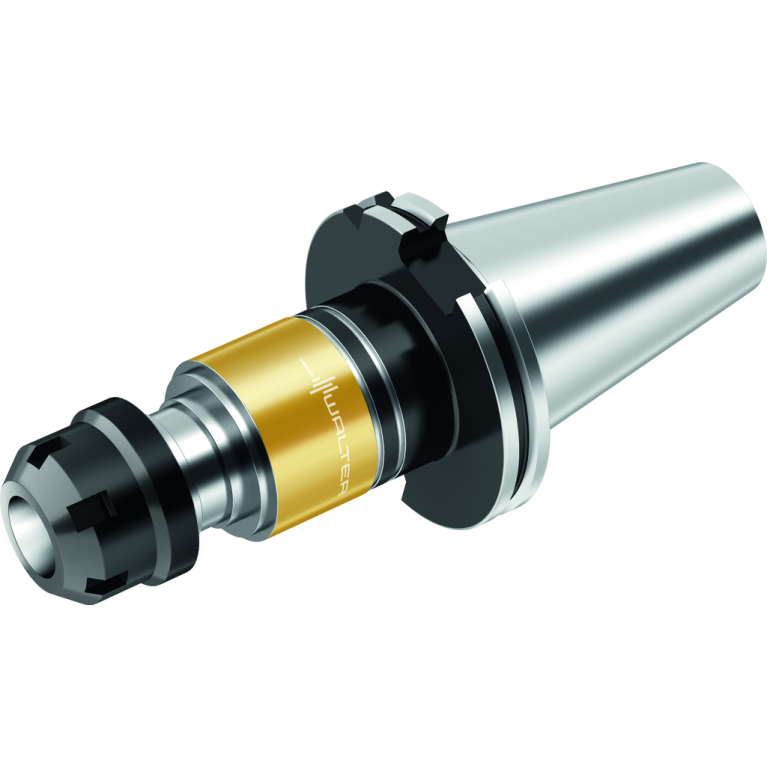

AB035-S50-ER25-126

Артикул: 7209465

В наличии

В корзину

Описание

Характеристики

BD Body diameter 2

44 mm

CCFWS Form

CCSWS Style

CCTWS Type

SZD

CCUWS Unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

0250

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DF Flange diameter

97.5 mm

DIN

SKG05001195

DLN Diameter lock nut

42 mm

FamilyProducts

Synchronous thread cutting adaptor AB035-S

HAN Adjustment nut height

25 mm

ID Technical product number

7209465

Interface codes

J6 / J61

ISO

SKG11C0500$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Length 2

106.55 mm

LF Functional length

112.1 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

SZD Collet adapter DIN / ISO

LOC-01 CCUWS Unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Size code

0250

LOC-01 ISO

SZD02C0250****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZD02500295

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SKG steep taper shank

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0500

LOC-03 DCONMS Diameter

25.8 mm

LOC-03 ISO

SKG11C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05001195

LPR Protruding length

125.6 mm

LS Shank length

101.75 mm

Name Identifying order number

AB035-S50-ER25-126

OAL Overall length

227.2 mm

RPMX Rotational speed maximum

8000 1/min

STDLET Standard letter to the standard number

STDNO Standard

ISO7388-1

THSZMS Connection thread nominal size machine side

M24

WT Weight of item

3.501 kg
