Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric AB035-S40-ER25-122

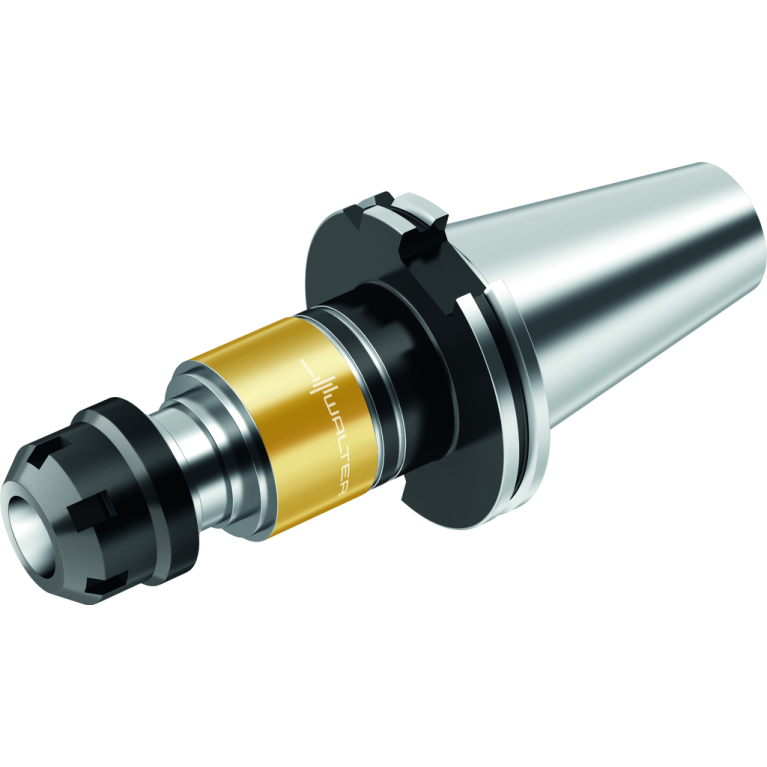

AB035-S40-ER25-122

AB035-S40-ER25-122 AB035-S40-ER25-122 AB035-S40-ER25-122

AB035-S40-ER25-122

Walter
Артикул: 7209463
В наличии
В корзину
Описание
Характеристики
BD Body diameter 2
44 mm
CCFWS Form
02
CCSWS Style
5
CCTWS Type
SZD
CCUWS Unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0250
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DF Flange diameter
63.55 mm
DIN
SKG04001195
DLN Diameter lock nut
42 mm
FamilyProducts
Synchronous thread cutting adaptor AB035-S
HAN Adjustment nut height
25 mm
ID Technical product number
7209463
Interface codes
J6 / J61
ISO
SKG11C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Length 2
102.55 mm
LF Functional length
108.1 mm
LOC-01 CCFWS Form
02
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
0250
LOC-01 ISO
SZD02C0250****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD02500295
LOC-03 CCFMS Form
11
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SKG steep taper shank
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
25.8 mm
LOC-03 ISO
SKG11C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04001195
LPR Protruding length
121.6 mm
LS Shank length
68.4 mm
Name Identifying order number
AB035-S40-ER25-122
OAL Overall length
189.85 mm
RPMX Rotational speed maximum
8000 1/min
STDLET Standard letter to the standard number
AD
STDNO Standard
ISO7388-1
THSZMS Connection thread nominal size machine side
M16
WT Weight of item
1.621 kg
