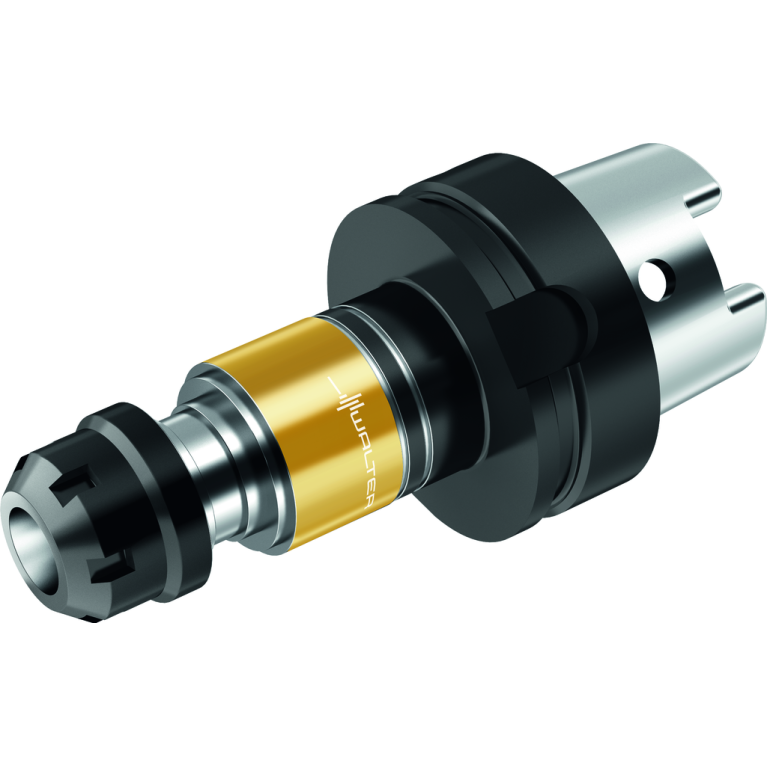

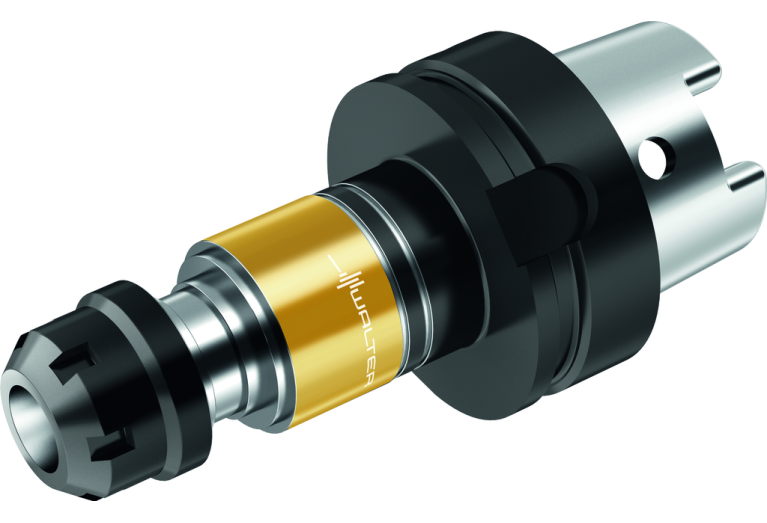

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric AB035-H63-ER20-108

AB035-H63-ER20-108

AB035-H63-ER20-108 AB035-H63-ER20-108 AB035-H63-ER20-108

AB035-H63-ER20-108

Walter
Артикул: 7209468
В наличии
В корзину
Описание
Характеристики
BD Body diameter 2
35 mm
CCFWS Form
02
CCSWS Style
5
CCTWS Type
SZD
CCUWS Unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0200
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DF Flange diameter
63 mm
DIN
HSK06300195
DLN Diameter lock nut
33.7 mm
FamilyProducts
Synchronous thread cutting adaptor AB035-H
HAN Adjustment nut height
24 mm
ID Technical product number
7209468
Interface codes
J6 / J61
ISO
HSK01C0630$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Length 2
82.2 mm
LF Functional length
95.1 mm
LOC-01 CCFWS Form
02
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
0200
LOC-01 ISO
SZD02C0200****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD02000295
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
HSK Hollow taper shank
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0630
LOC-03 DCONMS Diameter
63 mm
LOC-03 ISO
HSK01C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300195
LPR Protruding length
108.1 mm
LS Shank length
32 mm
Name Identifying order number
AB035-H63-ER20-108
OAL Overall length
140 mm
RPMX Rotational speed maximum
8000 1/min
STDLET Standard letter to the standard number
A
STDNO Standard
ISO12164-1
WT Weight of item
1.098 kg
