Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric AB035-H100-ER40-164

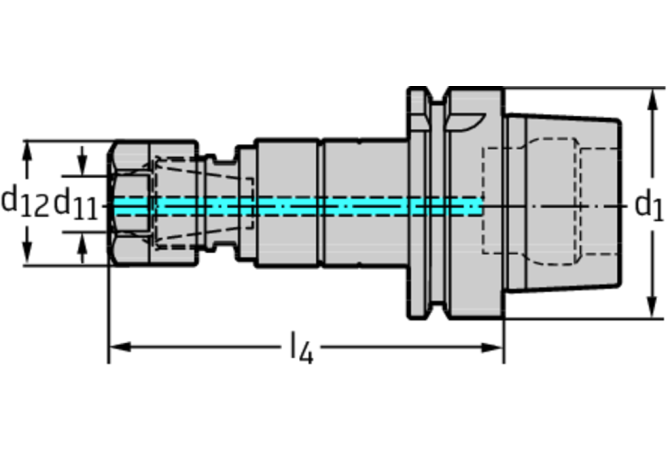

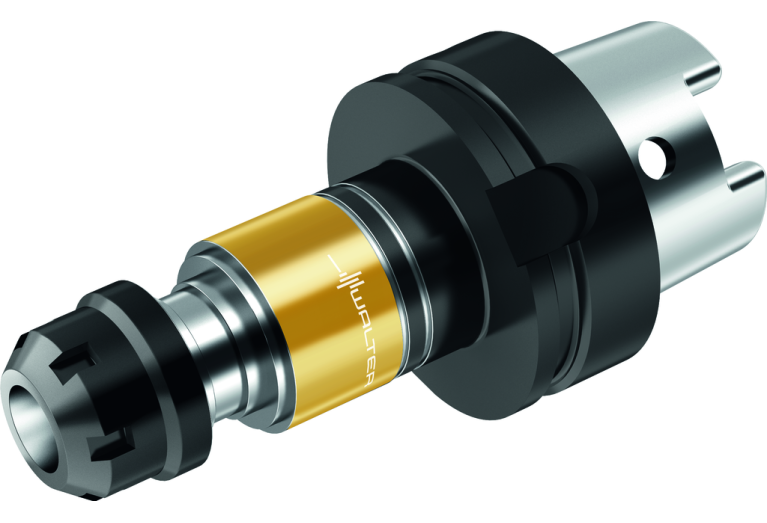

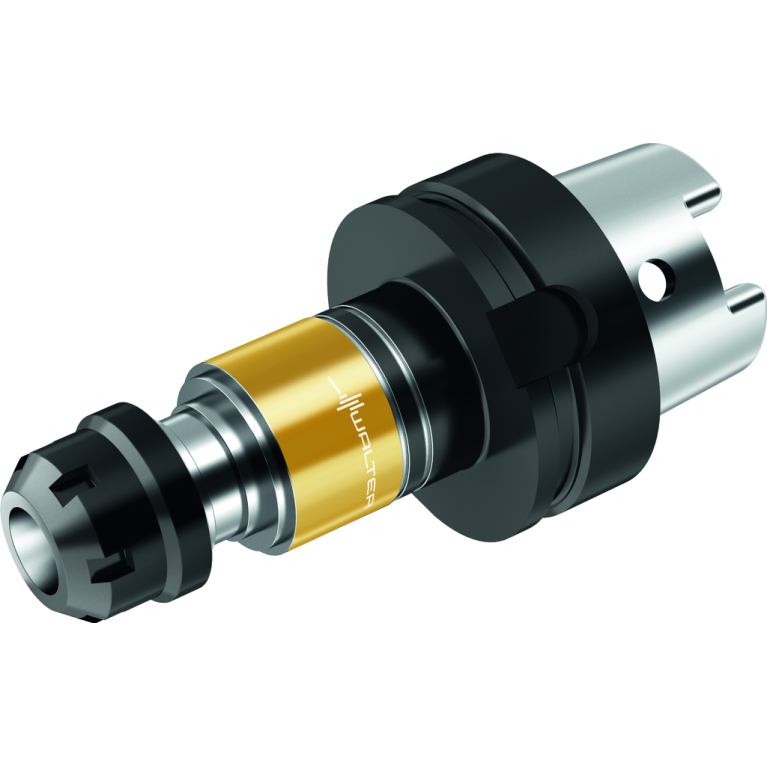

AB035-H100-ER40-164

AB035-H100-ER40-164 AB035-H100-ER40-164 AB035-H100-ER40-164

AB035-H100-ER40-164

Walter
Артикул: 7209443
В наличии
В корзину
Описание
Характеристики
BD Body diameter 2
62 mm
CCFWS Form
02
CCSWS Style
5
CCTWS Type
SZD
CCUWS Unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0400
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DF Flange diameter
100 mm
DIN
HSK10000195
DLN Diameter lock nut
62.7 mm
FamilyProducts
Synchronous thread cutting adaptor AB035-H
HAN Adjustment nut height
30.5 mm
ID Technical product number
7209443
Interface codes
J6 / J61
ISO
HSK01C1000$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Length 2
134.4 mm
LF Functional length
146.6 mm
LOC-01 CCFWS Form
02
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
0400
LOC-01 ISO
SZD02C0400****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD04000295
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
HSK Hollow taper shank
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
1000
LOC-03 DCONMS Diameter
100 mm
LOC-03 ISO
HSK01C1000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK10000195
LPR Protruding length
163.4 mm
LS Shank length
50 mm
Name Identifying order number
AB035-H100-ER40-164
OAL Overall length
213.3 mm
RPMX Rotational speed maximum
8000 1/min
STDLET Standard letter to the standard number
A
STDNO Standard
ISO12164-1
WT Weight of item
4.362 kg
