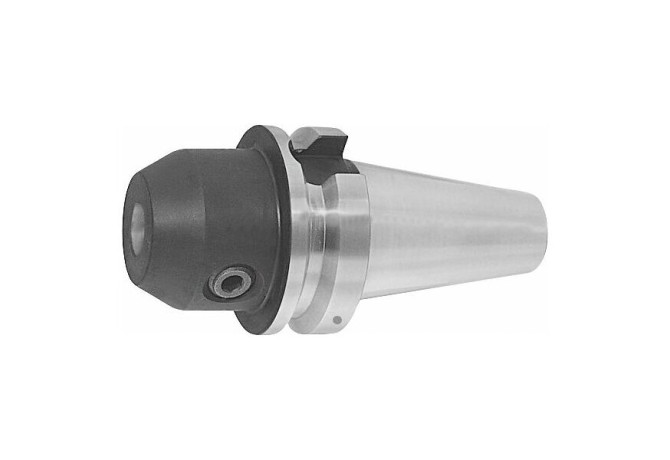

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric 302595 12

302595 12

Артикул: 302595 12

В наличии

В корзину

Описание

Характеристики

BD Body diameter

42 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0120

DCONWS Diameter

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DF Flange diameter

46 mm

DIN

SKG03005795

FamilyProducts

Side lock chuck Form AD

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0120

LOC-01 DCONWS Diameter

12 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01201015

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0300

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG03005795

LPR Protruding length

50 mm

LSCX Clamping length maximum

51 mm

Name Identifying order number

302595 12

OAL Overall length

98.4 mm

TA Taper angle

25 Degree

WT Weight of item

0.62 kg
