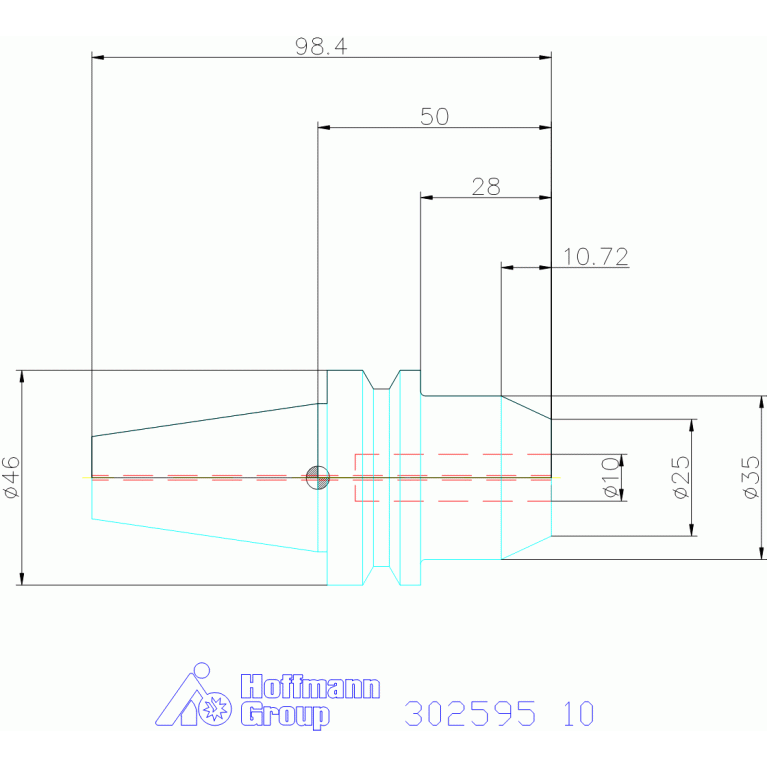

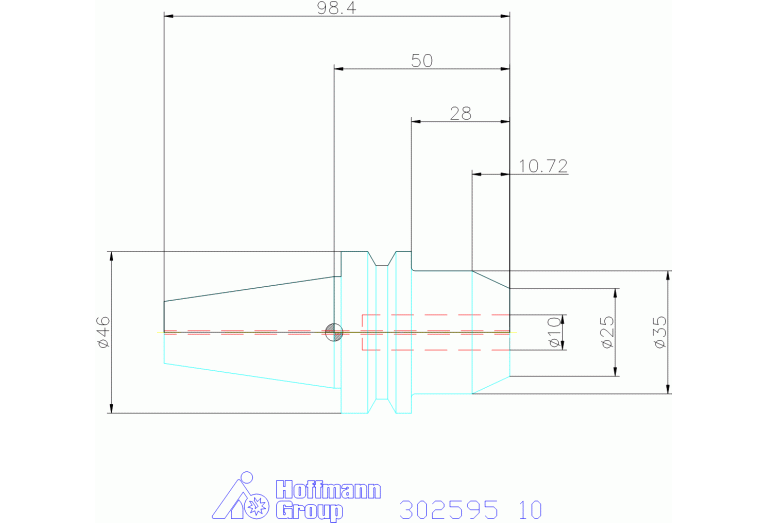

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric 302595 10

302595 10

302595 10 302595 10 302595 10

302595 10

Hoffmann Group
Артикул: 302595 10
В наличии
В корзину
Описание
Характеристики
BD Body diameter
35 mm
CCFWS Connection code form
10
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0100
DCONWS Diameter
10 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DF Flange diameter
46 mm
DIN
SKG03005795
FamilyProducts

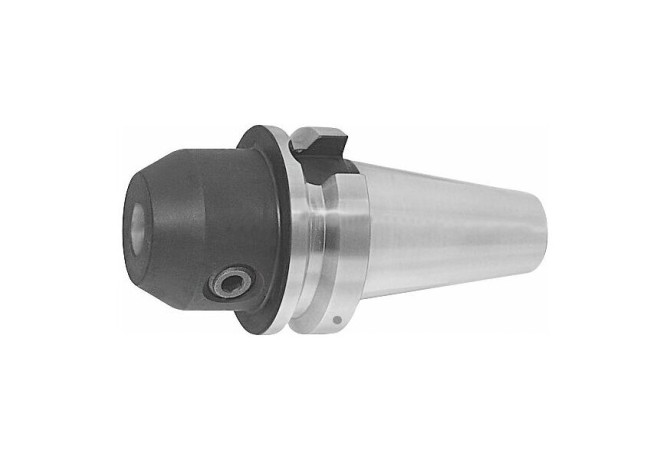

Side lock chuck Form AD
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LOC-01 CCFWS Connection code form
10
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0100
LOC-01 DCONWS Diameter
10 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01001015
LOC-03 CCFMS Connection code form
57
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0300
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG03005795
LPR Protruding length
50 mm
LSCX Clamping length maximum
42 mm
Name Identifying order number
302595 10
OAL Overall length
98.4 mm
TA Taper angle
25 Degree
WT Weight of item
0.555 kg
