Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric 301368 M16X260

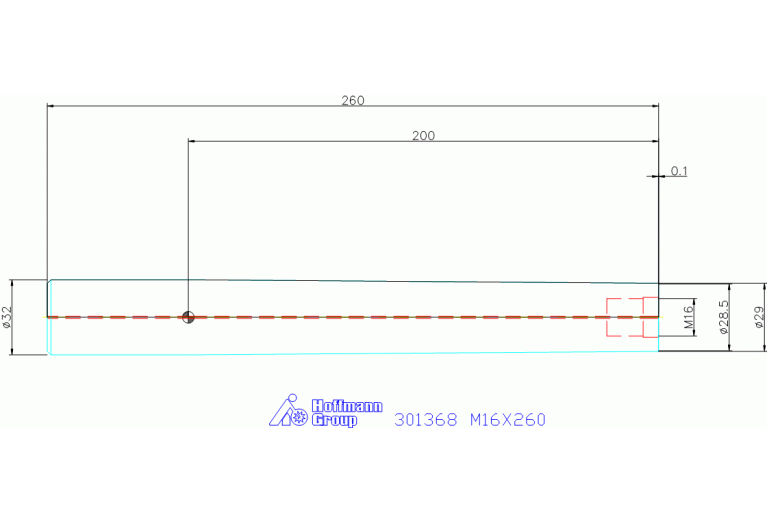

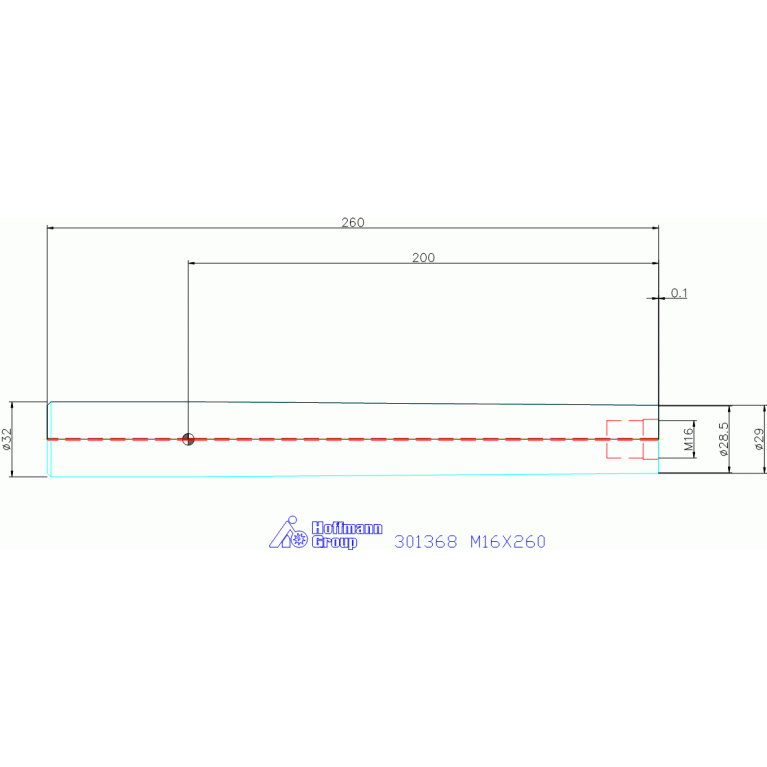

301368 M16X260

Артикул: 301368 M16X260

В наличии

В корзину

Описание

Характеристики

BD Body diameter

28.5 mm

BD Body diameter 2

32 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

SAD

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0160

DCINTF Interference cutting diameter

17 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL03200115

FamilyProducts

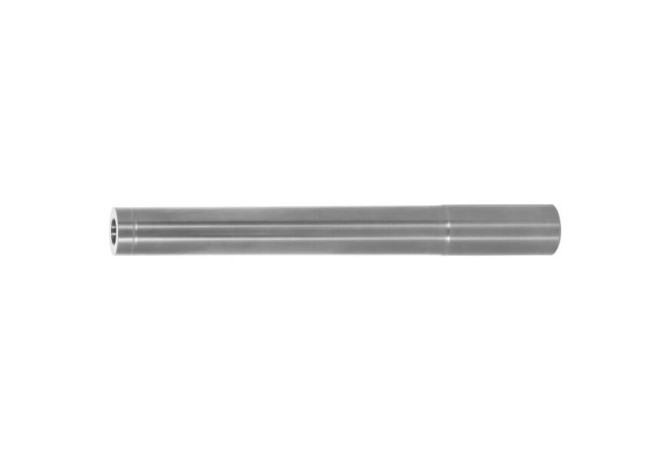

Solid carbide extension for threaded copy milling cutters Ø d = 32 mm

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SAD Screw mounting

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0160

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SAD01600115

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03200115

LPR Protruding length

200 mm

LS Shank length

60 mm

LSCX Clamping length maximum

26 mm

Name Identifying order number

301368 M16X260

OAL Overall length

260 mm

WT Weight of item

2.66 kg
