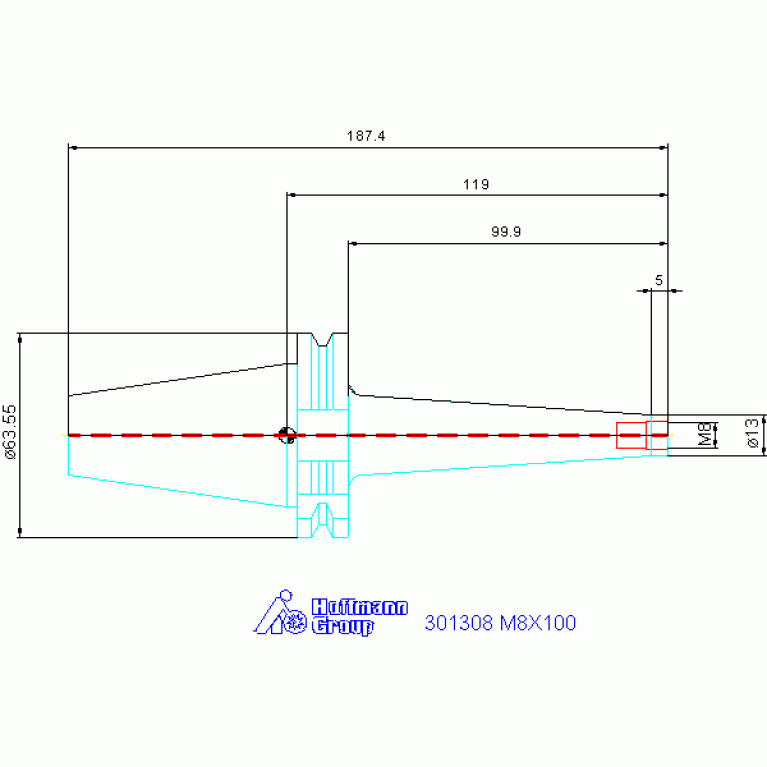

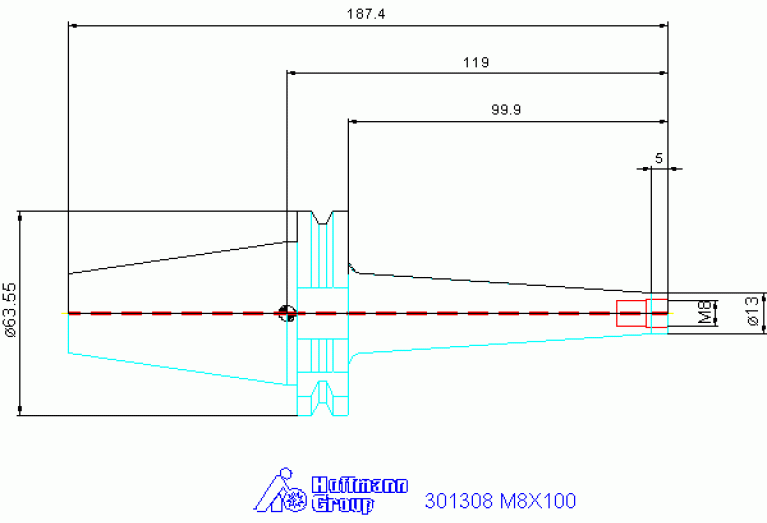

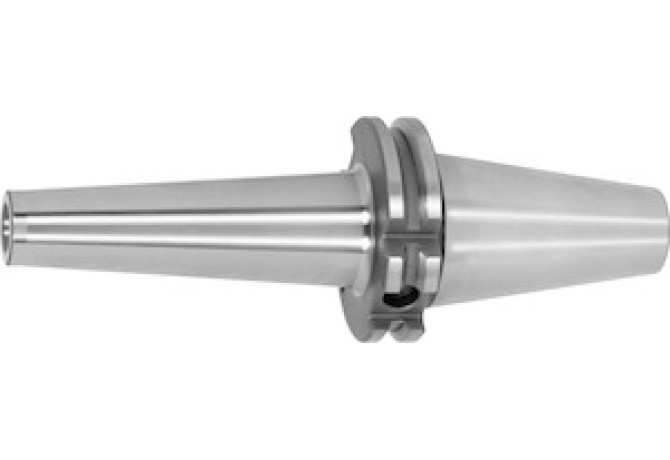

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric 301308 M8X100

301308 M8X100

301308 M8X100 301308 M8X100 301308 M8X100

301308 M8X100

Hoffmann Group
Артикул: 301308 M8X100
В наличии
В корзину
Описание
Характеристики
BD Body diameter
13 mm
BD Body diameter 2
25 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
SAD
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0080
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DF Flange diameter
63.55 mm
DIN
SKG04001115
FamilyProducts
GARANT Arbor for screw-in milling cutters with thread
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LF Functional length
119 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SAD Screw mounting
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0080
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAD00800115
LOC-03 CCFMS Connection code form
11
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04001115
LPR Protruding length
119 mm
Name Identifying order number
301308 M8X100
OAL Overall length
187.4 mm
WT Weight of item
1 kg
