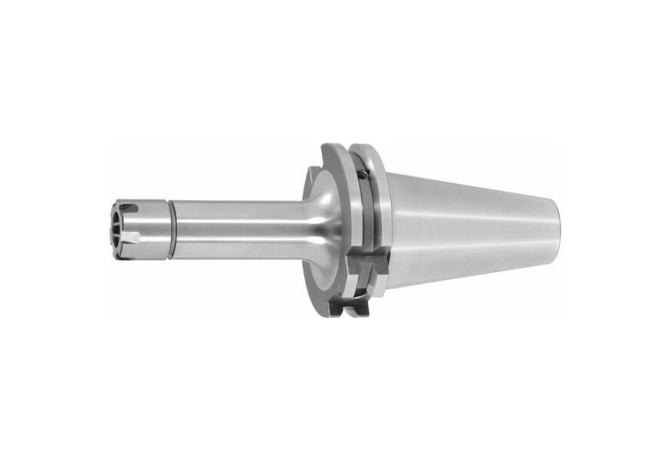

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric 300652 16

300652 16

300652 16 300652 16 300652 16

300652 16

Hoffmann Group
Артикул: 300652 16
В наличии
В корзину
Описание
Характеристики

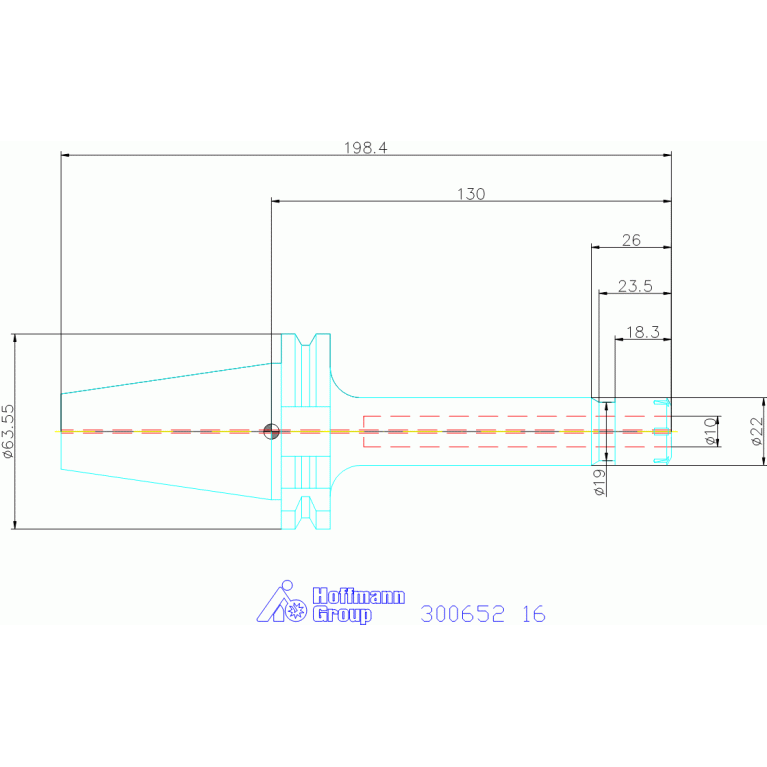

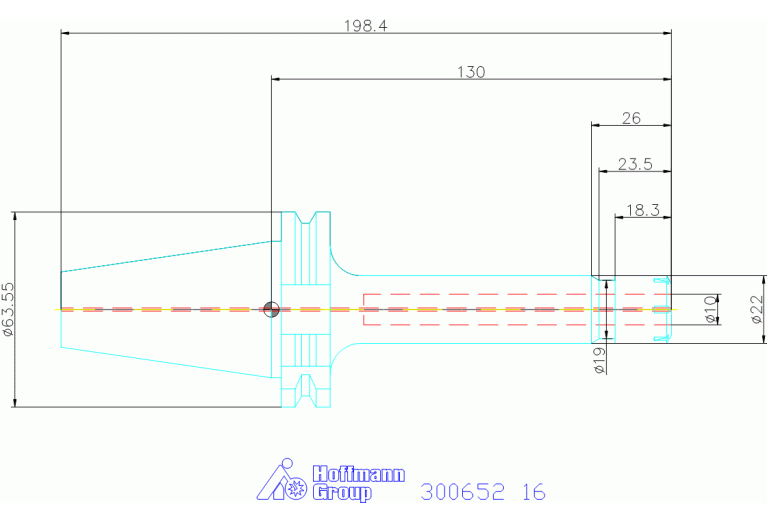

BD Body diameter
19 mm
BD Body diameter 2
22 mm
CCFWS Connection code form
02
CCSWS Connection code style
5
CCTWS Connection code type
SZD
CCUWS Connection code unit base
9
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0160
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DF Flange diameter
63.55 mm
DIN
SKG04001795
DLN Diameter lock nut
22 mm
FamilyProducts
ER collet chuck mini / slim Form ADB
HAN Adjustment nut height
18.3 mm
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LF Functional length
130 mm
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Connection code unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Connection size code
0160
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD01600295
LOC-03 CCFMS Connection code form
17
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04001795
LPR Protruding length
130 mm
Name Identifying order number
300652 16
OAL Overall length
188.4 mm
WT Weight of item
1 kg
