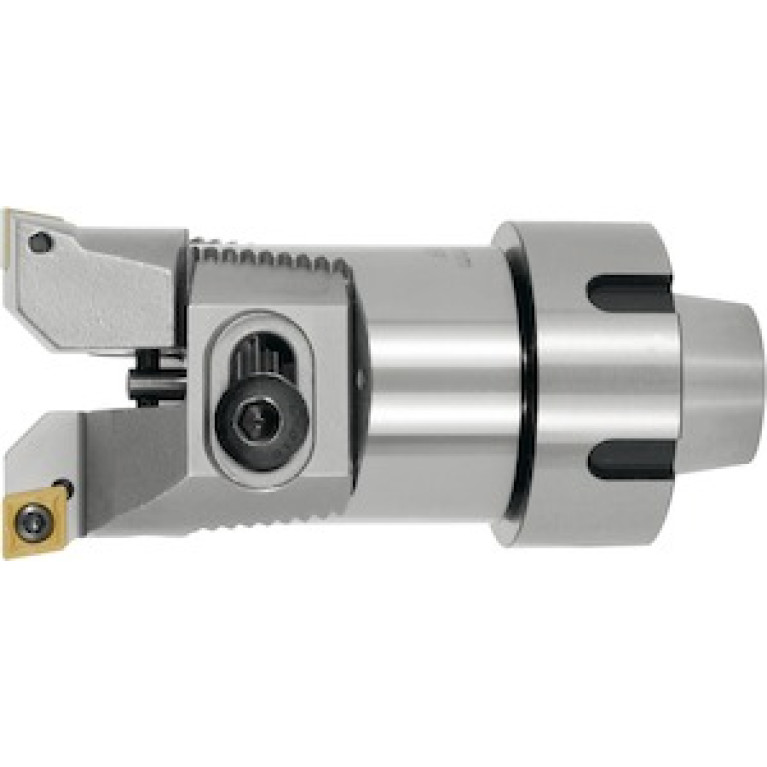

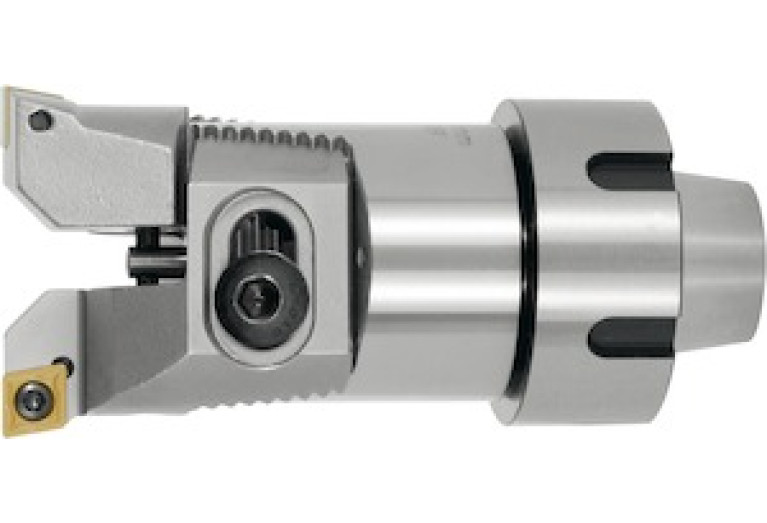

Главная Каталог продукции Toolunited 17 305-16 - Boring head 237609 ER40

237609 ER40

Артикул: 237609 ER40

В наличии

В корзину

Описание

Характеристики

BDX Body diameter maximum

62.7 mm

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

87.5 mm

Delivery state valid from

1/11/2017

DIN

SZD04000285

FamilyProducts

Twin edged head ER

Interface codes

J6 /

ISYC Subclass

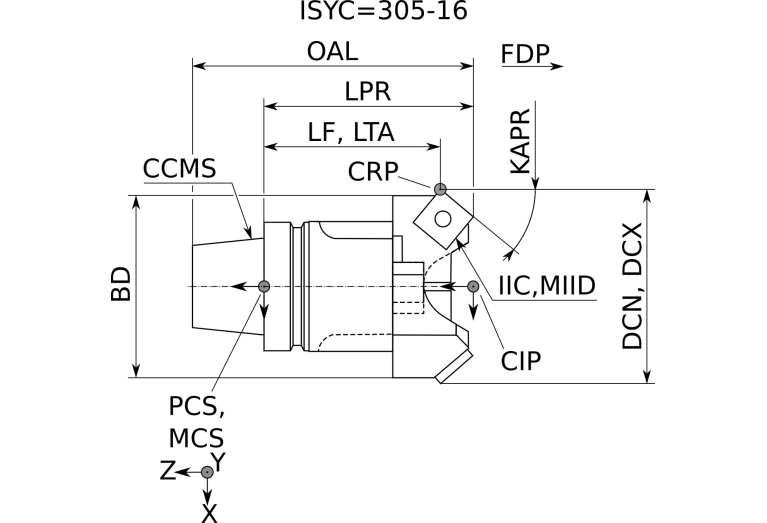

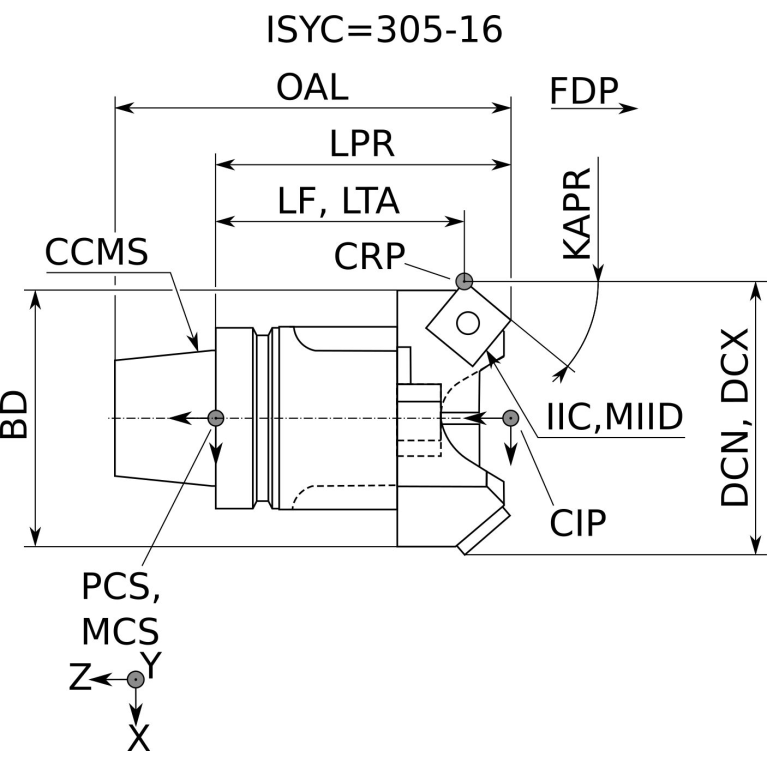

305-16 - Boring head

LF Functional length

85 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD04000285

LPR Protruding length

75 mm

LS Shank length

42.5 mm

Name Identifying order number

237609 ER40

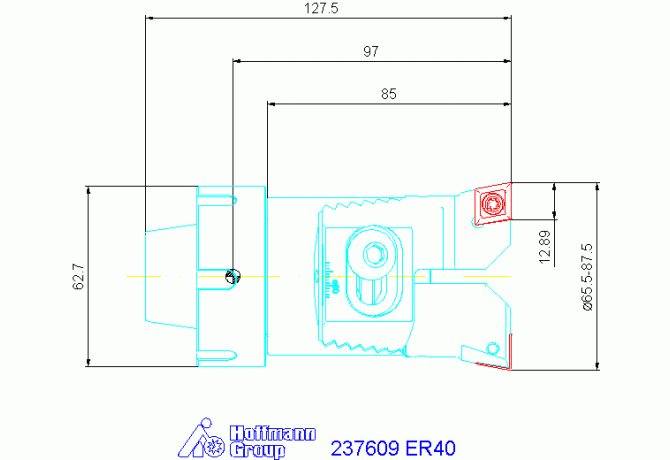

OAL Overall length

127.5 mm

Working process

No working processes available

WT Weight of item

1.707 kg
