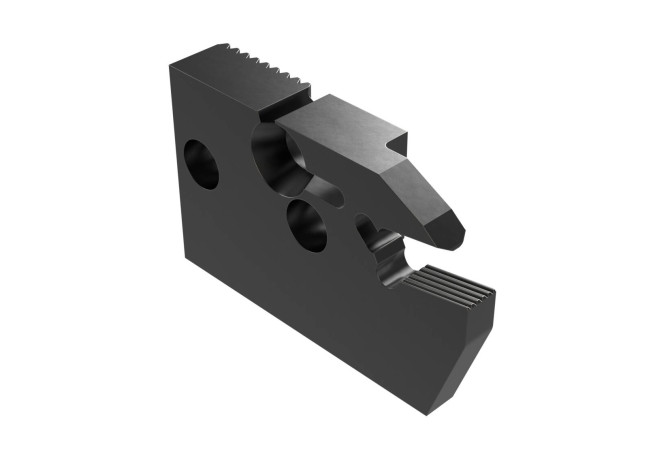

Главная Каталог продукции Toolunited 17 314-00 - Cartridge for indexable insert unspecified V21-CIL1606

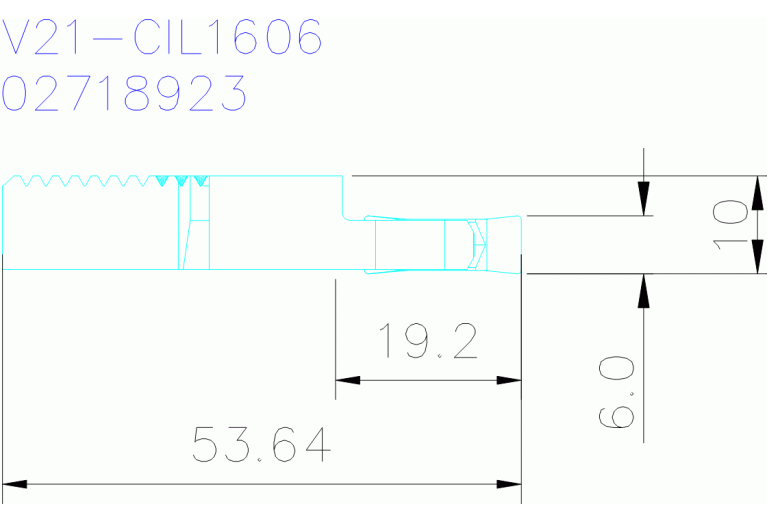

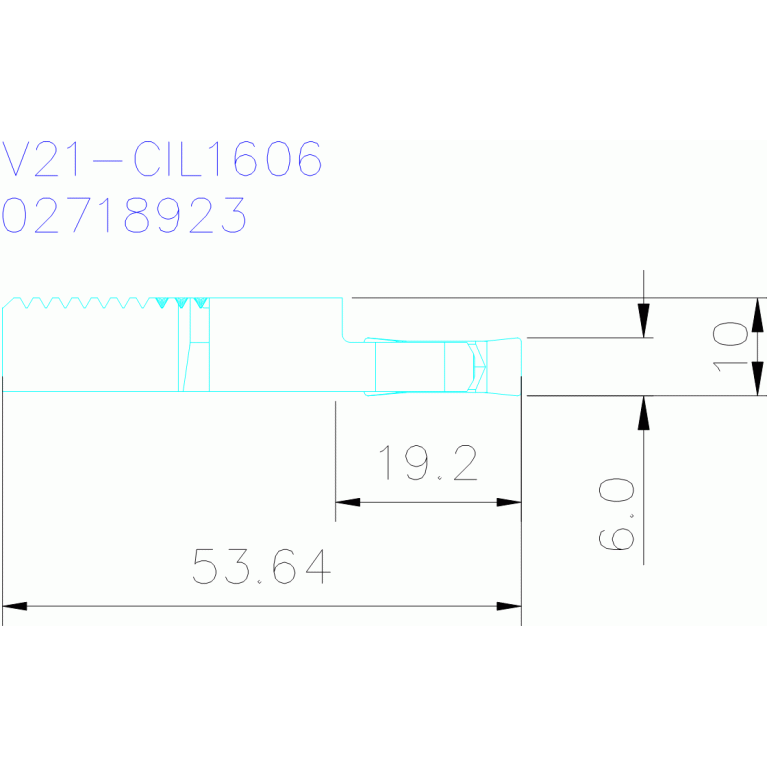

V21-CIL1606

Артикул: 02718923

В наличии

В корзину

Описание

Характеристики

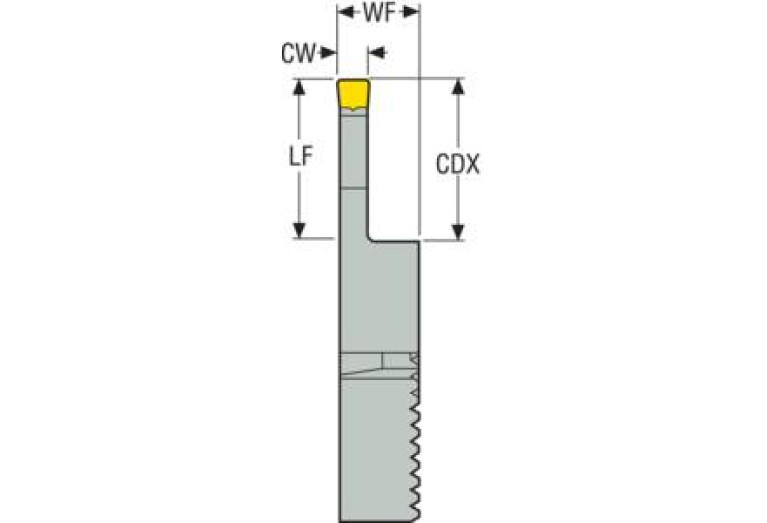

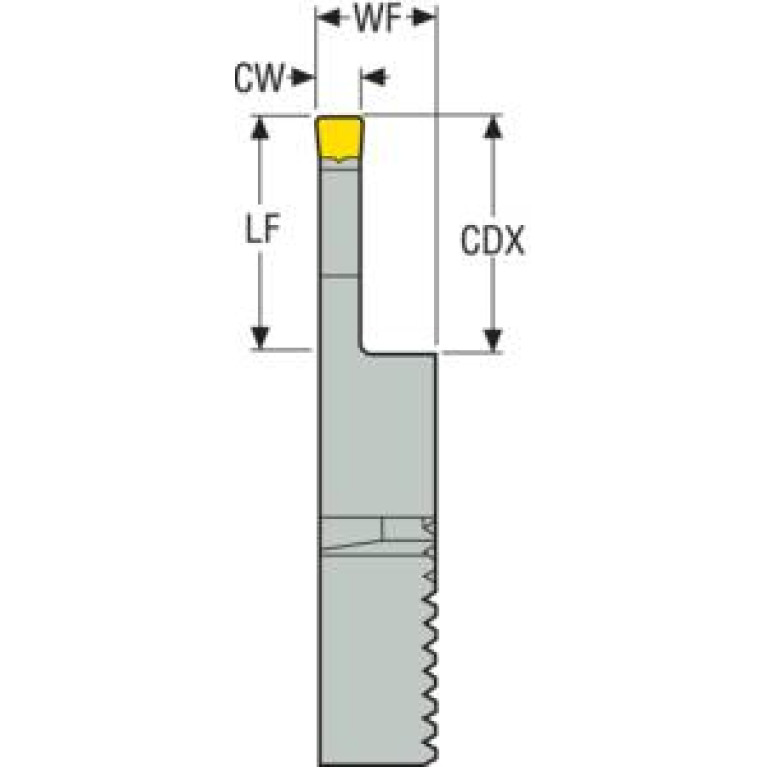

CDX Cutting depth maximum

18 mm

COMPC Company code

SO - SECO Tools

CW Cutting width

6 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN CSW1

LC1606 1N

FamilyProducts

V21-CIL1606

HAND Cutting direction

L - Left

ID Technical product number

02718923

Interface codes

Interface codes CSW1

J41 /

ISYC Subclass

314-00 - Cartridge for indexable insert unspecified

KAPR Tool cutting edge angle

90 Degree

LF Functional length

19.2 mm

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SMS

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

V21-CIL1606

WF Functional width

9.2 mm

Working process

No working processes available

WT Weight of item

0.071 kg
