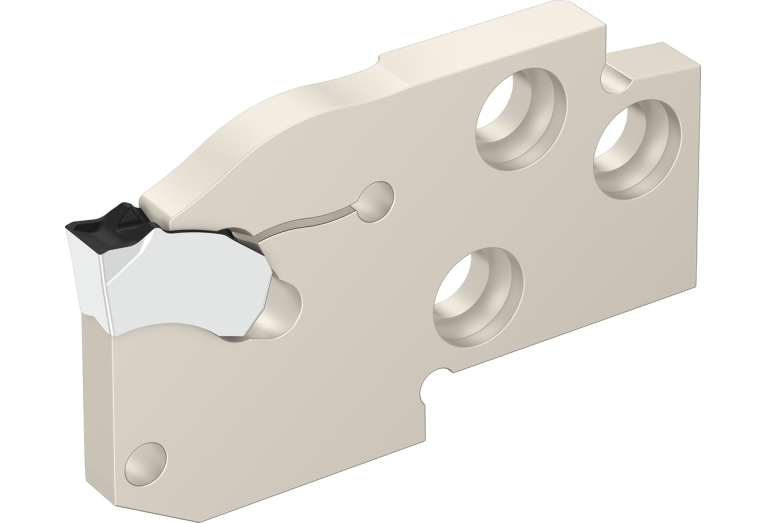

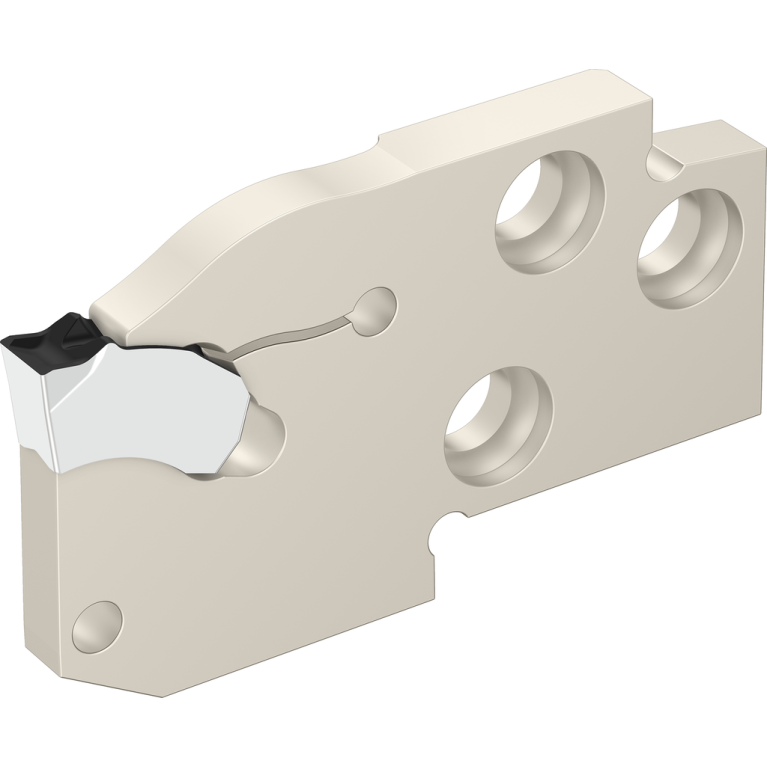

Главная Каталог продукции Toolunited 17 314-00 - Cartridge for indexable insert unspecified G2632-E25R-3T35SX

G2632-E25R-3T35SX

Артикул: 6830509

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

BMC Body material code

S - Solid steel

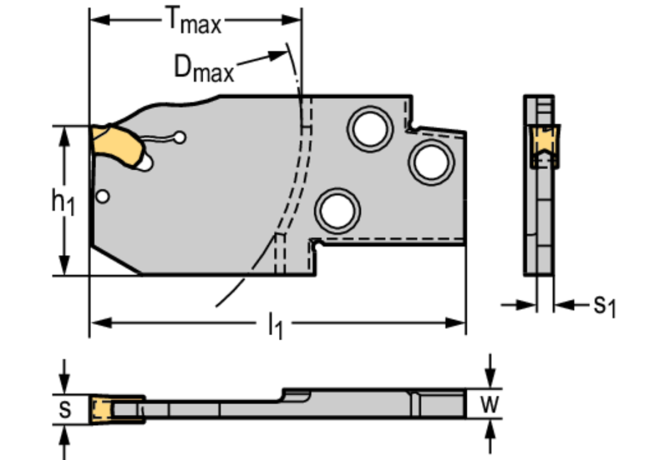

CDX Cutting depth maximum

35 mm

COMPC Company code

W - Walter

CW Cutting width

3 mm

DAXX Axial groove od max

80 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

PMAR0250385

DIN CSW1

W-SX003000*******

FamilyProducts

Grooving module – Radial grooving G2632-E...R/L...-SX

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

R - Right

HF Functional height

20 mm

ID Technical product number

6830509

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

PMA03CR025$$$$

ISO CSW1

WR$$SX003000*******

ISYC Subclass

314-00 - Cartridge for indexable insert unspecified

KAPR Tool cutting edge angle

90 Degree

LAMS Inclination angle

0 Degree

LF Functional length

62.75 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

PMA Prism mounting

LOC-03 CCUMS Unit base

8 non-dimensional size

LOC-03 CZCMS Size code

R025

LOC-03 DCONMS Diameter

25 mm

LOC-03 ISO

PMA03CR025$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

PMAR0250385

LPR Protruding length

31.375 mm

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

G2632-E25R-3T35SX

OAH Overall height

30 mm

OAL Overall length

62.75 mm

THSC Tool holder shape code

G - straight shank design

WB Body width

2.4 mm

Working process

DDA - External turning,DEA - Outer diameter grooving,ESA - Cutting off

WT Weight of item

0.058 kg
