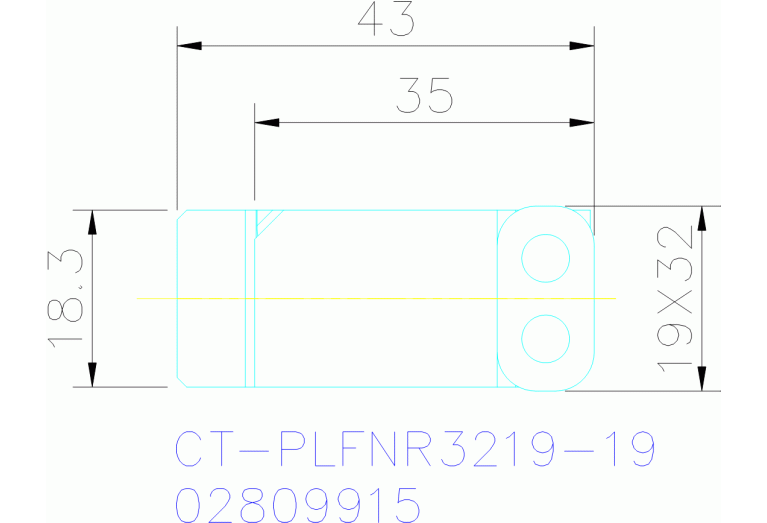

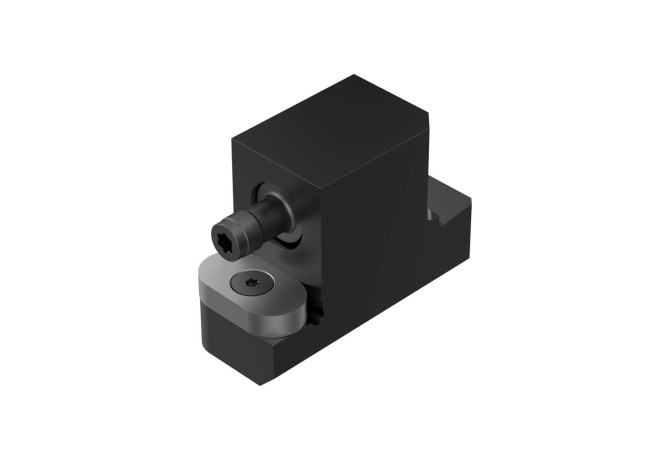

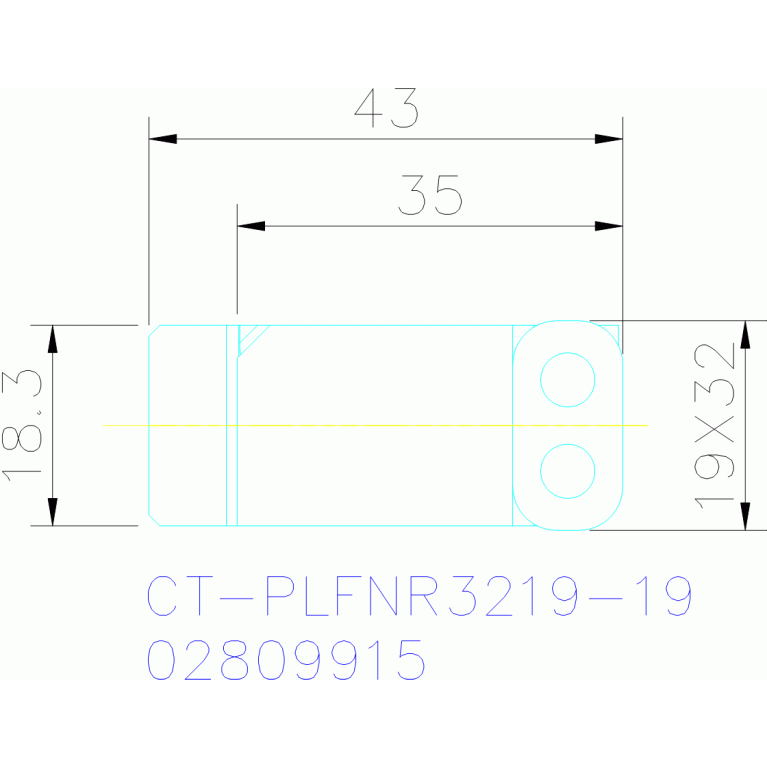

CT-PLFNR3219-19

Артикул: 02809915

В наличии

В корзину

Описание

Характеристики

COMPC Company code

SO - SECO Tools

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN CSW1

LN1919 2N

FamilyProducts

CT-PLFNR3219-19

GAMO Rake angle orthogonal

-6 Degree

HAND Cutting direction

R - Right

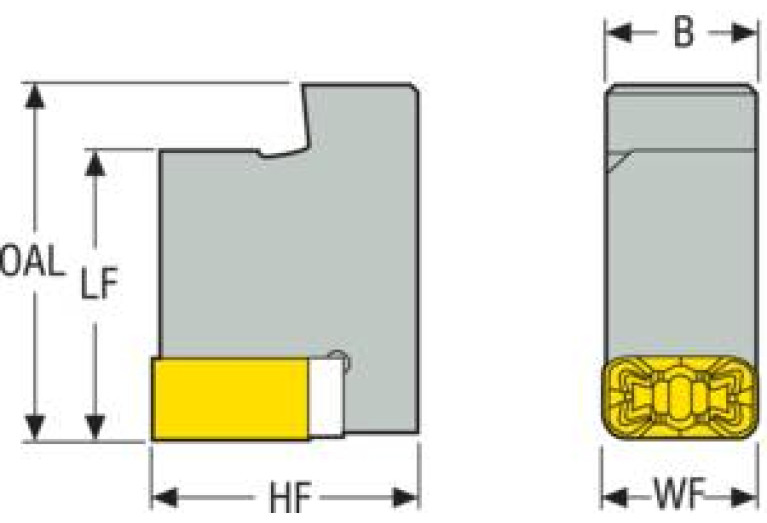

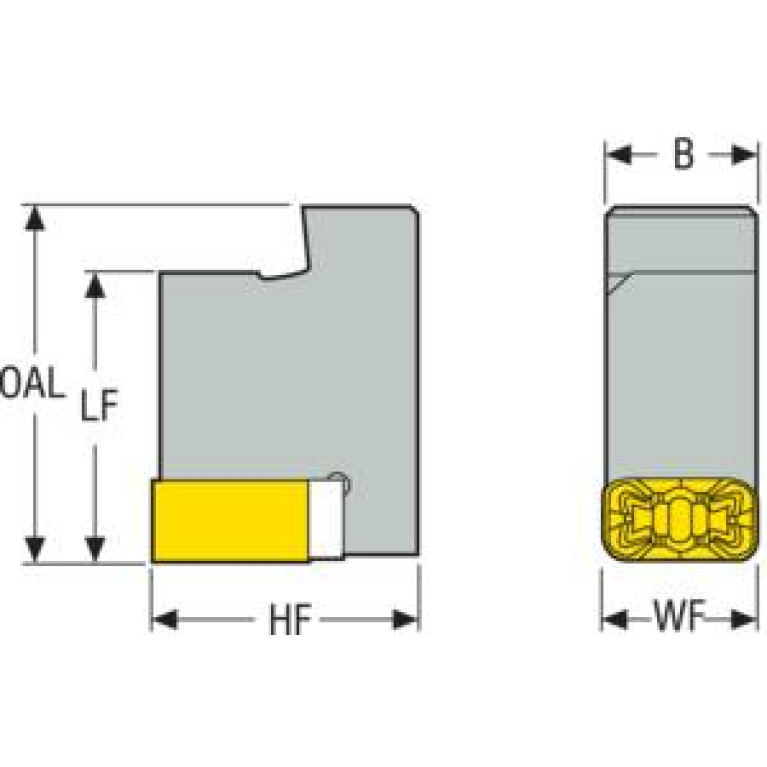

HF Functional height

32 mm

ID Technical product number

02809915

Interface codes

Interface codes CSW1

J41 /

ISYC Subclass

314-00 - Cartridge for indexable insert unspecified

KAPR Tool cutting edge angle

90 Degree

LAMS Inclination angle

-6 Degree

LF Functional length

35 mm

LOC-03 B Shank width

18.25 mm

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MTP Clamping type code

P - Hole clamping, with straight bore

Name Identifying order number

CT-PLFNR3219-19

OAL Overall length

43 mm

WF Functional width

19 mm

Working process

No working processes available

WT Weight of item

0.157 kg
