Главная Каталог продукции СЗЦПК инструмент 17 314-00 - Cartridge for indexable insert unspecified CFZL32ITX2802RRB

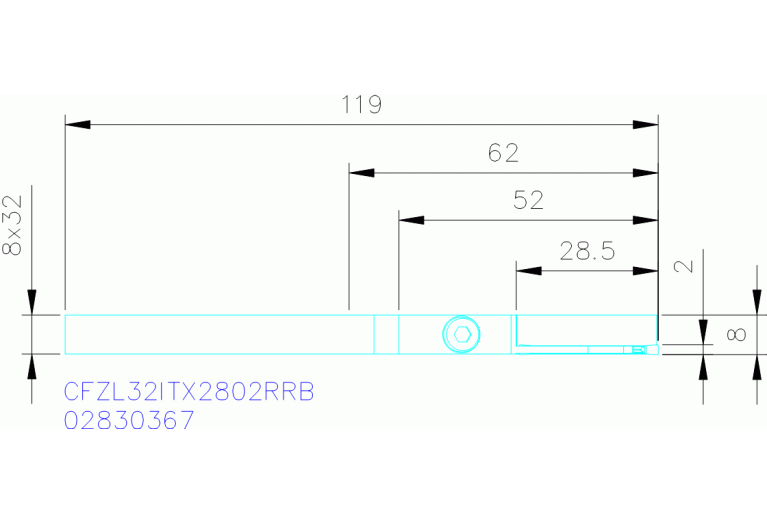

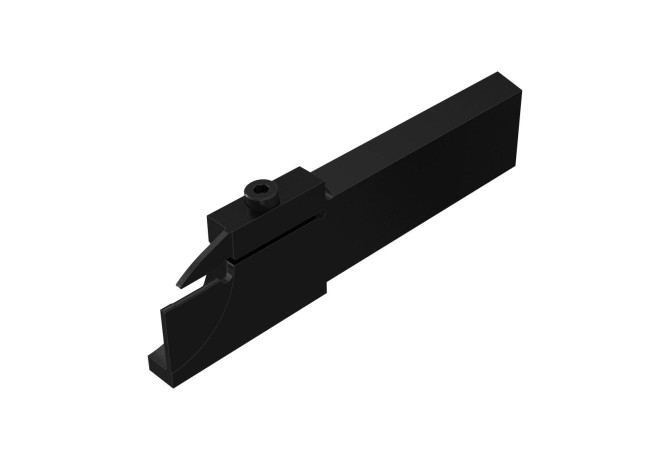

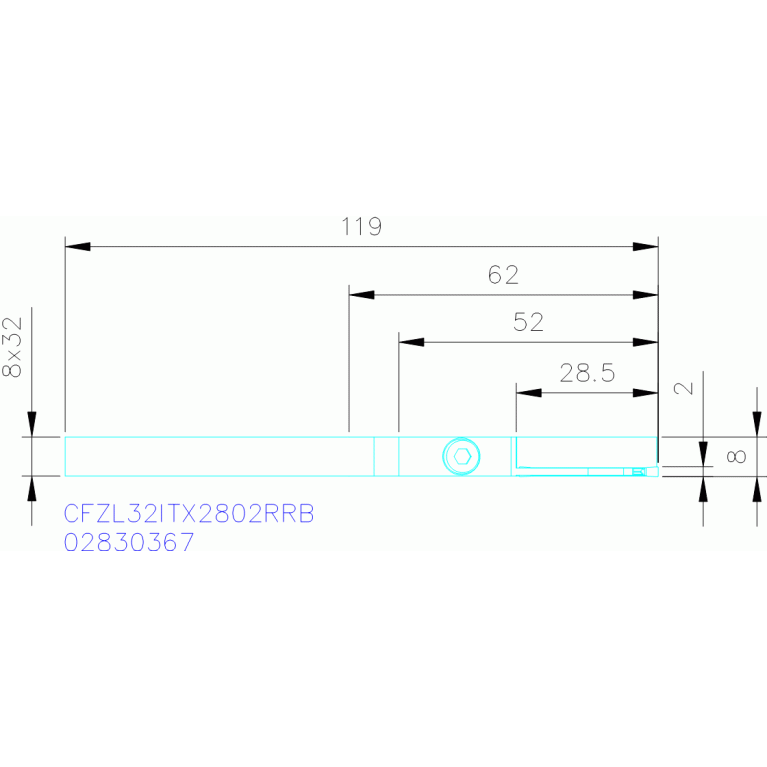

CFZL32ITX2802RRB

Артикул: 02830367

В наличии

В корзину

Описание

Характеристики

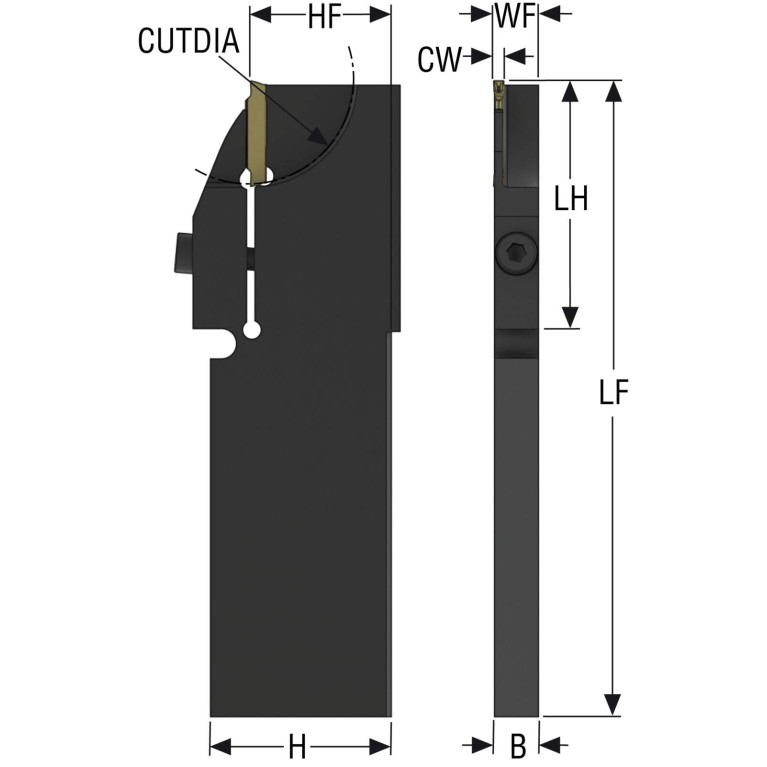

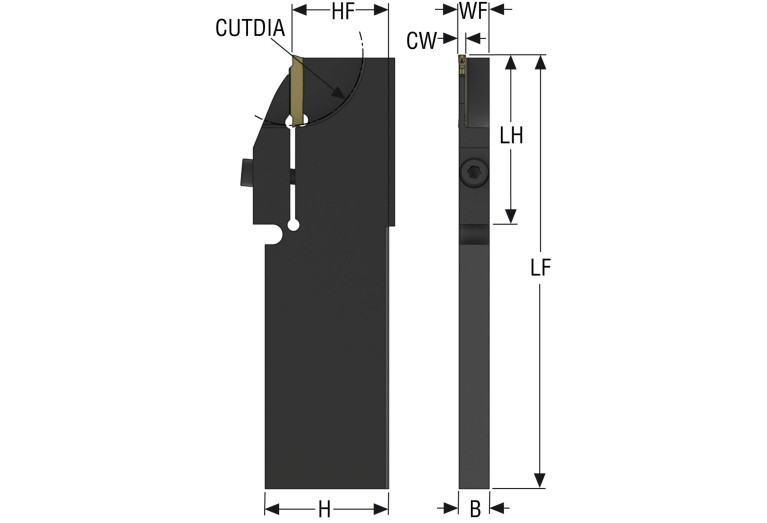

CDX Cutting depth maximum

27 mm

CODX Cut off diameter maximum

54 mm

COMPC Company code

SO - SECO Tools

CW Cutting width

2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN CSW1

LC2802 1L

FamilyProducts

CFZL32ITX2802RRB

HAND Cutting direction

L - Left

HF Functional height

24.5 mm

ID Technical product number

02830367

Interface codes

Interface codes CSW1

J41 /

ISYC Subclass

314-00 - Cartridge for indexable insert unspecified

KAPR Tool cutting edge angle

90 Degree

LF Functional length

119.5 mm

LH Head length

52 mm

LOC-03 B Shank width

7.85 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 H Shank height

31.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

CFZL32ITX2802RRB

WF Functional width

8 mm

Working process

No working processes available

WT Weight of item

0.199 kg
