Главная Каталог продукции СЗЦПК инструмент 17 314-00 - Cartridge for indexable insert unspecified CFKN32-06

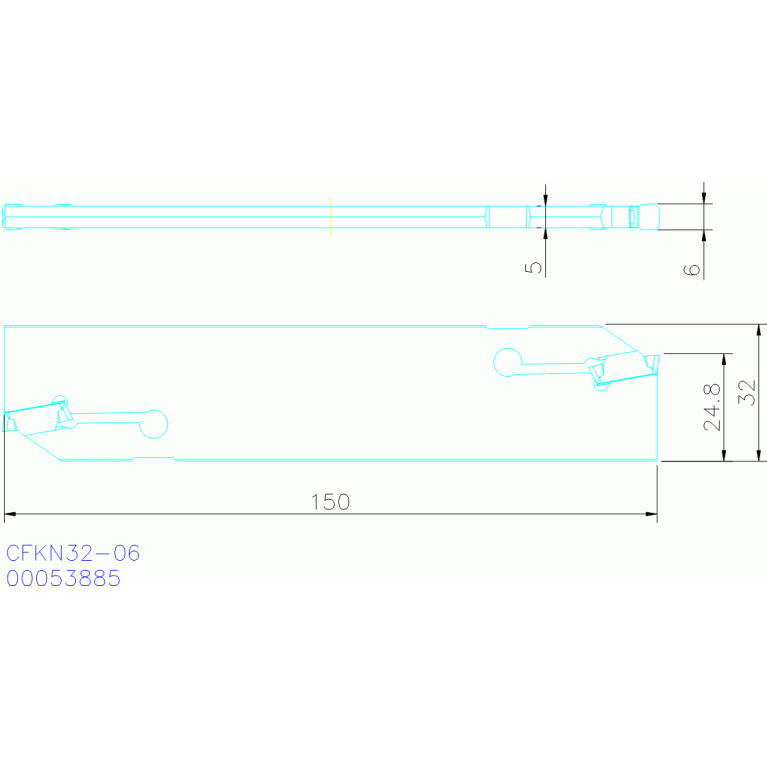

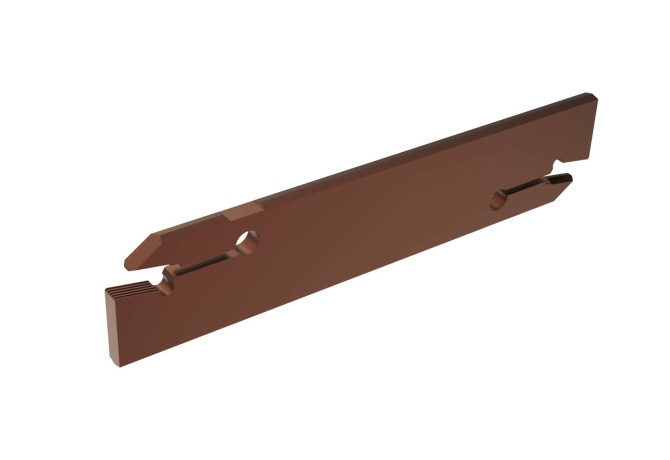

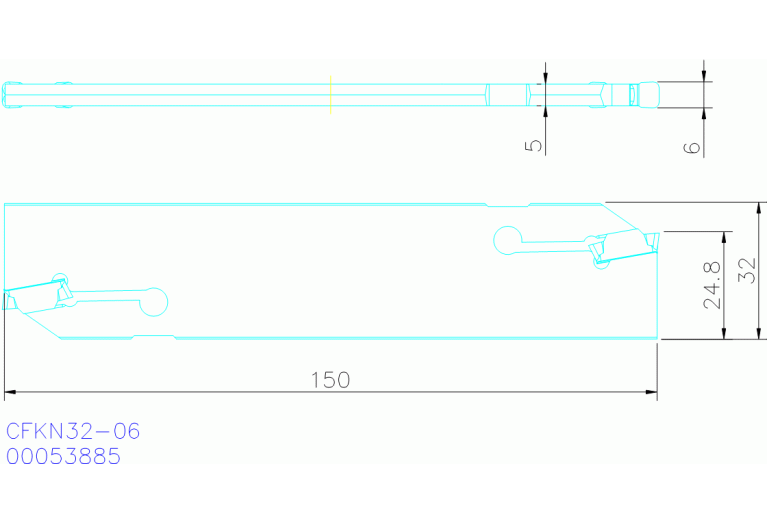

CFKN32-06

Артикул: 00053885

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

24 mm

CODX Cut off diameter maximum

48 mm

COMPC Company code

SO - SECO Tools

CW Cutting width

6 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN CSW1

LC1606 1N

FamilyProducts

CFKN32-06

HAND Cutting direction

N - Neutral

HF Functional height

24.8 mm

ID Technical product number

00053885

Interface codes

Interface codes CSW1

J41 /

ISYC Subclass

314-00 - Cartridge for indexable insert unspecified

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCUMS Connection code unit base

0 Metric

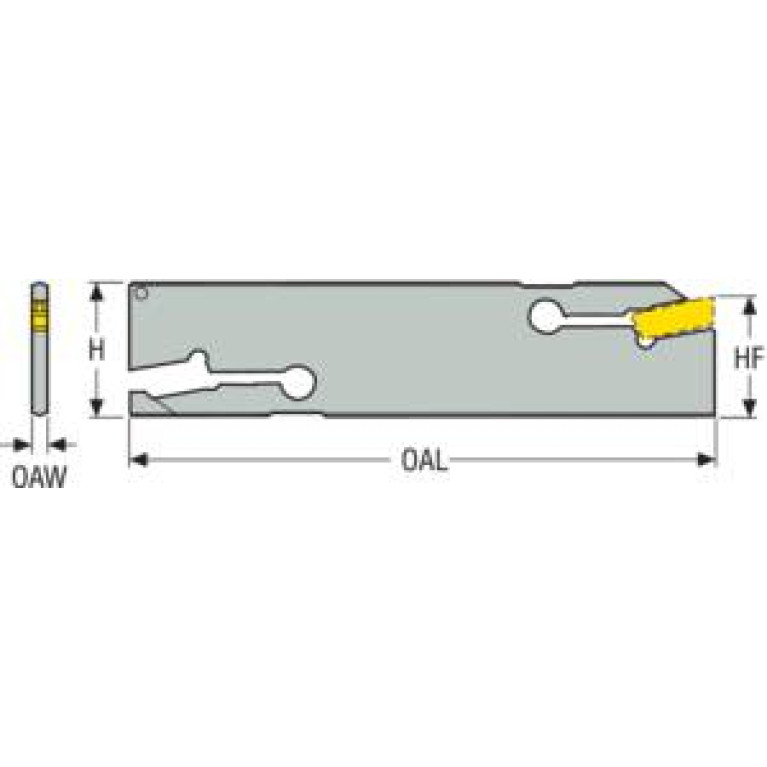

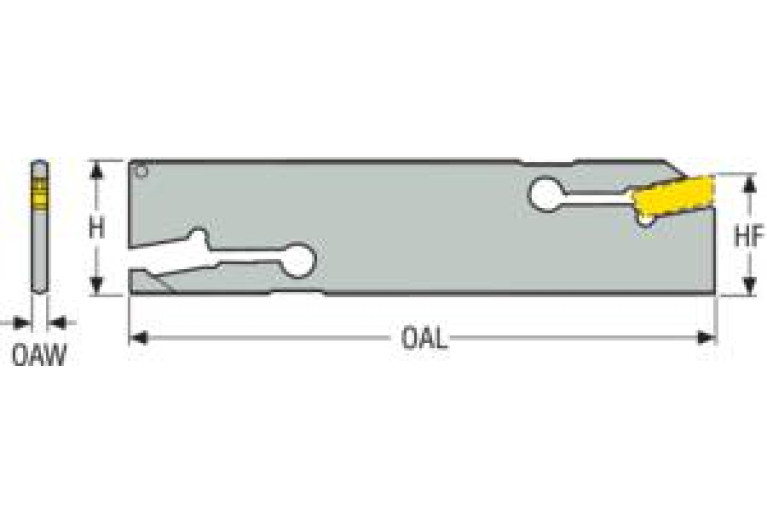

LOC-03 H Shank height

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

CFKN32-06

OAL Overall length

150 mm

OAW Overall width

5 mm

Working process

No working processes available

WT Weight of item

0.164 kg
