Главная Каталог продукции СЗЦПК инструмент 17 314-00 - Cartridge for indexable insert unspecified CFKN-04

CFKN-04

Артикул: 00027198

В наличии

В корзину

Описание

Характеристики

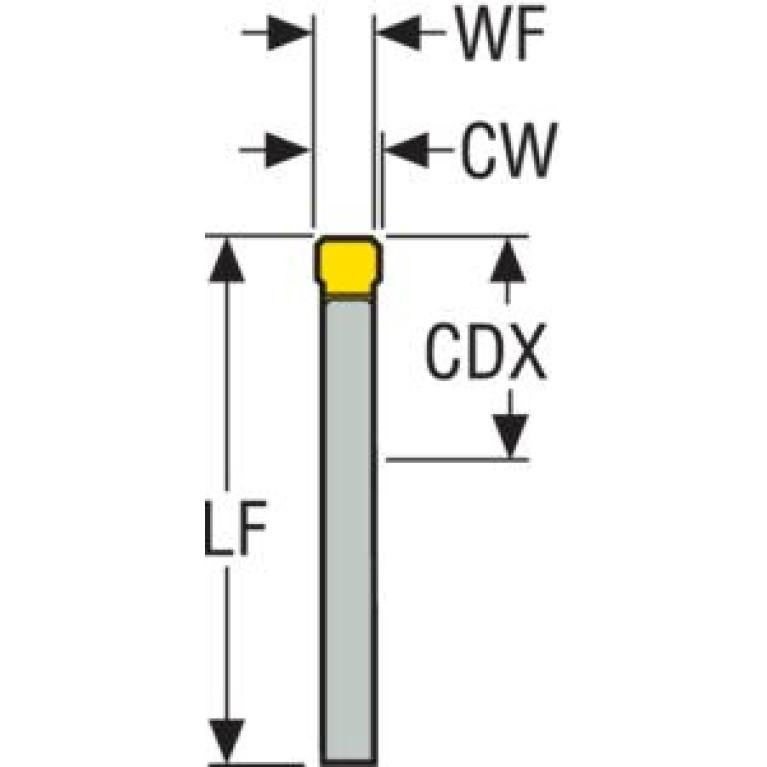

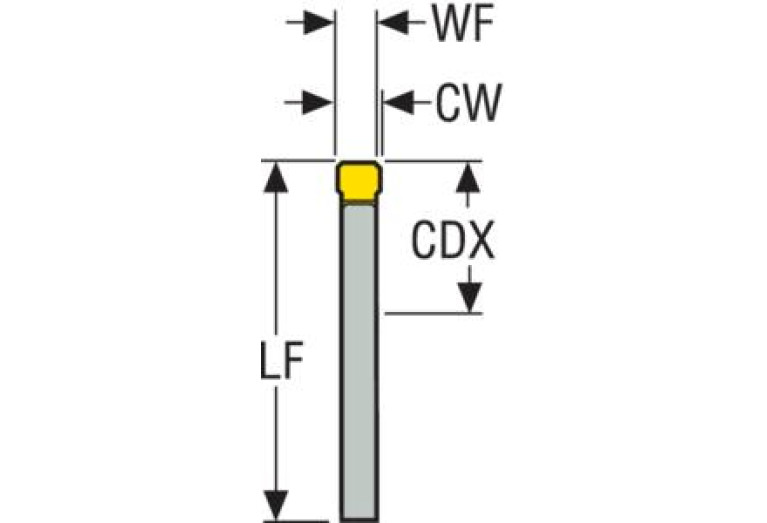

CDX Cutting depth maximum

15 mm

COMPC Company code

SO - SECO Tools

CW Cutting width

4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN CSW1

LC1604 1N

FamilyProducts

CFKN-04

HAND Cutting direction

N - Neutral

ID Technical product number

00027198

Interface codes

Interface codes CSW1

J41 /

ISYC Subclass

314-00 - Cartridge for indexable insert unspecified

KAPR Tool cutting edge angle

90 Degree

LF Functional length

48.6 mm

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

CFKN-04

WF Functional width

3.6 mm

Working process

No working processes available

WT Weight of item

0.02 kg
