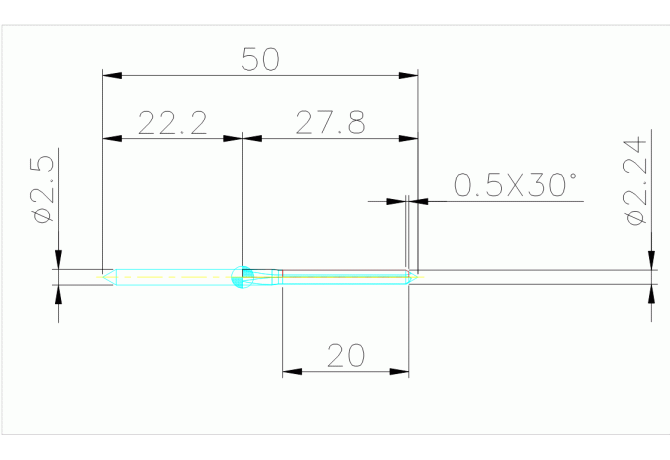

Главная Каталог продукции Toolunited 17 311-01 - Solid cylindrical reamer 8900224

8900224

Артикул: 8900224

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

20 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

OSG

CPDF Cutting pitch differential

0 - Equal

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

2.24 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/1/2025

DH1LD Zu erzeugende Bohrung 1. Stufe unteres Abmaß

0 mm

DH1UD Zu erzeugende Bohrung 1. Stufe oberes Abmaß

0.005 mm

DIN

ZYL00250105

DN Neck diameter

2.24 mm

FamilyProducts

OSG CRM D 2.24

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GEP Guide element property

0 - Without guide elements

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

Interface codes

J6 / J61

ISYC Subclass

311-01 - Solid cylindrical reamer

LDRED Neck length

20.6 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0025

LOC-03 DCONMS Diameter

2.5 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00250105

LPR Protruding length

27.8 mm

LS Shank length

26.8 mm

Materials

P,M,K,N,S,H

Name Identifying order number

8900224

NOF Flute count

OAL Overall length

50 mm

PLANG Plug angle

PLGL Plug length

0.5 mm

RESYC Reaming tool style code

0 - For through-holes and blind holes

TCDCONMS ISO-tolerance class shank diameter

Working process

REI - Cylindrical reaming

WT Weight of item

0.005 kg
