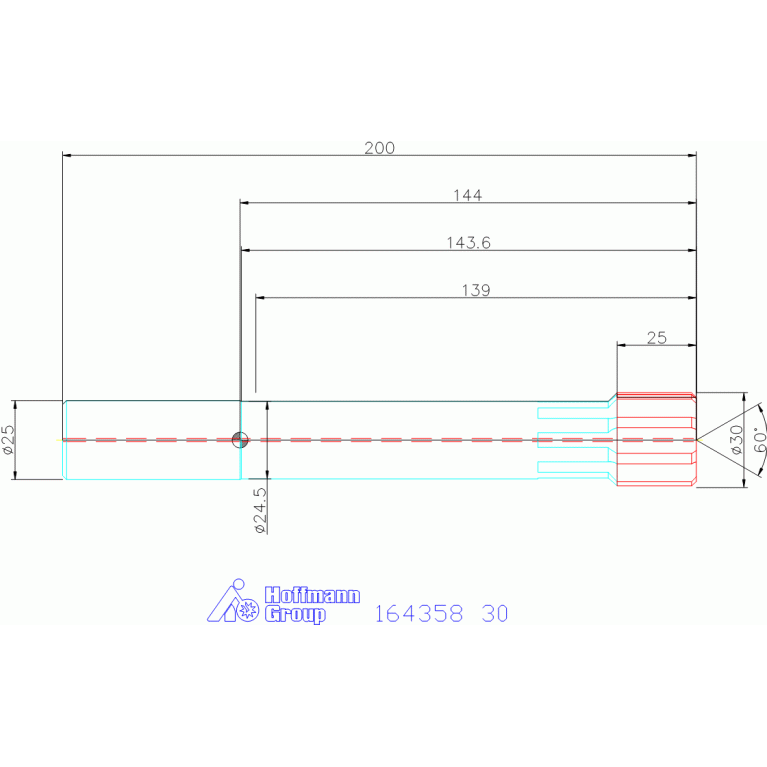

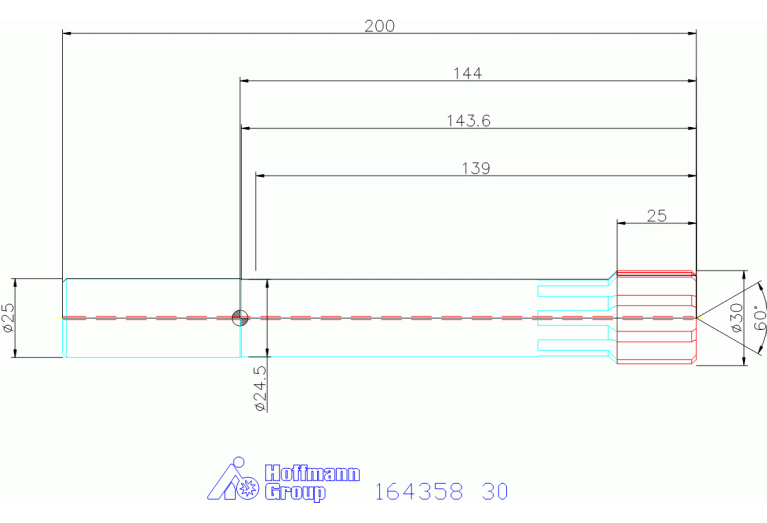

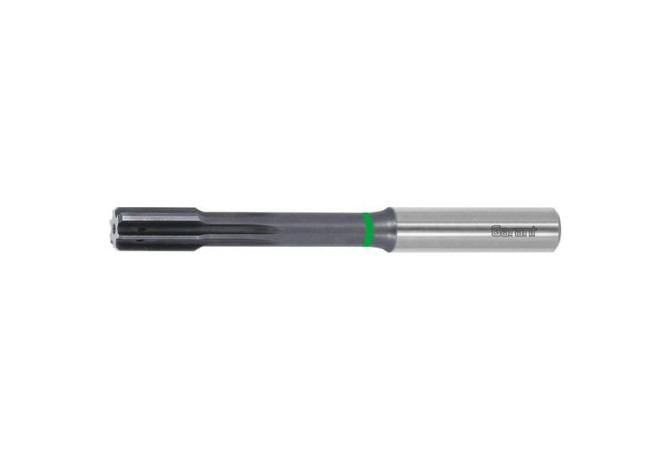

Главная Каталог продукции Toolunited 17 311-01 - Solid cylindrical reamer 164358 30

164358 30

Артикул: 164358 30

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

25 mm

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

ALCRONA PRO

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

2 - With Coolant exit, radial

DC Cutting diameter minimum

30 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL02500115

FamilyProducts

HSS reamer HPC through hole TiAlN

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GRDMFG Grade manufacturers designation

HSS

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LF Functional length

198.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02500115

LPR Protruding length

144 mm

LS Shank length

56 mm

LU Usable length

139 mm

Name Identifying order number

164358 30

NOF Flute count

OAL Overall length

200 mm

PLGL Plug length

1.5 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

REI - Cylindrical reaming

WT Weight of item

0.703 kg
