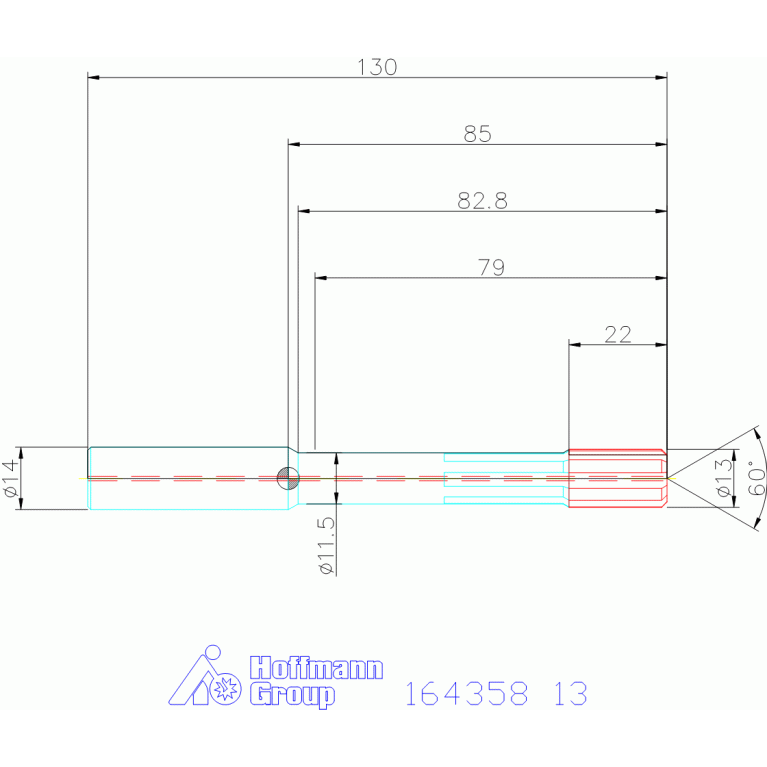

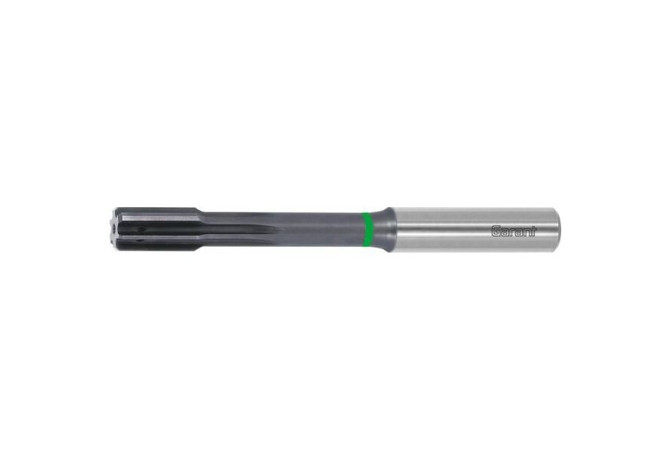

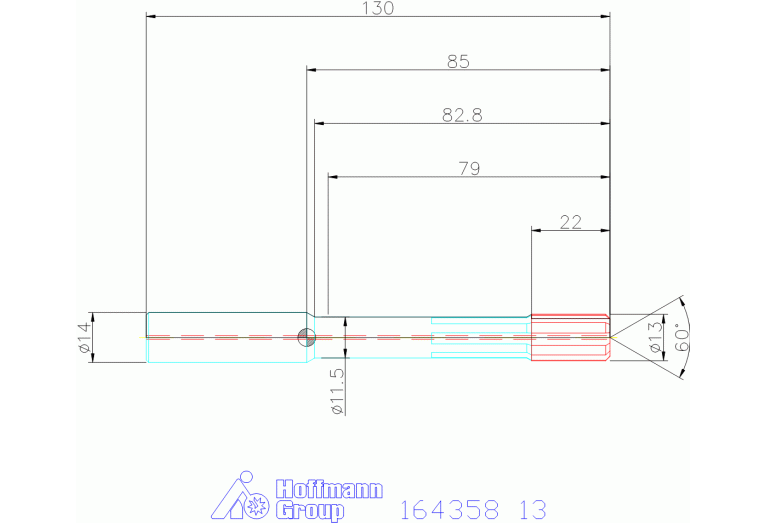

Главная Каталог продукции Toolunited 17 311-01 - Solid cylindrical reamer 164358 13

164358 13

Артикул: 164358 13

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

22 mm

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

ALCRONA PRO

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

2 - With Coolant exit, radial

DC Cutting diameter minimum

13 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL01400115

FamilyProducts

HSS reamer HPC through hole TiAlN

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GRDMFG Grade manufacturers designation

HSS

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LF Functional length

128.8 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0140

LOC-03 DCONMS Diameter

14 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01400115

LPR Protruding length

85 mm

LS Shank length

45 mm

LU Usable length

79 mm

Name Identifying order number

164358 13

NOF Flute count

OAL Overall length

130 mm

PLGL Plug length

1.2 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

REI - Cylindrical reaming

WT Weight of item

0.109 kg
