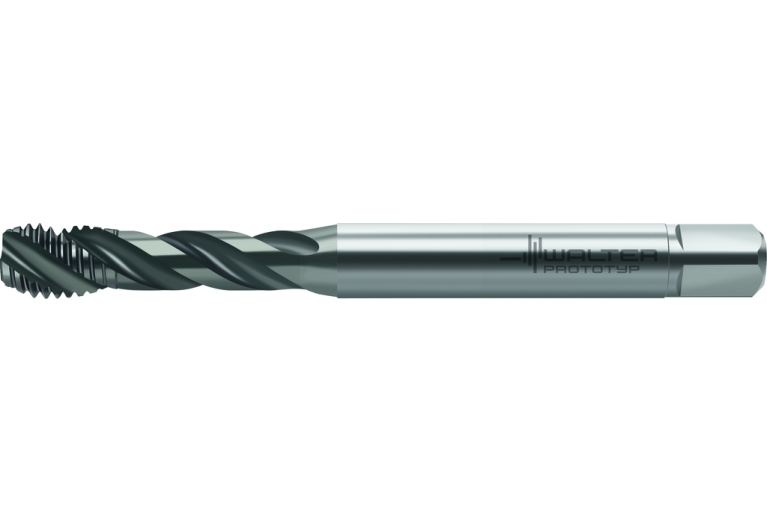

Главная Каталог продукции Toolunited 17 301-02 - Thread cutting tap with reinforced shank TC121-M6-C1-WW60RG

TC121-M6-C1-WW60RG

TC121-M6-C1-WW60RG

TC121-M6-C1-WW60RG

TC121-M6-C1-WW60RG

TC121-M6-C1-WW60RG

TC121-M6-C1-WW60RG

Walter

Артикул: 7240823

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

THL

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL00602115

DN Neck diameter

4.84 mm

FamilyProducts

HSS-E (-PM) machine taps TC121

FHA Flute helix angle

40 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

WW60RG

HAND Cutting direction

R - Right

ID Technical product number

7240823

Interface codes

J6 / J61

ISO

ZYL21F6000h$09

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LDRED Neck length

25 mm

LOC-03 CCFMS Form

21

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$09

LOC-03 ISO

ZYL21F6000h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00602115

LS Shank length

27 mm

Materials

P,M,K,N

Name Identifying order number

TC121-M6-C1-WW60RG

NOF Flute count

3

OAL Overall length

82.5 mm

PLCD Gate diameter

4.95 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

DIN 371

TCDCONMS ISO-tolerance class shank diameter

h9

TCL Tap chamfer length

2.25 mm

TCTR Thread tolerance class

6HX

TD Thread diameter

6 mm

THFT Thread form type

M

THL Thread cutting part length

10 mm

THOD Thread designation

M6x1-6HX

TP Thread pitch

1 mm

TTPID Tap type identifier

1 - Machine tap

Working process

EGI - Threading, internal

WT Weight of item

0.017 kg
