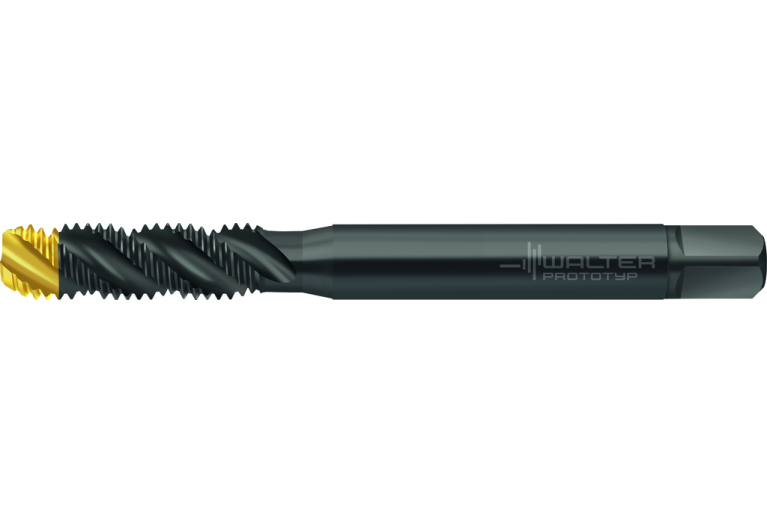

Главная Каталог продукции Toolunited 17 301-02 - Thread cutting tap with reinforced shank TC120-M8-C1-WW60AG

TC120-M8-C1-WW60AG

TC120-M8-C1-WW60AG TC120-M8-C1-WW60AG TC120-M8-C1-WW60AG

TC120-M8-C1-WW60AG

Walter
Артикул: 7263040
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
TiN/vaporisiert
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00802115
DN Neck diameter
6.49 mm
FamilyProducts
HSS-E PM machine taps TC120
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
WW60AG
HAND Cutting direction
R - Right
ID Technical product number
7263040
Interface codes
J6 / J61
ISO
ZYL21F8000h$09
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
35 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21F8000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00802115
LS Shank length
27 mm
Materials
P,N
Name Identifying order number
TC120-M8-C1-WW60AG
NOF Flute count
3
OAL Overall length
90 mm
PLCD Gate diameter
6.69 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 371
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
3.19 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
8 mm
THFT Thread form type
M
THL Thread cutting part length
26.5 mm
THOD Thread designation
M8x1.25-6HX
TP Thread pitch
1.25 mm
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.032 kg
