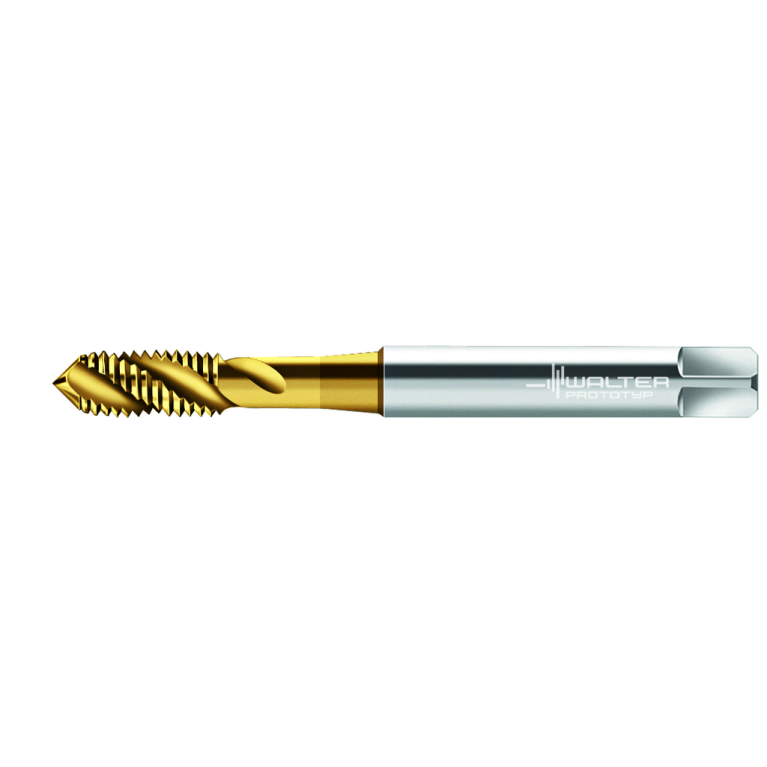

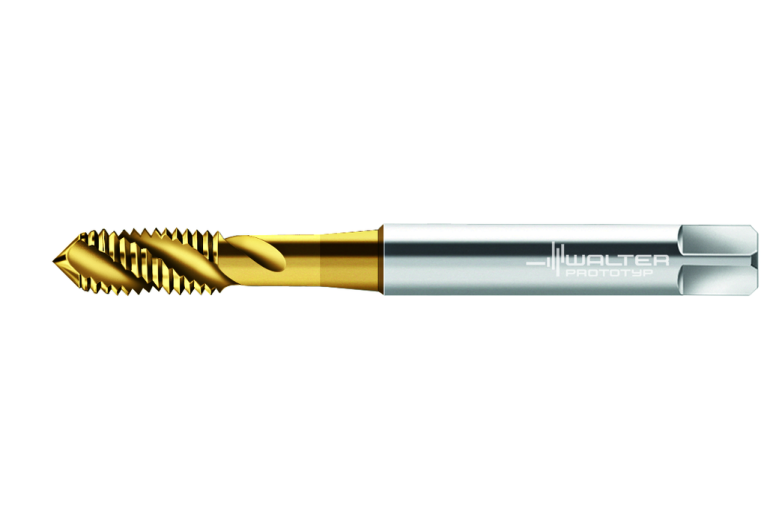

Главная Каталог продукции Toolunited 17 301-02 - Thread cutting tap with reinforced shank TC115-UNC5/16-C0-WY80AA

TC115-UNC5/16-C0-WY80AA

TC115-UNC5/16-C0-WY80AA TC115-UNC5/16-C0-WY80AA TC115-UNC5/16-C0-WY80AA

TC115-UNC5/16-C0-WY80AA

Walter
Артикул: 7305272
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TIN
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00802105
DN Neck diameter
6 mm
FamilyProducts
HSS-E machine taps TC115
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
WY80AA
HAND Cutting direction
R - Right
ID Technical product number
7305272
Interface codes
J6 / J61
ISO
ZYL21F8000h$09
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
35 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21F8000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00802105
LS Shank length
27 mm
Materials
P,M,K,N
Name Identifying order number
TC115-UNC5/16-C0-WY80AA
NOF Flute count
3
OAL Overall length
91.57 mm
PLCD Gate diameter
6.46 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 371
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
3.74 mm
TCTR Thread tolerance class
2B
TDFR Thread diameter nominal fraction
5/16 in
TDIN Thread diameter nominal inch
0.3125 in
THFT Thread form type
UNC
THL Thread cutting part length
12 mm
THOD Thread designation
UNC5/16-18-2B
TPI Threads per inch
18 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.026 kg
