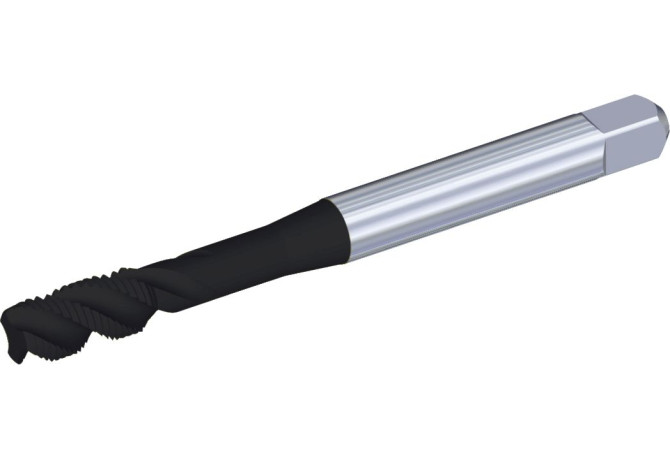

Главная Каталог продукции Toolunited 17 301-02 - Thread cutting tap with reinforced shank T838NF#12-28R2B-D1 KSP39

T838NF#12-28R2B-D1 KSP39

T838NF#12-28R2B-D1 KSP39 T838NF#12-28R2B-D1 KSP39

T838NF#12-28R2B-D1 KSP39

Kennametal
Артикул: 6173274
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
5/15/2017
DIN
ZYL00602115
FamilyProducts
GOtap T838 Spiral-Flute HSS-E Tap
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
KSP39
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
6173274
Interface codes
J6 / J61
ISO
ZYL21F6000h$06
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
30 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 ISO
ZYL21F6000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00602115
Name Identifying order number
T838NF#12-28R2B-D1 KSP39
NOF Flute count
3
OAL Overall length
80 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 371
TCTR Thread tolerance class
2B
TDZ Thread diameter size
12
THFT Thread form type
UNC
THL Thread cutting part length
10 mm
THOD Thread designation
UNC12-28-2B
TPI Threads per inch
28 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
BG - Tapping
