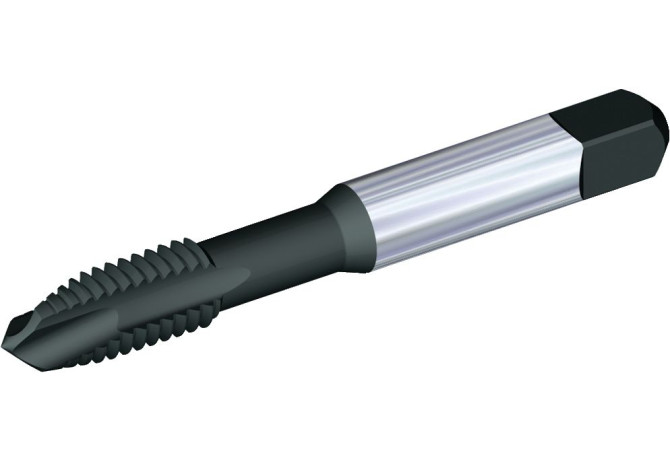

Главная Каталог продукции Toolunited 17 301-02 - Thread cutting tap with reinforced shank T820NC#04-40RH2-A KSMN34

T820NC#04-40RH2-A KSMN34

Артикул: 5455238

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

2 - With Coolant exit, radial

DCP Data chip provision

0 - Without data chip

Delivery state valid from

9/17/2015

DIN

ZYL01412135

FamilyProducts

T820 Spiral Point HSS-E Tap for Through Hole, inch

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GRDMFG Grade manufacturers designation

KSMN34

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

5455238

Interface codes

J6 /

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LDRED Neck length

17.526 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

3 Inch with coolant

LOC-03 CZCMS Connection size code

0141

LOC-03 DCONMS Diameter

3.5814 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01412135

Materials

M,N

Name Identifying order number

T820NC#04-40RH2-A KSMN34

NOF Flute count

OAL Overall length

47.752 mm

PLG Plug style

B - Kappa r 8°

TCTR Thread tolerance class

TDZ Thread diameter size

THFT Thread form type

UNC

THL Thread cutting part length

12.954 mm

THOD Thread designation

UNC4-40-H2

TPI Threads per inch

40 1/in

TTPID Tap type identifier

1 - Machine tap

Working process

BG - Tapping
