Главная Каталог продукции Toolunited 17 301-02 - Thread cutting tap with reinforced shank T820NC03750-16RH3-A KSMN34

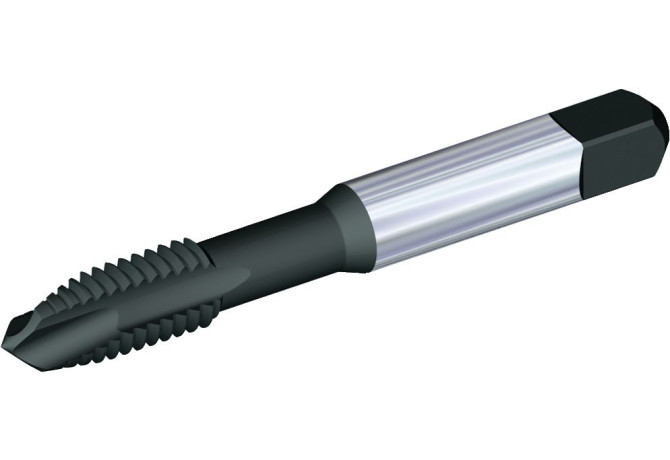

T820NC03750-16RH3-A KSMN34

T820NC03750-16RH3-A KSMN34 T820NC03750-16RH3-A KSMN34

T820NC03750-16RH3-A KSMN34

Kennametal
Артикул: 5416898
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
2 - With Coolant exit, radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
9/17/2015
DIN
ZYL03812135
FamilyProducts
T820 Spiral Point HSS-E Tap for Through Hole, inch
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
KSMN34
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
5416898
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
32.258 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
0381
LOC-03 DCONMS Diameter
9.6774 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03812135
Materials
M,N
Name Identifying order number
T820NC03750-16RH3-A KSMN34
NOF Flute count
3
OAL Overall length
74.676 mm
PLG Plug style
B - Kappa r 8°
TCTR Thread tolerance class
H3
TDFR Thread diameter nominal fraction
3/8 in
THFT Thread form type
UNC
THL Thread cutting part length
19.05 mm
THOD Thread designation
UNC3/8-16-H3
TPI Threads per inch
16 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
BG - Tapping
